A question about architecture

[StJava]

Godot Version

4.6.3

Question

I have a similar question but basically cause I am doing a gamejam, it shall give away what I am building

But the question is say you have a mystery box in Mario, u can

1. Give a coin
2. Give a mushroom
3. Give a feather
4. Give a star
5. Give a fire flower

How would u design it?

Would u just duplicate the box like 5 times and just write custom code in each one?

What if you had say, 100 items u wanted to disburse?

Saying this cause I destroyed myself over thinking abit from something working although I kinda have a mess where I am doing abit of both now XD

[dragonforge-dev]

In a meeting at the moment, but here’s what I just refactored for a game yesterday. I can answer questions in an hour or so.

@tool
class_name Pickup extends Area2D

@export var pickup_scene: PackedScene
@export var pickup_sound_stream: AudioStream
@export var pickup_sound_volume_db: float = 0.0
@export var display_size: Vector2 = Vector2(0.5, 0.5)

var pickup: Sprite2D
var is_collected: bool = false

@onready var collision_shape_2d: CollisionShape2D = $CollisionShape2D
@onready var audio_stream_player_2d: AudioStreamPlayer2D = $AudioStreamPlayer2D


func _ready() -> void:
	pickup = pickup_scene.instantiate()
	add_child(pickup)
	pickup.display(Vector2(0,0), display_size)
	body_entered.connect(_collect_item)
	if pickup_sound_stream:
		audio_stream_player_2d.stream = pickup_sound_stream
		audio_stream_player_2d.volume_db = pickup_sound_volume_db


# Save that the player has already picked this up.
func save_node() -> bool:
	return is_collected


# This pickup has already bee collected. Remove it.
func load_node(collected: bool) -> void:
	if collected:
		queue_free()


func _collect_item(body: Node2D) -> void:
	if audio_stream_player_2d.stream:
		audio_stream_player_2d.play()
	collision_shape_2d.set_deferred("disabled", true)
	body.add_item(pickup_scene)
	is_collected = true
	Disk.save_game()
	remove_child.call_deferred(pickup)
	if audio_stream_player_2d.playing:
		await audio_stream_player_2d.finished
	queue_free()

@tool
class_name HealingPotion extends Sprite2D

@export var healing_amount := 1.0
@export var ability_display_scale: Vector2 = Vector2(0.5, 0.5)
@export var sound_effect: AudioStream


# Use
func use(player: Player) -> void:
	Sound.play_sound_effect(sound_effect)
	player.heal(healing_amount)


## Setup this instance of the ThrownWeapon as a display item for the UI.
func display(bounds: Vector2, display_scale: Vector2 = ability_display_scale) -> void:
	position += bounds / 2
	scale = scale * display_scale

[StJava]

Thanks dragonforge.

In the end my solution was similar for some parts. I now know why people always extract the stats or such objects to the scene.

They wanna avoid scene inheritance and duplicating it XD

The more advanced question actually is as a practice also, how do u exactly imagine how something would look like for example, if the sprite path is loaded in the resource file for rotation of players.

I could imagine this being done for pots, but if it is done this way, the editor doesn’t refresh when u drag it in or show a blank square. Do u have any advice on that?

[dragonforge-dev]

@StJava

I now know why people always extract the stats or such objects to the scene.

They wanna avoid scene inheritance and duplicating it XD

Yup. And if you look at my solution, you can avoid scene inheritance. I use it specifically so that I can do two things:

1. Add the same thing over and over in a level without having to copy and paste the original. It’s IMO the scene version of avoiding magic strings or magic numbers. I hard code the item in an inherited scene so that I change the scene at the base scene level, and the specific defaults at the individual scene level. Any changes I make in the level are much easier to spot.
2. I can drop any scene as loot on the screen. I used to have a separate drop.gd scene that was almost identical. (The result of a time limit in a game jam.) But I was able to refactor it, and then just attach a pickup scene to an enemy as loot. If I didn’t have a scene to load, I’d have to add a Resource to be able to edit those instances in the Inspector.

But that was an implementation choice that is divorced completely from the code.

@StJava

The more advanced question actually is as a practice also, how do u exactly imagine how something would look like for example, if the sprite path is loaded in the resource file for rotation of players.

I could imagine this being done for pots, but if it is done this way, the editor doesn’t refresh when u drag it in or show a blank square. Do u have any advice on that?

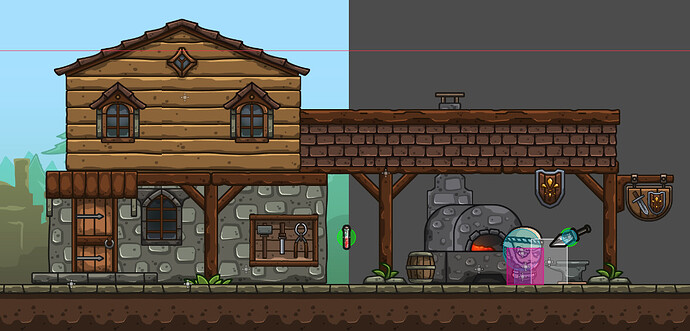

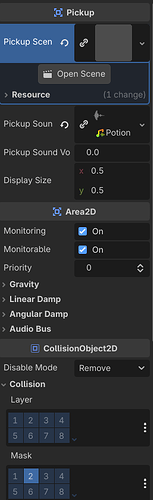

I actually addressed that problem in my example above. In the original version, my editor looked like this:

You couldn’t see what each item was in the editor. You could only see it in the game. So I made it a @tool script so I could see it all the time.
