Best practice to instantiate nodes with inherited classes

[ash]

Godot Version

4.2.1

Question

I’m building a 2D hex based game using Godot Script. There will be multiple hex types, each with its own behaviour. I was able to make this work with some advice and experimenting, but I still don’t understand why.

Fair warning, this is going to be a long one

My original implementation was:

Create a single ‘hex_tile’ scene which will provide a sprite and a collision2D nodes

A ‘HexTile’ class which implements shared game logic. I did not attach this class to the ‘hex_tile’ scene.

class_name HexTile extends Area2D

@onready var hex_sprite = $HexSprite
# Hex cube coordinates
@export var coordinate_x : int = 0
@export var coordinate_z : int = 0
@export var coordinate_y : int = 0

func _input_event(viewport: Node, event: InputEvent, shape_idx: int) -> void:
    if event.is_action_pressed("mouse_left_click"):
        print_my_coordinates()

func set_hex_position(_position: Vector2):
    position = _position

func set_hex_cube_coordinates(row_index: int, column_index: int):
    coordinate_x = row_index
    coordinate_z = column_index
    coordinate_y = - coordinate_x - coordinate_z

func set_texture(texture_path: String):
    hex_sprite.Texture = load("res://" + texture_path)

func print_my_coordinates():
    print("Cube coordinates: " + str(coordinate_x)
    + ", " + str(coordinate_y) + "; " + str(coordinate_z))

A specific class for each type of hex. This class will inherit from the generic ‘HexTile’ class

class_name HexTileForest extends HexTile

    func print_my_coordinates():
        print("I am a forest tile")
        super.print_my_coordinates()

An empty level. I instantiate each tile and assign to it the appropriate script and texture depending on its type.

class_name Level extends Node2D

    func _ready():
        # Initialise hex tile via code
        var hex_tile_scene: PackedScene = load("res://hex_tile.tscn")
        var new_hex_tile = hex_tile_scene.instantiate()
        add_child(new_hex_tile)
        new_hex_tile.set_script(load("res://hex_tile_forest.gd"))
        new_hex_tile.set_texture("hex_tile_forest.png")
        new_hex_tile.set_hex_position(Vector2(100, 200))
        new_hex_tile.set_hex_cube_coordinates(0,1)

I’m getting this error in hex_tile.set_texture:
Invalid set index ‘Texture’ (on base: ‘Nil’) with value of type ‘CompressedTexture2D’.

This means that the tile instance is not set properly, the ‘hex_sprite’ call returns null.
There are some interesting things to see in the inspector in run time:

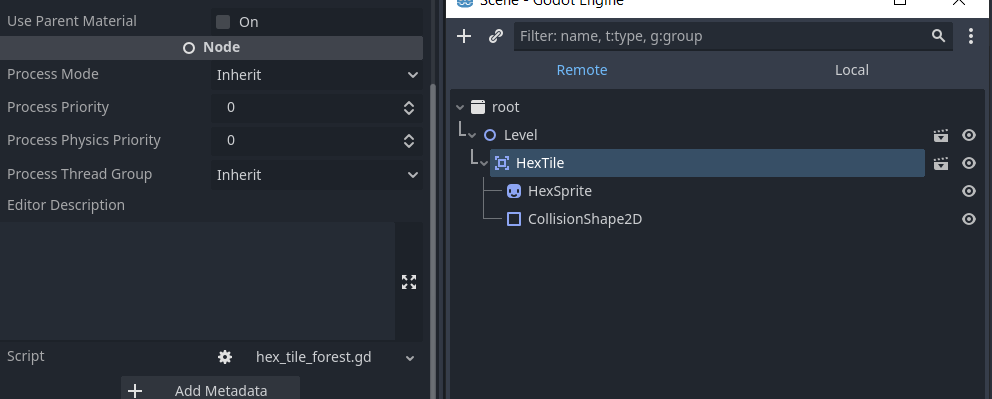

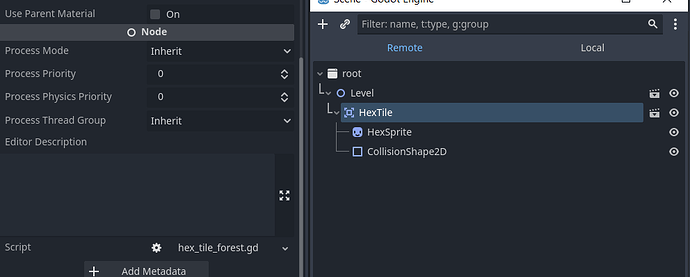

The script is assigned as expected:

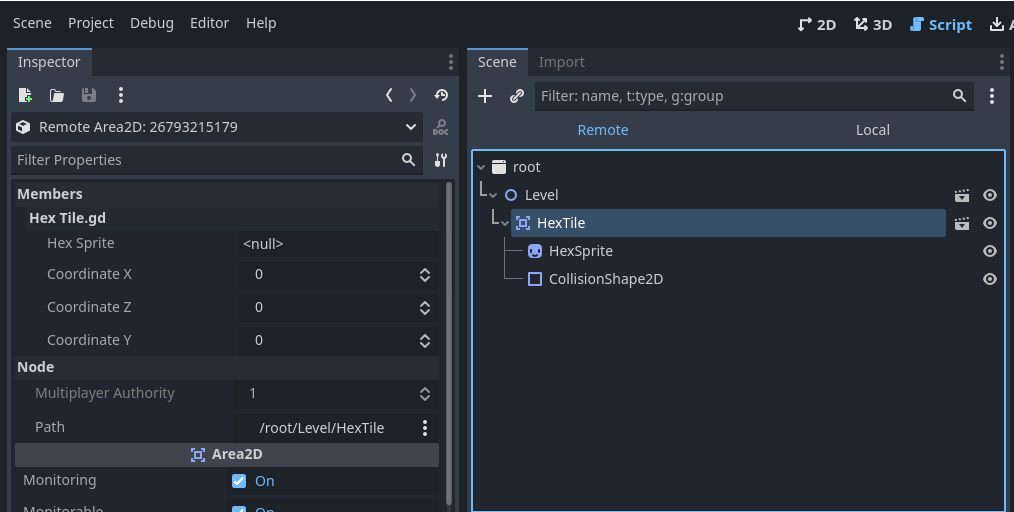

‘hex_sprite’ is null as expected.

I figured this has to do with the order of initialization. I tried assigning the script to the hex instance before it’s added as a child, with the same result.

Next step
Following up on advice I moved the initialisation code from level._ready() to level._init(). I see the same result as before. It occurred to me that perhaps variable hex_sprite is only available for use in _ready() because of the keyword:

@onready var hex_sprite = $HexSprite

There’s no @oninit keyword, so I’ll leave this as is for now.

I injected print statements in _ready() and _init() functions for all three classes to try and understand the order in which they happen:

level is initialized
forest tile is initialized
hex tile is
initialized forest tile is ready
hex tile is ready
Level is ready

Finally, I broke off the code in Level between _ready() and _init():

class_name Level extends Node2D

func _ready():
    var new_hex_tile = get_child(0)
    new_hex_tile.set_texture("hex_tile_forest.png")
    new_hex_tile.set_hex_position(Vector2(100, 200))
    new_hex_tile.set_hex_coordinates(0,1)

func _init():
    var hex_tile_scene: PackedScene = load("res://hex_tile.tscn")
    var new_hex_tile = hex_tile_scene.instantiate()
    new_hex_tile.set_script(load("res://hex_tile_forest.gd"))
    add_child(new_hex_tile)

This works but left me confused. Obviously, _init() is executed ahead of _ready(). Why is the code working when split? In both cases, I was accessing hex_sprite from _ready(). Hopefully it’s not a race condition.

Finally
I updated class HexTileI removed the declaration:

class_name HexTile extends Area2D

# This is removed: @onready var hex_sprite = $HexSprite
var hex_sprite
# Hex cube coordinates
var coordinate_x : int = 0
var coordinate_z : int = 0
var coordinate_y : int = 0

.
.
.All functions remain the same

func _init():
	hex_sprite = $HexSprite

And updated level class, all initialisation is done in _init():

func _init():
	var hex_tile_scene: PackedScene = load("res://hex_tile.tscn")
	var new_hex_tile = hex_tile_scene.instantiate()
	new_hex_tile.set_script(load("res://hex_tile_forest.gd"))
	add_child(new_hex_tile)
	new_hex_tile.set_texture("hex_tile_forest.png")
	new_hex_tile.set_hex_position(Vector2(100, 200))
	new_hex_tile.set_hex_coordinates(0,1)

I’d really appreciate an explanation on why it happening under the hood or a reference to an article that covers this in details.

[zdrmlpzdrmlp]

@ash

Why is the code working when split?

_init is called when an Object is constructed, for Scene, it will call the _init() function when you .instantiate() it
meanwhile
_ready is called when a node added as a child of other node, in other words, it’s not an orphan node anymore
so when you .instantiate a Node inherited type class node, it actually became an Orphan Node first, then when you add_child(the_node), it has a parent and owner.

@ash

Hopefully it’s not a race condition.

so this is not about a race condition. _init() should be triggered on any node no matter what first when you try to instantiate() the scene/node, then the _ready() only triggered if the node entered the main scene tree as a child of some other node

about this error:

@ash

I’m getting this error in hex_tile.set_texture:
Invalid set index ‘Texture’ (on base: ‘Nil’) with value of type ‘CompressedTexture2D’.

the hex_sprite since it’s @onready variable,

@ash

func set_texture(texture_path: String):
    hex_sprite.Texture = load("res://" + texture_path)

if this Area2D node :

@ash

class_name HexTile extends Area2D

never got actually added child first, the hex_sprite node will remain null

[ash]

Thank you, that does bring some order into the mess. The one thing I’m still not sure about is why splitting the code worked.

[zdrmlpzdrmlp]

this could be just, hex_sprite node is not yet added when you just add_child new_hex_tile, maybe you can try add something like/change it to:

@ash

func _ready():
        # Initialise hex tile via code
        var hex_tile_scene: PackedScene = load("res://hex_tile.tscn")
        var new_hex_tile = hex_tile_scene.instantiate()
        add_child(new_hex_tile)
        new_hex_tile.set_script(load("res://hex_tile_forest.gd"))
        new_hex_tile.set_texture("hex_tile_forest.png")
        new_hex_tile.set_hex_position(Vector2(100, 200))
        new_hex_tile.set_hex_cube_coordinates(0,1)

func _ready():
        # Initialise hex tile via code
        var hex_tile_scene: PackedScene = load("res://hex_tile.tscn")
        var new_hex_tile = hex_tile_scene.instantiate()
        add_child(new_hex_tile)
        await get_tree().physics_frame
        new_hex_tile.set_script(load("res://hex_tile_forest.gd"))
        new_hex_tile.set_texture("hex_tile_forest.png")
        new_hex_tile.set_hex_position(Vector2(100, 200))
        new_hex_tile.set_hex_cube_coordinates(0,1)

see if it will work

[ash]

Interesting. This solution does imply that there is a race condition between set_script and the initialization of the hex_sprite node. It makes sense.

[indicainkwell]

This is a matter of initialization order and a typo. No race conditions are present.

Order Matters

The following expands on what @zdrmlpzdrmlp was talking about.

Simple Flow

Keep this flow in mind:

1. _init()
2. add to scene tree
3. _ready()
4. idle

Review node’s scene tree callbacks.

Bad Flow

func _ready():
	var scene = load("some.tscn")
	var instance = scene.instantiate()
	add_child(instance)
	instance.set_script(load("some.gd"))

In the above snippet the flow looks like this:

1. instance._init()
2. add instance to scene tree
3. instance._ready()
4. instance.set_script(...)
5. instance._init(), for new script.
6. idle

Notice how the instance’s _ready() is not called with the new script.

Good Flow

Now, when you flip the following two lines:

instance.set_script(load("some.gd"))
add_child(instance)

The flow becomes:

1. instance._init()
2. instance.set_script(...)
3. instance._init(), for new script.
4. add instance to scene tree
5. instance._ready()
6. idle

Now, the new script has been initialized, added to the scene tree, and its subtree
is ready.

Conclusion

This is the desired flow for your new_hex_tile. Since
new_hex_tile.set_texture(...) accesses the onready $HexSprite child node,
set_texture(...) must be called after HexTile._ready().

The result should look like:

class_name Level extends Node2D

func _ready():
	# Initialise hex tile via code
	var hex_tile_scene: PackedScene = load("res://hex_tile.tscn")
	var new_hex_tile = hex_tile_scene.instantiate()
	new_hex_tile.set_script(load("res://hex_tile_forest.gd"))
	add_child(new_hex_tile) # add to scene tree after setting a new script
	new_hex_tile.set_texture("hex_tile_forest.png")
	new_hex_tile.set_hex_position(Vector2(100, 200))
	new_hex_tile.set_hex_cube_coordinates(0,1)

---

The tYpo

Sprite2D has the texture property.

func set_texture(texture_path: String):
	# `texture` not `Texture`
	hex_script.texture = load(...)

---

Extras

• You can demo the flows by attaching scripts to the nodes in “hex_tile.tscn”
  that print on _init, _ready, _enter_tree.
• Check out creating custom resources.
  • Something like a HexTileData resource.
  • Have multiple tile data resources: hex_tile_forest.tres, hex_tile_ice.tres, hex_tile_lava.tres
  • Pass the hex tile resource to the “hex_tile.tscn” instance.
  • HexTile sets itself up using the tile resource data.

[ash]

Thanks a lot @indicainkwell this is so useful. I t works and I learned a lot. Extra thanks for linking to the resources article.
