Godot Version
4.5.1
Question

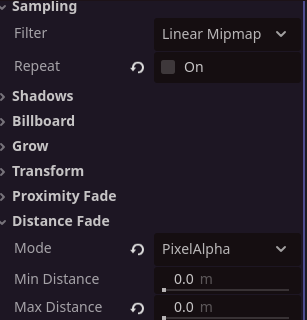

I am making a small game with a cube player with a skin customisation feature, and found a way to overlay materials on top of each other using a sketchy method, since I would have to draw an exponential amount of different combinations for all the different options. I couldn’t find a better way to do it, but I used one material on 6 planes making up the cube shape (since putting a texture wrapped onto the cube weirdly). All faces use the same material, with 3 next_pass on it, acting as layers. Each have distance fade set to PixelAlpha and sampling repeat off, making it so you can see the other layers behind it.
I need three layers total - a border / outline around each face, a design (the square in the middle in the video, all png textures), and the base colour in the background (red).
In the video, each face unrenders the design and border textures at random times (seems to be where the camera is), and I can’t figure out why. If anyone knows why it does this, or know a better way to overlay materials like this, please tell.
Player script
extends RigidBody3D
class_name Player
var base = preload("res://player/materials/base.tres")
var border = preload("res://player/materials/border.tres")
var design = preload("res://player/materials/design.tres")
var player_kit = preload("res://player/materials/_player_kit.tres")
func _ready() -> void:
# Sync kit to player in-game
if Customisation.border:
border.albedo_texture = Customisation.BORDER_TEXTURE
else:
border.albedo_texture = Customisation.BORDER_BLANK
design.albedo_texture = Customisation.design
design.albedo_color = Customisation.design_colour
base.albedo_color = Customisation.base_colour
player_kit.next_pass = border
player_kit.next_pass.next_pass = design
player_kit.next_pass.next_pass.next_pass = base
Autoload script
extends Node
var border := true
const BORDER_TEXTURE = preload("res://player/designs/border.png")
const BORDER_BLANK = preload("res://player/designs/design empty.png")
var design_ID := 1
var design := preload("res://player/designs/design box.png")
var base_colour : Color = Color.RED
var design_colour : Color = Color.WHITE

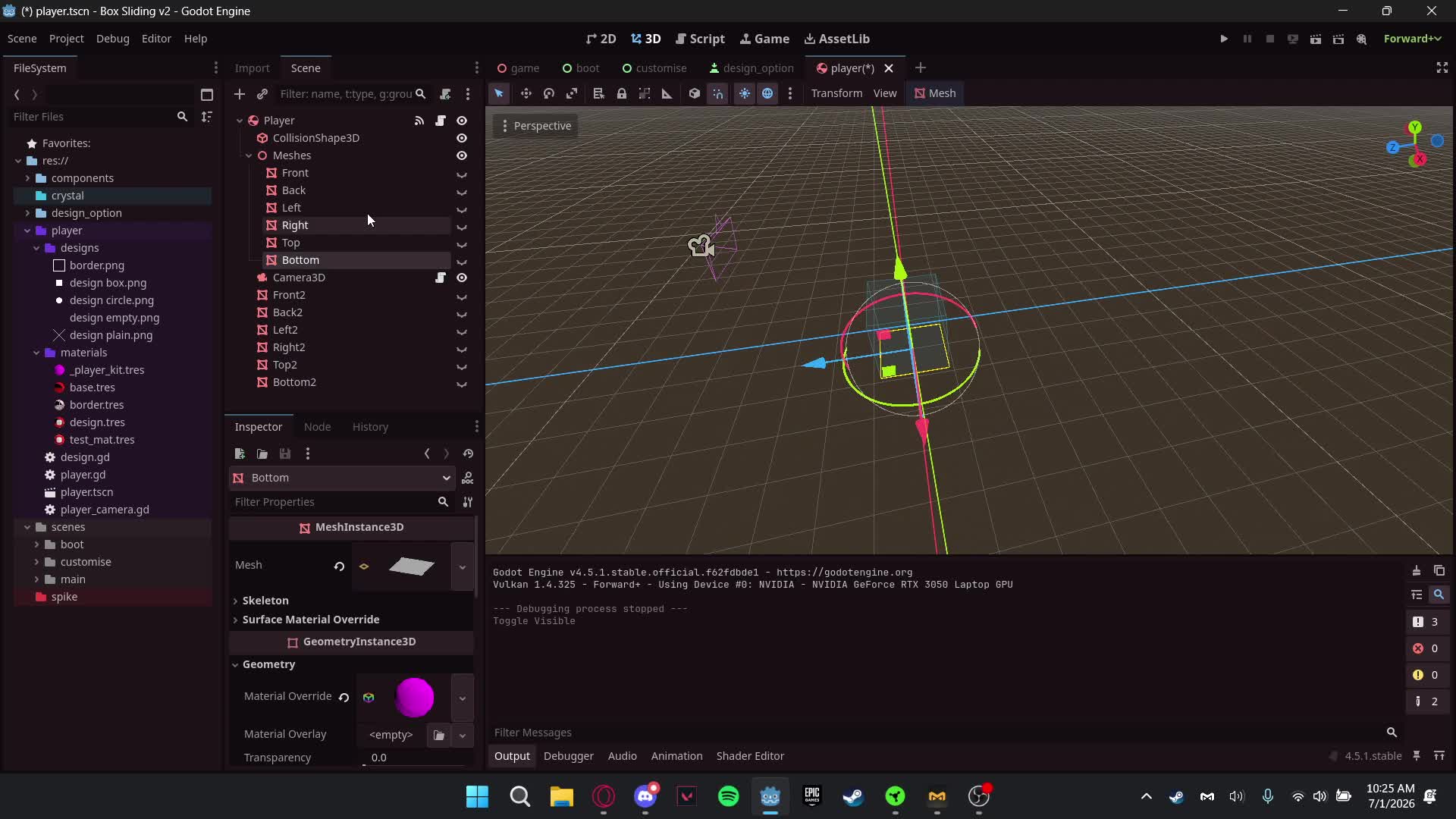

Video:
