Creating 180 Control Buttons, a little bit slow on Android

[serimert]

Godot Version

4.4.1

Question

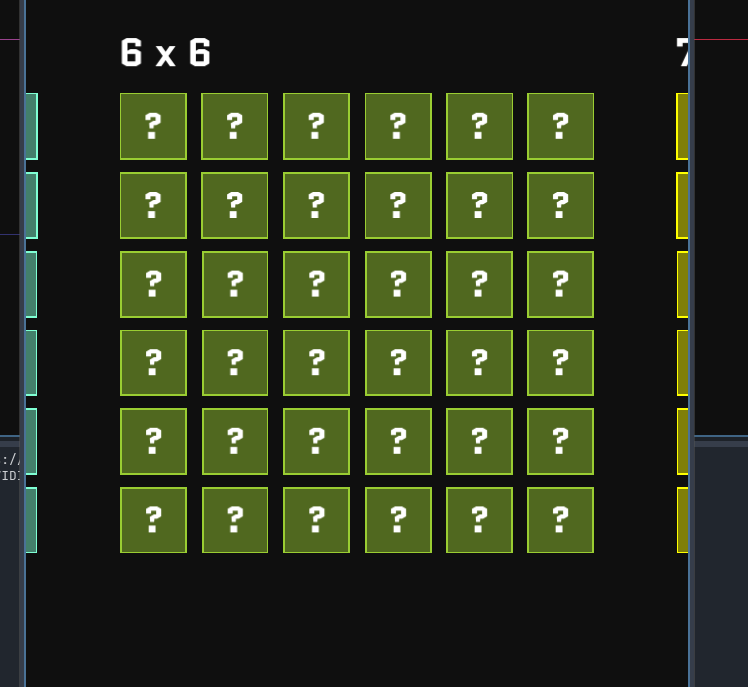

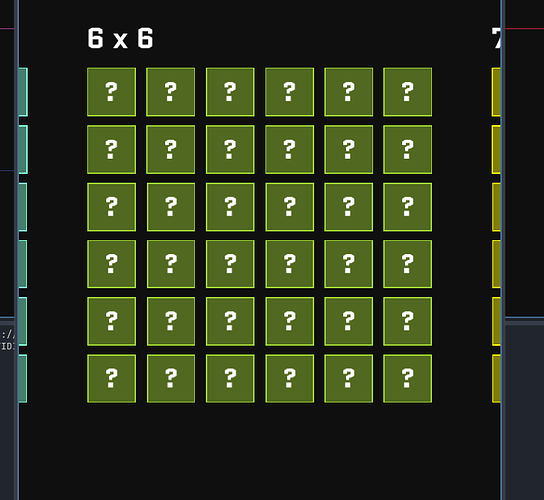

The current design creates the result below

I have total of 5 grids with each of 36 buttons. By listening swipe(in gui_input) i am shifting all this grid nodes parallelly (position.x). Current scroll container did not meet my suits.

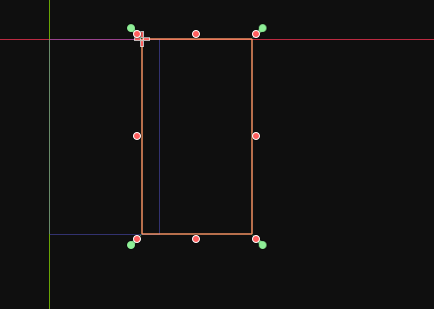

My editor layout design is like below

As you see above, i have a node for each grid (total 5) and placed next to each other. This way by listening swipe i am changing their positions with parallel tweens.

After scene is rendered, everything is fast but initialization is a little bit slow(around 0.8 - 1.3 second)

In initialization imo, i am not doing too much for every button as seen below. They are normal buttons with styleboxflat styles (not texture buttons)

grid_size_lbl.text = str(grid_size) + " x " + str(grid_size)
	for row:int in grid_container.columns:
		for column:int in grid_container.columns:
			var level_num:int = (row * 6) + (column + 1)
			var lvl_exists:bool = Constants.is_level_exists(grid_size, level_num)
			var btn_ratio_container:LevelChooserBtnRatiod = LEVEL_CHOOSE_BTN.instantiate()
			var btn:Button = btn_ratio_container.get_child(0)
			btn_ratio_container.modulate_color = Constants.get_selection_grid_btn_color(grid_size)
			if lvl_exists:
				btn.pressed.connect(button_clicked.bind(level_num))
				btn_ratio_container.level_num = str(level_num)
			else:
				var levels_unlocked:bool = GameManager.are_levels_unlocked(grid_size)
				btn.disabled = true
				btn_ratio_container.level_num = "?"

			grid_container.add_child(btn_ratio_container)


func button_clicked(level_num:int) -> void:
	var get_current_selection_scn = get_tree().get_first_node_in_group("level_choose_grid")
	SceneManager.load_game_session(get_current_selection_scn, Constants.get_level_data(grid_size, level_num))

So my question is, is there any way better to design this “swipe to grid” situation? Can i use multi threading in initialization? Am i missing a node exactly for this situation?

[hexgrid]

You might want to profile a bit, either with the profiler or by sprinkling around Time.get_ticks_usec() and comparing.

My suspicion would be a lot of your time is going into either add_child() or instantiate().

One thing you might try is not adding the grid container to the tree until after all the child buttons have been added.

[serimert]

@hexgrid

Time.get_ticks_usec()

Thanks, .init functions call the method above in first post

var start:int = Time.get_ticks_usec()
	level_chooser_grid5.grid_size = 5
	level_chooser_grid5.init()

	level_chooser_grid6.grid_size = 6
	level_chooser_grid6.init()

	level_chooser_grid7.grid_size = 7
	level_chooser_grid7.init()

	level_chooser_grid8.grid_size = 8
	level_chooser_grid8.init()

	level_chooser_grid9.grid_size = 9
	level_chooser_grid9.init()
	print("diff: " + str((Time.get_ticks_usec() - start) * 0.001))

This returned 140 ms for android phone so clearly not the code. I will try other places. By the way i check the profiler and i saw the spike in script functions part but dont know how to interpret it.

Edit: I checked each method and they all seem fine. I think tons of controls and calculations for each grid may take up that time. Since they are control nodes and everything is ratiod can be the normal culprit maybe?

[hexgrid]

There’s a get_ticks_msec() as well if you want more granular results.

What I’ve found with things like this is that if you make a lot of changes to a node that’s live it can be expensive, and the expense seems to happen outside the scripts. That is, you queue up a lot of work for Godot, and it does it in an internal update where it’s hard to profile.

I think you might get better results if you create a new grid container without adding it to the scene, add the buttons to the grid container, and then add the fully-built container-with-buttons to the scene. I can’t be sure, but it might be worth a try.

[serimert]

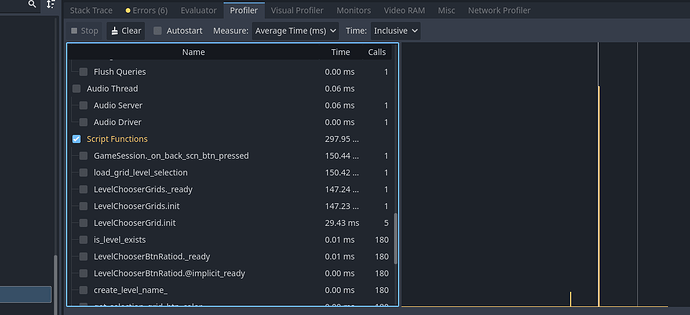

Profiler result for spike

[serimert]

Thanks i will try that, seems fine suggestion, even 0.3 seconds cut will be enough for me.
