Godot Version
v4.3.stable.official [77dcf97d8]
Question
I want to use shader with font into label text area . I want to create a flame effect .
This is result of one color shader on Material , if I add more source code become transparent :
I dont know exactly what you want your flame shader to look like, Text shaders in Godot need to preserve the alpha channel of the font texture to properly show just the character shapes while keeping the background transparent.
Here is an example of a flame shader I made awhile back that can you see if you can modify it to work for you?
shader_type canvas_item;
uniform vec4 base_color : source_color = vec4(1.0, 0.8, 0.0, 1.0);
uniform vec4 flame_color : source_color = vec4(1.0, 0.3, 0.0, 1.0);
uniform float speed : hint_range(1.0, 10.0) = 3.0;
uniform float noise_scale : hint_range(1.0, 50.0) = 10.0;
// Simple noise function
float noise(vec2 p) {
vec2 ip = floor(p);
vec2 fp = fract(p);
fp = fp * fp * (3.0 - 2.0 * fp);
float n = ip.x + ip.y * 57.0;
float a = fract(sin(n) * 43758.5453);
float b = fract(sin(n + 1.0) * 43758.5453);
float c = fract(sin(n + 57.0) * 43758.5453);
float d = fract(sin(n + 58.0) * 43758.5453);
return mix(mix(a, b, fp.x), mix(c, d, fp.x), fp.y);
}
void fragment() {
// Sample the text texture
vec4 text_color = texture(TEXTURE, UV);
// Create flame effect only where text exists (based on alpha)
if (text_color.a > 0.0) {
// Create animated noise for flame effect
float n = noise(UV * noise_scale + vec2(0.0, TIME * -speed));
// Mix between flame colors based on noise and vertical position
float flame_intensity = n * (1.0 - UV.y);
vec4 flame = mix(flame_color, base_color, flame_intensity);
// Preserve the text's alpha channel
COLOR = vec4(flame.rgb, text_color.a);
} else {
// Keep transparent pixels transparent
COLOR = vec4(0.0);
}
}

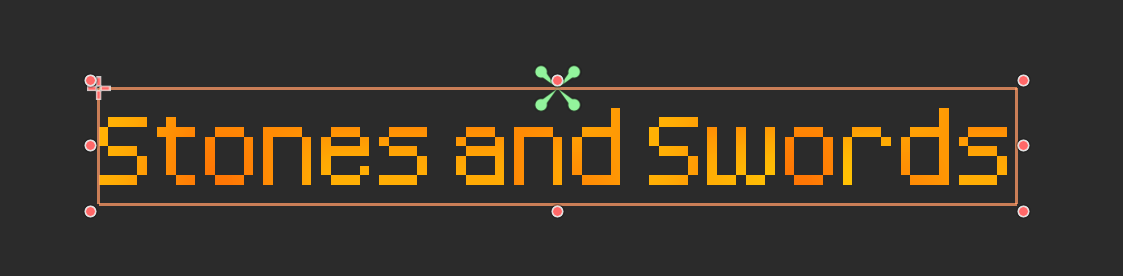

It’ll look something like this. But animated.

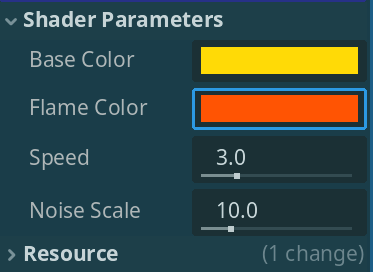

You can modify the colors, speed and noise in the Shader Params in the materials section.
2 Likes
I need a special type of font with texture , I used basic type .tff font.
I want to use text in many labels with a shader fire text animation, if this effect if is possible using shaders with font file and material shader… :
