Hello everyone. How I can create and change the certain tiles of tile_set?

[samuelrodriguesmgr]

Godot Version

Godot version 4.3

Question

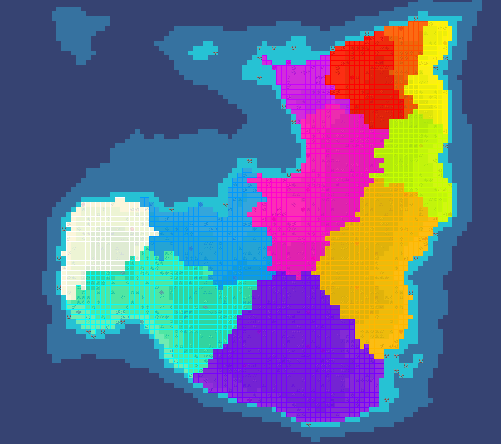

I create strategy:

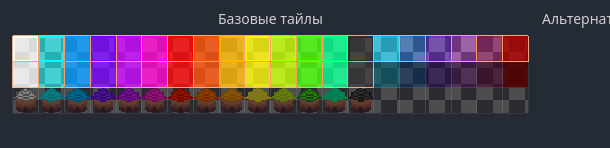

But for different countries, I need a lot of different tiles:

How I can create a new tiles with other color, using the one tile?

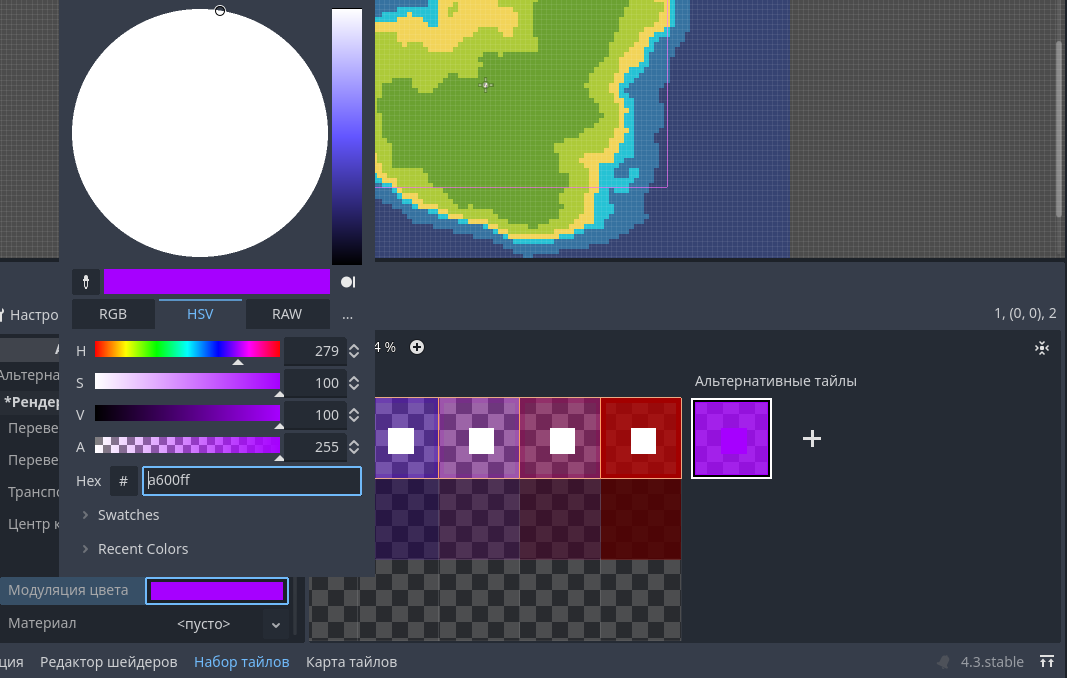

Its like to creaate the alternative tile, but using code

[herrspaten]

You need to access the tileset of the tilemap and then can use this method:

TileSetAtlasSource

[coderjo]

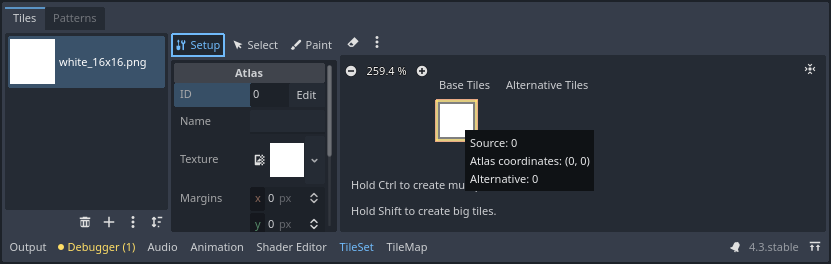

What we can do is make an image that is exactly one tile, like this:

Make sure that this image is the only one, and its ID is 0. Then we can create alternatives from this father tile.

extends TileMapLayer

# Used to store the alternative tile id of a color
var color_dict := {}
# The source of our lovely single-white-tile image
@onready var atlas_source: TileSetAtlasSource = tile_set.get_source(0)

# A handy method to handle the data
func add_color_tile(color: Color) -> void:
	# Create an alternative tile from the single tile
	var alternative_id := atlas_source.create_alternative_tile(Vector2i.ZERO)

	# Get the tile data of that newly created one, and change the modulate to the color
	atlas_source.get_tile_data(Vector2i.ZERO, alternative_id).modulate = color

	# Which alternative tile id did the color correspond to? We will store it!
	color_dict[color] = alternative_id

# Another handy method to set the color cells
func set_cell_color(coord: Vector2i, color: Color) -> void:
	# If we do not have the color cell, we create that cell
	if not color_dict.has(color):
		add_color_tile(color)

	# Set the coord with that color cell
	set_cell(coord, 0, Vector2.ZERO, color_dict[color])

I’m using TileMapLayer, if you’re using TileMap, the logic will still be the same, just pass in another layer with your layer.

[coderjo]

I made a little program within that script.

func _process(delta: float) -> void:
	if Input.is_mouse_button_pressed(MOUSE_BUTTON_LEFT):
		var mouse_coord := local_to_map(get_global_mouse_position())
		var color := Color8(randi_range(0, 255), randi_range(0, 255), randi_range(0, 255), 128)
		set_cell_color(mouse_coord, color)

[samuelrodriguesmgr]

man, big thank you. You’re really cool, I more found, but its very rarely
