How do Create Camera Limits Beyond Retangles?

[fluffydogsfly]

Godot Version

4.6.1

Question

I find many resources that talk about how to limit the cameras position. One issue is that my levels arnt built like big boxes. What is one strategy I can use to combat this? Should I use a tilemap?Polygon2d? Whatever the case I would love to be informed.

[baba]

I guess you could draw lines and use these as borders. Just check if line-position would overlap with camera viewport whenever you update the camera position.

If you want a circular stage you could just use a position and measure distance to it every time trying to update. If new position distance to the center position is greater than max distance, dont update camera position.

[fluffydogsfly]

ok thank you, this is a good start

[dragonforge-dev]

You can use my Camera2D Plugin.

1. Install the plugin. (Instructions in the Readme. Let me know if you have questions.)
2. Select your Camera2D.

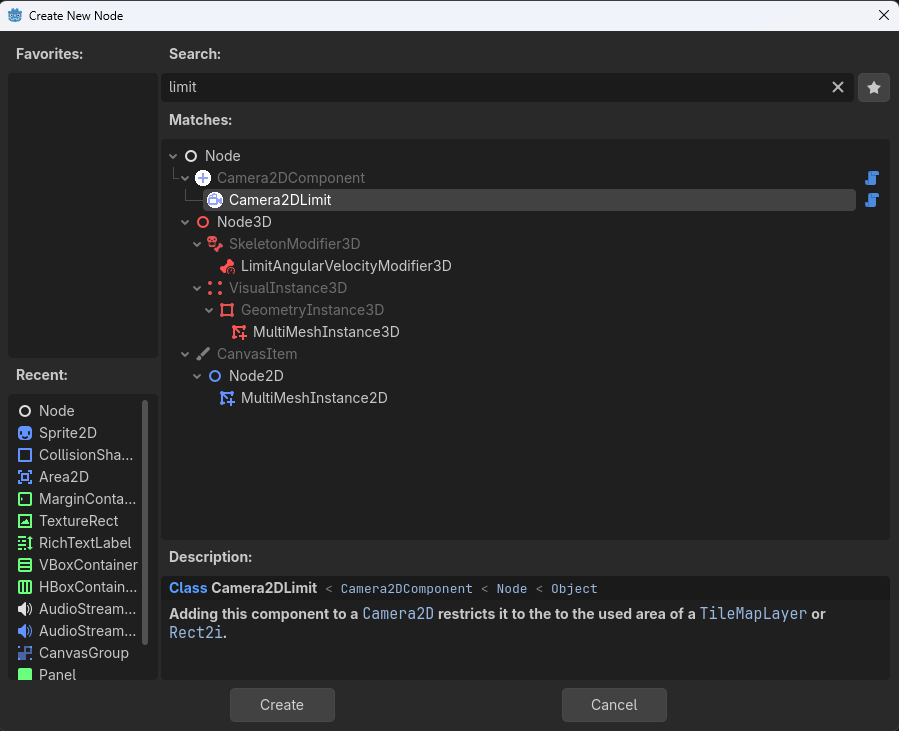

3. Click the Add Child Node (+) button.


4. Type “limit” into the Search bar.
5. Select the Camera2DLimit node.


6. Click the Create button. (It will show up in your scene tree.)


7. In the Inspector click the Assign button.


8. Select the TileMapLayer you want as the boundary for your camera.


9. Press the OK button.

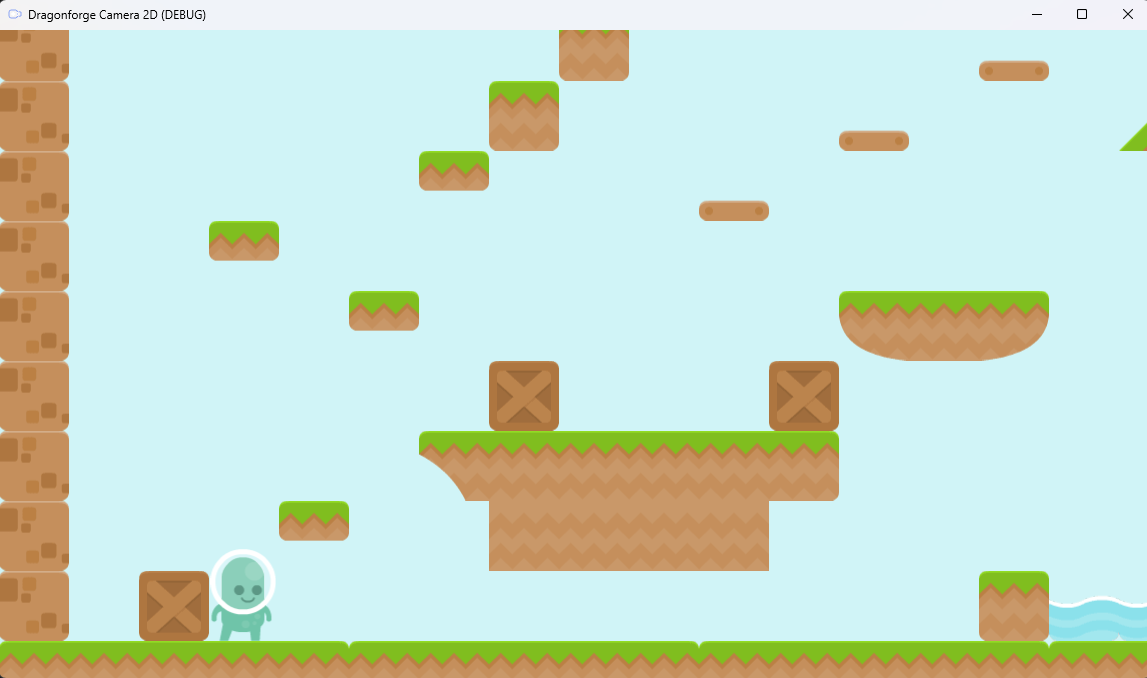

The camera will automatically keep the camera boundaries to the tiles used in the map - and updates whenever you update the map.

You can also use Camera2DSignalBus.update_camera_boundaries(tile_map_layer) to pass in a TileMpaLayer during gameplay if you change levels. And you can use the set_limit() function on the Camera2DLimit node to pass in a Rect2i as the limit of the camera.

There are also components for zoom, panning, and screen/controller shake.

[fluffydogsfly]

this is awesome, thank you

[dragonforge-dev]

No problem. If that solution ends up working for you, please mark it as the solution.
