Godot Version
v4.5.stable.official [876b29033]
Question
I’m currently porting my hella old project from GD3 to GD4 and a lot of things broke in the process, including all the shaders. Here’s the screen transition shader code:
shader_type canvas_item;
uniform int tile_size = 16;
uniform float progress: hint_range(0.0, 1.0) = 0.5;
const vec2 rect_size = vec2(752.0, 272.0);
void fragment() {
float num_lines = rect_size.x / float(tile_size);
vec2 tiled_uv = vec2(fract(UV.x * num_lines / 2.0), UV.y);
if (tiled_uv.x < 0.5) {
if (tiled_uv.y < progress) {
COLOR = COLOR;
} else {
discard;
}
} else {
if (tiled_uv.y > 1.0 - progress) {
COLOR = COLOR;
} else {
discard;
}
}
}
It uses a constant for the rect size because that was the biggest viewport size I could think of where the game window border could reasonably extend. But now that I’m testing it in my actual game viewport without borders, it obviously doesn’t look right.

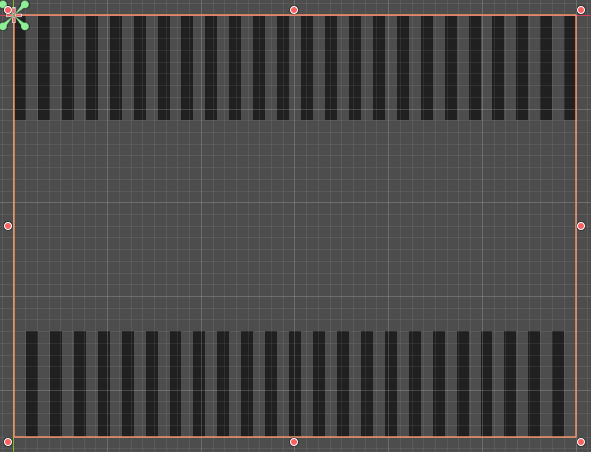

It’s supposed to create 16px wide alternating stripes on each side of the screen, but those stripes in the image are definitely smaller than that. So my main question is, how do I make the shader tile properly regardless of the texture size? And my other question is, is there a way to rewrite the COLOR = COLOR bits as that seems kinda redundant?
