How to assign a mesh for the MeshDataTool

Petey · June 9, 2025, 1:05am

Godot Version

4.4

Question

Hi all,
I wanted to try some experiments with the MeshDataTool but I’m having trouble assigning a mesh for it to process.

I have a simple scene setup with a mesh object.

Then I’m exporting the arraymesh to the editor.

    [Export] public Node3D meshNode;
    [Export] public ArrayMesh arrayMesh;

    public void _Ready()
    {
        var mdt = new MeshDataTool();
        mdt.CreateFromSurface(arrayMesh, 0);

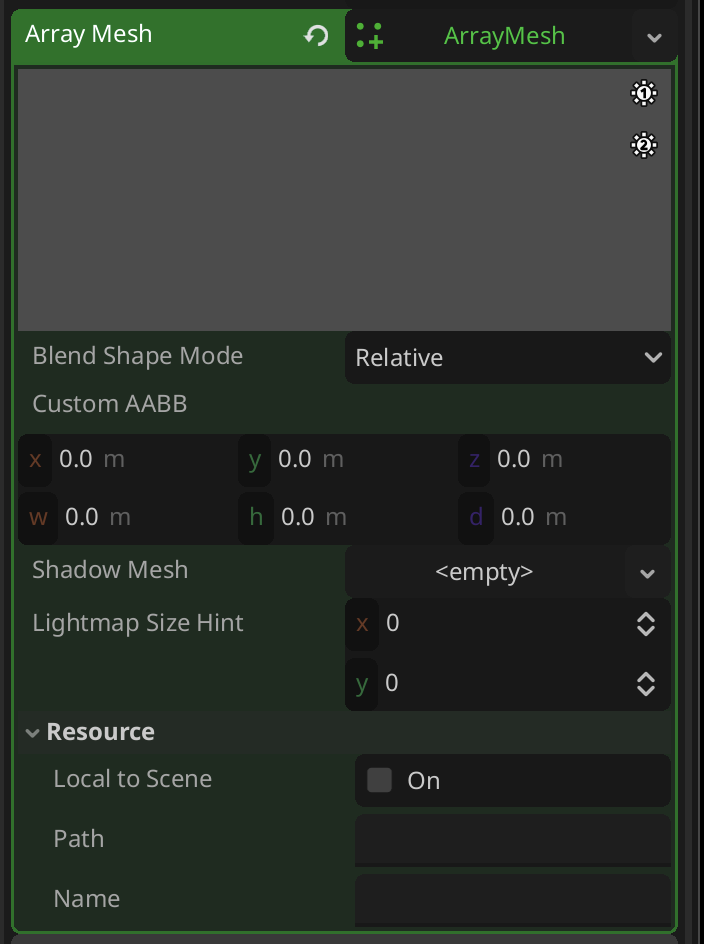

I’m just not sure how to assign the arraymesh in the editor so I can supply it to the MeshDataTool.

Could someone point me in the right direction here?
Thanks!

Pete
