You might want one day to render 3D objects for some reason in the UI.

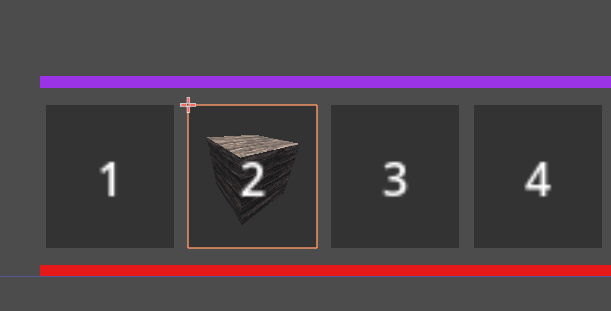

Just like this:

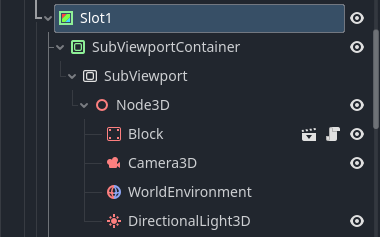

The setup looks like this:
(Canvas Layer wtih default values; the root for the 2D UI)
The idea is to make a CanvasLayer, then subnode the SubViewportContainer
Then subnode SubViewport under SubViewportContainer
Then you make a Node3D and place a MeshInstance3D, StaticBody3D or anything else you want.
Then you add Camera3D under SubViewport/Node3D.

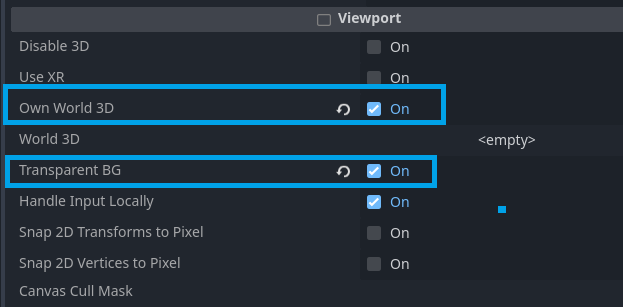

Then you setup the SubViewport Node as follows:
Core notes
Camera3D Node: all default parameters
SubViewportContainer Node: all default parameters
SubViewport Node:
- Enable Own World 3D: Enable Own World 3D to isolate the Camera3D so it does exist in its own world.
- Transparent BG: Enable to make background skybox not existing and background transparent for the UI underneath.
“Own World 3D” option: Needs a copy of environment subnoded.

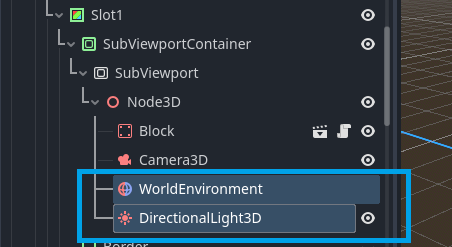

For own world to not show just dimmed black stuff, you will need to subnode a copy of WorldEnvironment and DirectionalLight3D like this:
That’s it. Now you can have your 3D mesh/object displayed on 2D UI.
