How to make projectiles bounce off an actively moving body V4.6

Help
, , ,
1

Godot Version

V4.6

Question

Hello, I have a projectile(character body) that moves and collide then bounces off a character body.

The issue is that the projectiles don’t bounce off of moving bodies and instead they pile up. How would I go about implementing the physics so the projectiles bounce off all bodies.

Projectile physics process:
func _physics_process(delta: float) -> void:

	collision = move_and_collide(velocity*delta)

	if collision:
		collider=collision.get_collider()
		velocity = velocity.bounce(collision.get_normal())
##Friction
	if velocity.length() > 0:
		var drop = friction * delta
		var new_speed = max(velocity.length() - drop, 0)
		velocity = velocity.normalized() * new_speed

Character processes:

func _process(delta: float) -> void:
##get mouse position and rotates the shield towards mouse position
	var aim = get_global_mouse_position() - $Node2D.global_position
	if aim.length() > dead_zone_shield:
		$Node2D.rotation = lerp_angle($Node2D.rotation,aim.angle(), 0.2)
	$Node2D/Shield.ball_dir=($Node2D.get_global_mouse_position()-$Node2D.global_position).normalized()

func _physics_process(delta: float) -> void:
	var target_pos = get_global_mouse_position()
	var to_mouse = target_pos - global_position
	var input = Vector2.ZERO
##moves the character towards mouse
	if to_mouse.length() > dead_zone_moving: # dead zone
		input = to_mouse.normalized()
	var lerp_weight = delta * (acceleration if input != Vector2.ZERO else friction)
	velocity = lerp(velocity, input * (max_speed+to_mouse.length()), lerp_weight)
	move_and_slide()

tree2_ball
tree2_ball350×292 11.4 KB

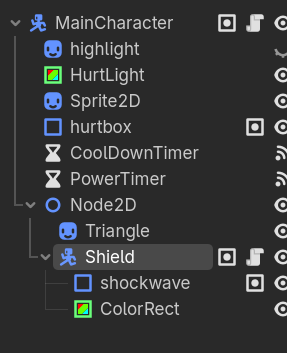

tree1_character
tree1_character287×353 14.6 KB

2

Push the position further away along the normal when the collision happens. You can also try using rigid bodies instead.

3

Thanks, I tried using this on the ball physics process.

if collision:
	collider=collision.get_collider()
	velocity = velocity.bounce(collision.get_normal())
    var push_distance = 10
	translate(collision.get_normal() * push_distance)

It works alright when the body is slower but no much for higher speeds.

4

Check the collider’s velocity vector and make sure you push enough so that collision with the same collider can’t happen again on the next frame.

2 Likes
5

Thanks! :slight_smile: I monitored the characters velocity with:

func _physics_process(delta: float) → void:
real_velocity = (global_position - last_position) / delta

then translated the speed to be proportional to push distance, used a bit of trail and error to get what I wanted:

	if collider is CharacterBody2D:
		velocity = velocity.bounce(collision.get_normal())
		if "real_velocity" in collider:
			var speed = collider.real_velocity.length()
			var push_distance = speed
			if speed>10:
				push_distance=(speed/2)/10
			if push_distance>50:
				velocity += velocity.normalized() * (push_distance*10)
			#print(str(push_distance))
			translate(collision.get_normal() * push_distance)

Also I found out that increasing the push distance and the velocity helps reduce multiple collisions.

1 Like
6

Yeah, the point is to tweak the push/velocity it so it successfully “escapes” the other body once the collision happened.
