Move CharacterBody3D just one square at a time

[Dad3353]

Godot Version

v4.8.dev1.official [ebbf577a0]

Question

I'm attempting a 3D version of HeroQuest, the board game, using Kenney figures for now. I know how to move an animated CharacterBody3D Player around, using 'move_and_slide'; for the purposes of this game I want the Player to move only a fixed distance, equal to one board square, with a key press. How many squares will be determined by a dice throw, but it's always a set number of squares, not free movement.

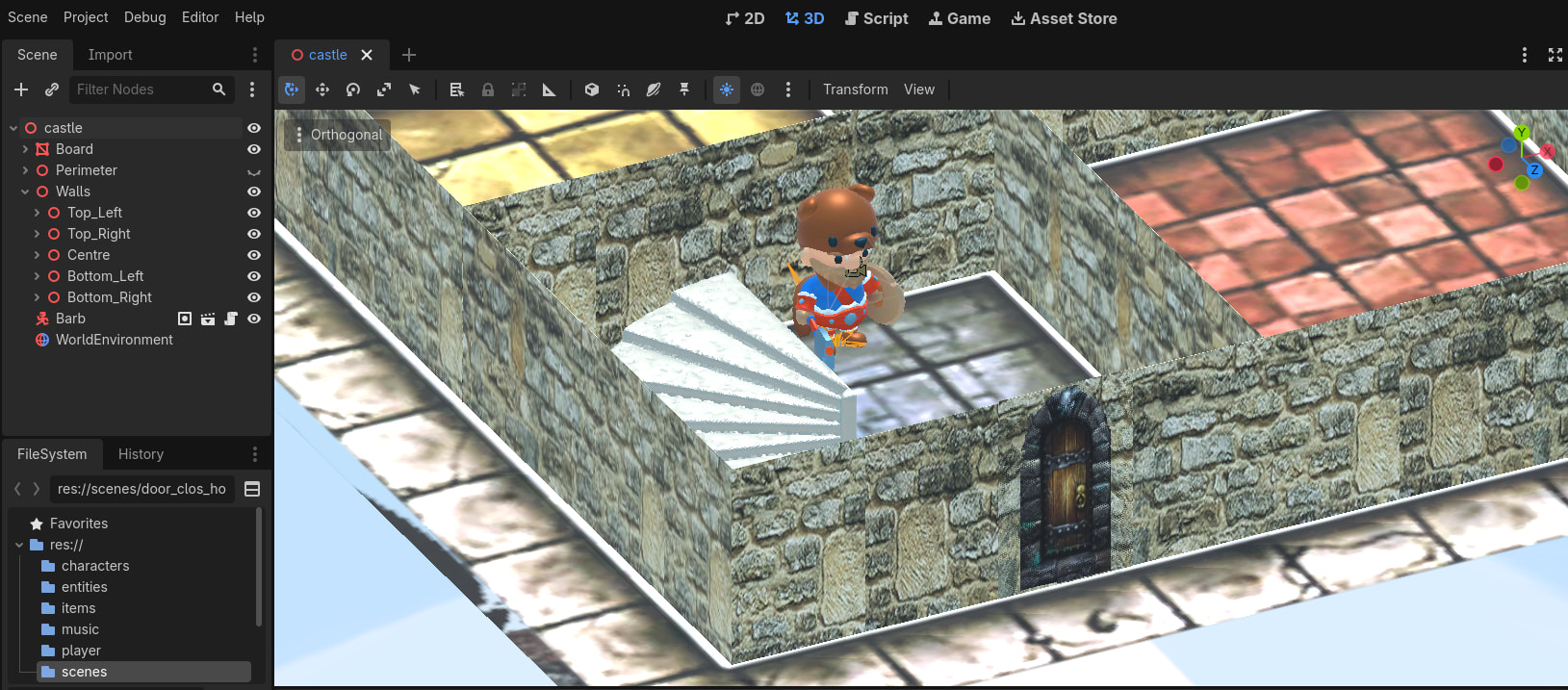

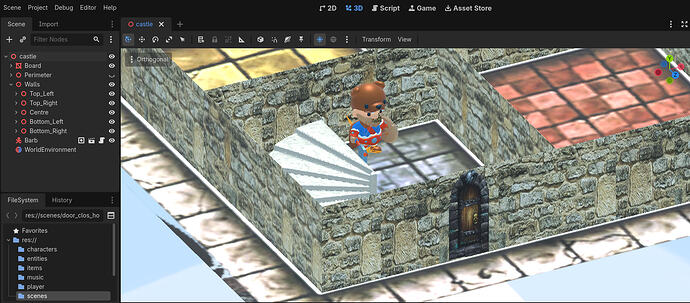

For the moment, I've 'guessed' a 'transform' distance for the Player at each key press; is there a better way to ensure 'one square movement..? I had a look at Grid Maps, but couldn't see if this would help, nor how to apply the notion. Here's the code I have for the Player, and a couple of screenshots as illustration…

~~~

class_name Barb

extends CharacterBody3D

var lv_spee : float = 3
var lv_acce : float = 15
var lv_air_acce : float = 5
var lv_grav : float = 0.98
var lv_maxi_term_velo : float = 54
var lv_jump_powe : float = 10
var lv_jump_flag : bool = true
var lv_y_velo : float
var lv_step : int = 1
var lv_step_leng_x : float = 40
var lv_step_leng_z : float = 40

const lc_text_walk : String = “Walking_C”
const lc_text_idle : String = “Idle_Rig”

@onready var lv_audi_step_play = $Audio_Step_Player
@onready var lv_anim_play = $AnimationPlayer

func _ready():
pass

func _process(delta):
handle_movement(delta)
pass

func _physics_process(_delta):
pass

func handle_movement(delta):
var direction = Vector3()

#region Key Detect
if Input.is_action_just_pressed(“Move_Forward”):
direction += (transform.basis.z*lv_step_leng_z)

if Input.is_action_just_pressed("Move_Back"):
	direction -= (transform.basis.z*lv_step_leng_z)

if Input.is_action_just_pressed("Step_Left"):
	direction += (transform.basis.x*lv_step_leng_x)

if Input.is_action_just_pressed("Step_Right"):
	direction -= (transform.basis.x*lv_step_leng_x)

if Input.is_action_just_pressed("Rotate_Right"):
	rotate_y(deg_to_rad(int(-90)))
if Input.is_action_just_pressed("Rotate_Left"):
	rotate_y(deg_to_rad(int(90)))
#endregion Key Detect

if is_on_floor():
	velocity = velocity.lerp(direction * lv_spee, lv_acce * delta)
else:
	velocity = velocity.lerp(direction * lv_spee, lv_air_acce * delta)

if is_on_floor():
	lv_y_velo = -0.01
else:
	lv_y_velo = clamp(lv_y_velo - lv_grav, -lv_maxi_term_velo, lv_maxi_term_velo)
#region Jump
if Input.is_action_just_pressed("Jump") and is_on_floor():
	if lv_jump_flag == true:
		lv_jump_flag = false
		lv_y_velo = lv_jump_powe
		lv_jump_flag = true
velocity.y = lv_y_velo
#endregion Jump

velocity.y = lv_y_velo

#region Footstep sound
if velocity.length() > 1:
	lv_anim_play.play(lc_text_walk)
	if !lv_audi_step_play.playing:
		if lv_step == 1:
			lv_audi_step_play.play()
		lv_step += 1
		if lv_step == 10:
			lv_step = 1
else:
	lv_anim_play.play(lc_text_idle)
	lv_audi_step_play.stop()
#endregion Footstep sound

move_and_slide()
~~~

… Thanks in advance for any advice on how to better simulate board-game movement; meanwhile…
Have a great day.

[normalized]

You don’t need move_and_slide() for grid-based movement. Use tweens instead.

This was previously discussed. I think I even posted an example:

Help with tween-based movement collision through move_and_slide()

Godot Version 4.6.2 Stable Question I’m currently refactoring the movement script for my 3D dungeon-crawler prototype, which previously used raycasts to detect collisions. I now want to utilize Godot’s CharacterBody3D collision functions instead, such as move_and_slide(). The issue is that I have been relying on tweens to move the player step by step, and now I’m unsure of how to utilize the collision functions I’d like. For example, here is part of my current code for moving forward: func _…

[Dad3353]

Thanks for the swift reply. The link to the example is expired, though; could it be updated, please..? It looks to be a Good Lead…

(Incidentally, I still can’t get reliable formatting of the GDScript, despite trying several methods. The ‘</>’ icon doesn’t do the job, nor ‘~~~’, apostrophes, accent gràve or whatever… It comes out as it comes out; apologies. French ‘azerty’ keyboard…)

[normalized]

Here’s the upload again

The example handles verticality as well (i.e. it’s a 3D grid) so it may be much more than you actually need but the main point is that in a grid based system you don’t really need collisions. And move_and_slide()'s main job it to handle collisions. Your “logical” movement from tile to tile should be instantaneous. The gradual position change is then just a visual effect done by tweening.

[Dad3353]

Gratefully received, many thanks. I’ll study it all this evening, but it looks to fit the bill as per my question. I’ll ‘tick’ this as ‘Resolved’. Cheers.

Edit : I’ve had a good look, and will prepare another tube of aspirins to untangle all that’s going on there. No, it’s not the code, nor the execution; it’s just using stuff I’m not at all familiar with (Grid Map in 3D, defined, it seems, in a Dictionary, with liberal scatterings of Vector2, Vector2i, Vector3, Vector3i and more yet…). I’m whittling away stuff I know I won’t need for now (all of the NPC’s, for instance…), and will have to work out how to get the Player to move using ‘WASD’ keys, but it’ll come, in time. Won’t it..? Surely it will, won’t it..? ‘Gulp’..!
There’s nothing on the telly in any case, so I’ll get back into it. I may be gone some time :-(…
