OptionButton renders incorrectly when embedded as GUI in 3D

Help
, ,
1

Godot Version

4.5.1.stable

Problem

Hello community, I need your support this time :slight_smile:

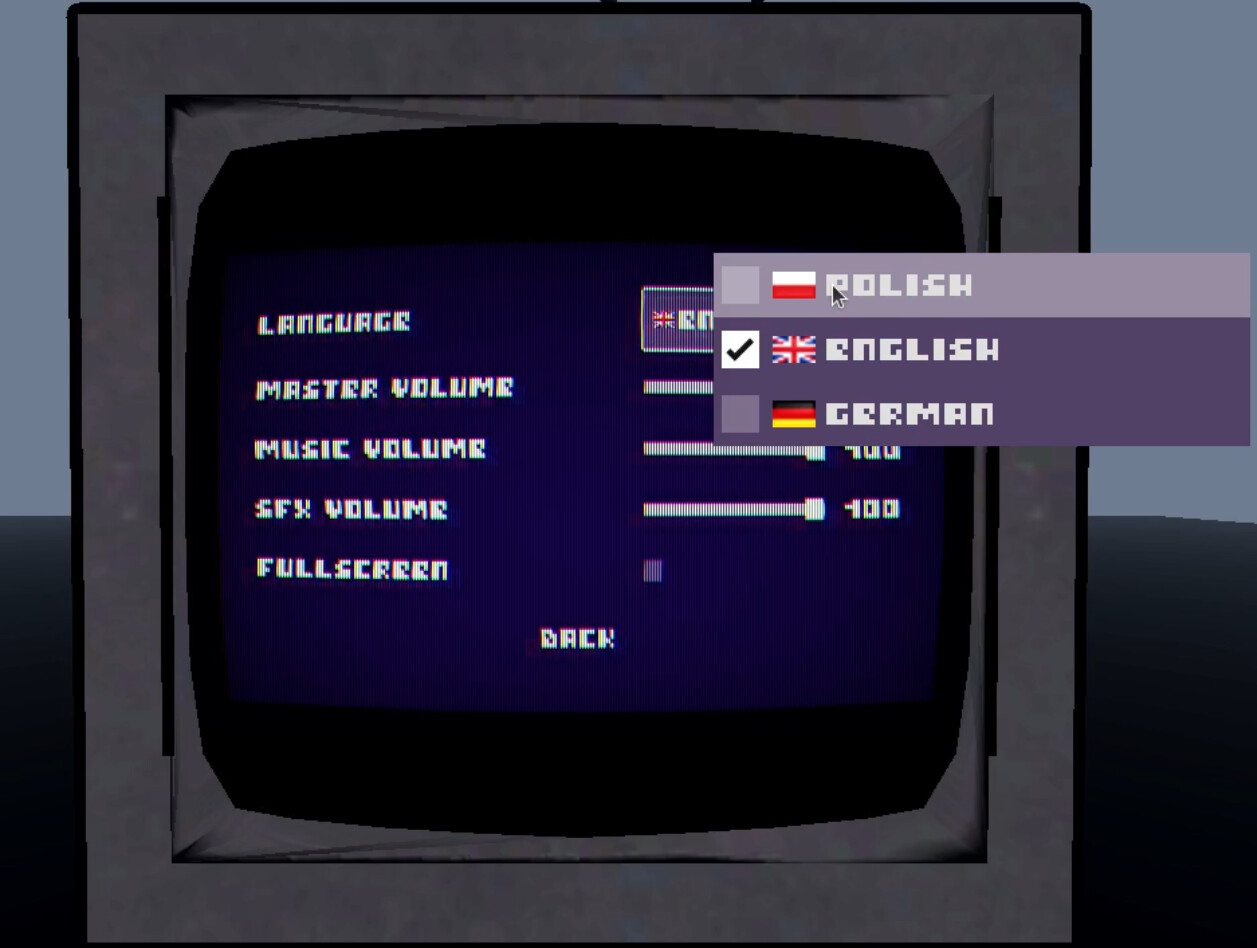

These screenshots summarize my issue:

image1257×948 133 KB

image921×714 148 KB

Here’s a short video of me browsing through the menu, everything works flawlessly except for the LanguageButton (which extends OptionButton).

I have implemented the GUI in 3D by adjusting this official demo project to work with my main menu:

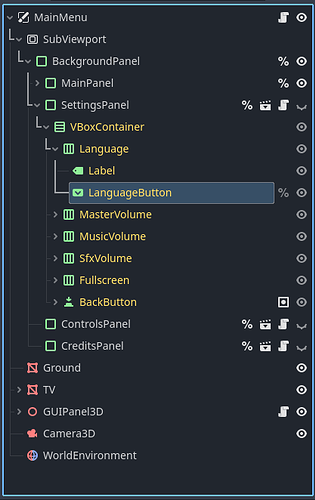

Here’s a scene tree of the MainMenu with the position of the LanguageButton:

image418×662 32.5 KB

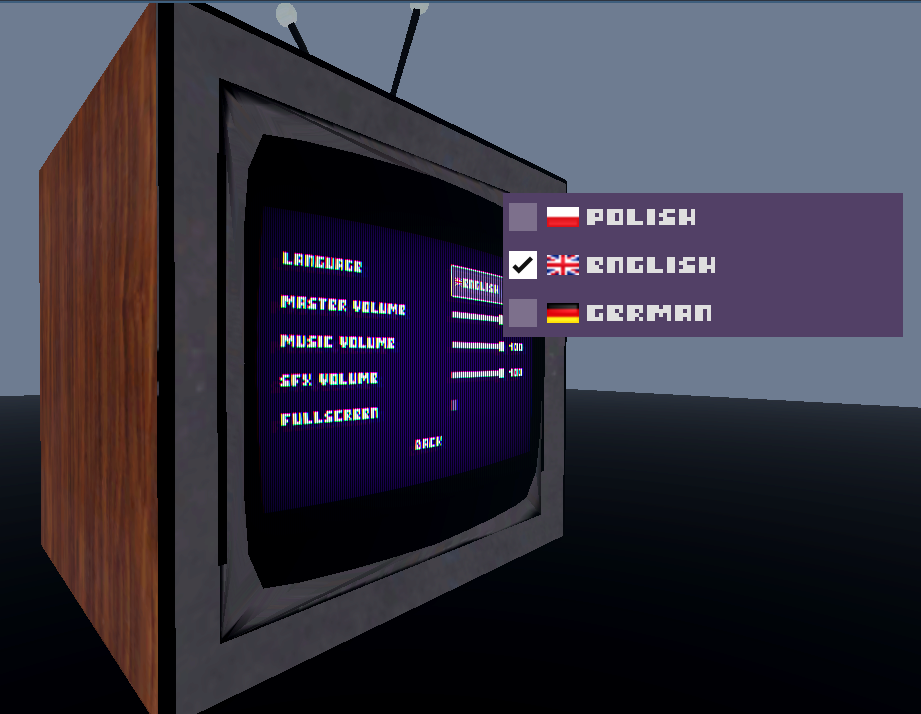

The problem comes from a fact that OptionButtons spawn a PopupMenu that displays the options and that PopupMenu is rendered in a separate Viewport, which is not part of the Viewport that gets rendered onto the TV. Here’s a screenshot of the scene at runtime showing the PopupMenu.

image412×386 20.7 KB

Question

Is there any way to make this PopupMenu be part of the Subviewport rendered on the TV?

If not, the only solution I see is to create my own custom OptionButton that would spawn a custom-made-options-menu (not based on the PopupMenu) in the same Viewport. Any better ideas?

1 Like
2

Try enabling Viewport.gui_embed_subwindows in your SubViewport

1 Like
3

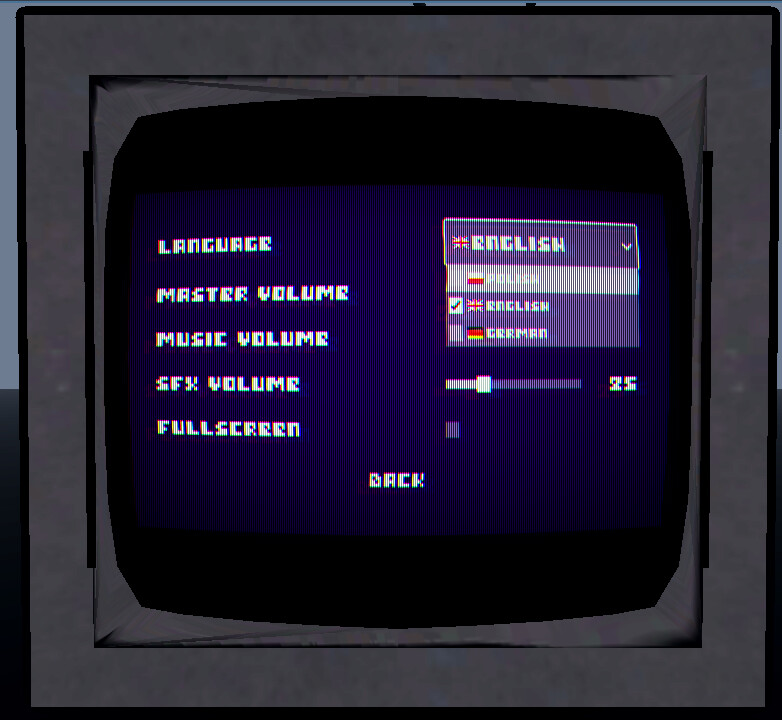

Yes! That was it! I had a feeling there must be a simple solution to that :slight_smile:

image782×720 123 KB

Thank you.

The only difference in behavior now is that the popup is not being hidden when I click outside of the popup’s area. But it’s not a big deal to me.
