Godot Version
v4.5.1.stable.steam [f62fdbde1]
Question
Im trying to make random platforms in the sky with CSGBoxes, i dont want to create platforms that touch another platforms so i use PhysicsShapeQueryParameters3D to detect if new platform would collide with another, but for some reason sometimes it doesnt register collision with CSGBoxes at all, giving me empty result.
get_world_3d().direct_space_state.intersect_shape(shape_query_params) is the method i use.
I update shape size and position before this step
something like this
query_shape.size = new_size
query_params.transform = Transform3D.IDENTITY.translated((begin_point+end_point)/2)
get_world_3d()…
To visualize result i put MeshInstance in that same place with same parameters (size, position)
indicator.global_transform = query_params.transform
indicator.mesh.size = query_params.shape.size
To debug this, i place platform on the next step if previous result was “not collided”
video
However, as i said, sometimes it does not register collision with some of CSG
Make sure that collision is enabled for csg nodes.

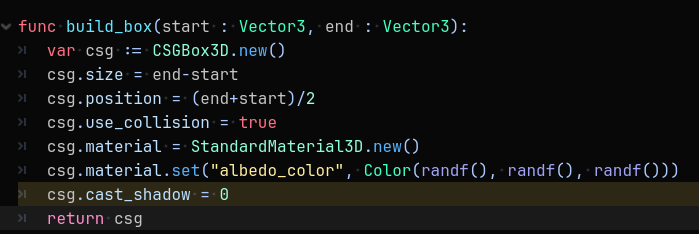

For script-created csg nodes as well?
continious testing demo

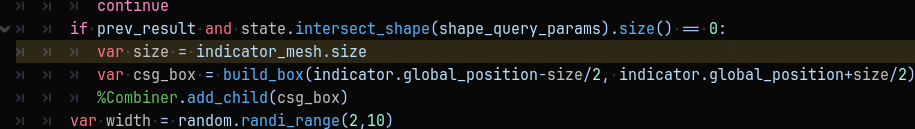

I added a check before platform is placing with another query intersect_shape, sometimes it does help, but it keep skips that particular platform on the top, idk why
Btw, i do not use CSGCombiner for CSG nodes, %Combiner is a regualr Node3D
UPD: Bug seems persistent with all Physics Engine options
Please try it yourself
TAB - lock/unlock mouse
F - next step (to generate platform)
WASD/SPACE/SHIFT - move
Could be Jolt. What happens if you switch to Godot Physics?
Same with ALL options, GodotPhysics3D, Jolt and Default (which i believe is Jolt?)
I hope i just did something wrong but right now i dont have time to check that
Seems like it’s a godot bug after all.
The problem is, i dont know how to explain that on github…
Try to make a minimal reproduction project, simpler than what you have now. Maybe strip it to only 2 colliders whose boxes can be adjusted via input, and try to determine if there are specific positions/relations where the problem happens.
The problem looks different between physics engines though. With Jolt, the intersection results contain multiple entries for the same collider, which is quite weird, and sometimes they don’t report any intersections. Godot’s physics appears to more stable, it reports correctly in most cases but produces some misses as well.
I haven’t checked for eventual bugs in your code.
