Godot Version
4.6
Question

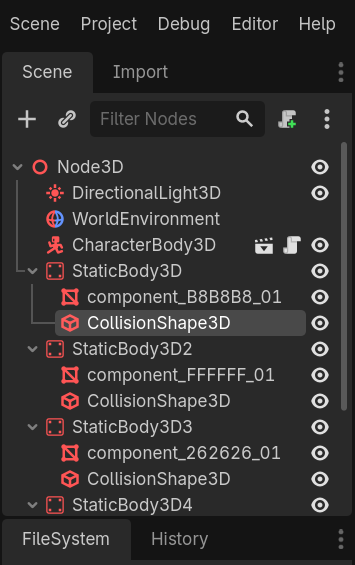

My character falls trough the floor even tough everything has the collision set
Player code:
extends CharacterBody3D
@export_group(“Movement”)
@export var move_speed := 8.0
@export var acceleration := 20.0
@export var rotation_speed := 12.0
@export var jump_impulse := 12.0
@export_group(“Camera”)
@export_range(0.0, 1.0) var mouse_sensitivity := 0.25
@export var tilt_upper_limit := PI / 3.0
@export var tilt_lower_limit := -PI / 8.0
var _camera_input_direction := Vector2.ZERO
var _last_movement_direction := Vector3.BACK
var _gravity := -30.0
@onready var _camera_pivot: Node3D = $Node3D
@onready var _camera: Camera3D = $Node3D/Camera3D
@onready var animation = $AnimationPlayer
@onready var mesh = $root
func _input(event: InputEvent) → void:
if event.is_action_pressed(“ui_cancel”):
Input.mouse_mode = Input.MOUSE_MODE_VISIBLE
elif event.is_action_pressed(“left_click”):
Input.mouse_mode = Input.MOUSE_MODE_CAPTURED
func _unhandled_input(event: InputEvent) → void:
var is_camera_motion := (
event is InputEventMouseMotion and
Input.get_mouse_mode() == Input.MOUSE_MODE_CAPTURED
)
if is_camera_motion:
_camera_input_direction = event.screen_relative * mouse_sensitivity
func _physics_process(delta: float) → void:
_camera_pivot.rotation.x += _camera_input_direction.y * delta
_camera_pivot.rotation.x = clamp(_camera_pivot.rotation.x, tilt_lower_limit, tilt_upper_limit)
_camera_pivot.rotation.y -= _camera_input_direction.x * delta
_camera_input_direction = Vector2.ZERO
var raw_input := Input.get_vector(“left”, “right”, “front”, “back”)
var forward := _camera.global_basis.z
var right := _camera.global_basis.x
var move_direction := forward * raw_input.y + right * raw_input.x
move_direction.y = 0.0
move_direction = move_direction.normalized()
var y_velocity := velocity.y
velocity.y = 0.0
velocity = velocity.move_toward(move_direction * move_speed, acceleration * delta)
velocity.y = y_velocity + _gravity * delta
var is_starting_jump := Input.is_action_just_pressed(“jump”) and is_on_floor()
if is_starting_jump:
velocity.y += jump_impulse
move_and_slide()
if move_direction.length() > 0.2:
_last_movement_direction = move_direction
var target_angle := Vector3.BACK.signed_angle_to(_last_movement_direction, Vector3.UP)
mesh.global_rotation.y = lerp_angle(mesh.rotation.y, target_angle, rotation_speed * delta)
if is_starting_jump:
animation.play(“air_jump”)
if not is_on_floor() and velocity.y < 0:
animation.play(“air_land”)
elif is_on_floor():
var ground_speed := velocity.length()
if ground_speed > 0.0:
animation.play(“run”)
else:
animation.play(“idle”)
