Set_cell() doesn't set tiles

Help Programming
,
1

Godot Version

4.3

Question

I’m trying to make a save system with JSON and trying to get the tilemaps to save and load has been quite a struggle. This is my current code for it:

func save_tile_map_data() -> void:
	current_save.tilemaps.tiles = var_to_str(Global.grid_helper_component.dirt_tilemap_layer.get_used_cells())

func load_tile_map_data() -> void:
	var tiles = str_to_var(current_save.tilemaps.tiles)
	for tile in tiles:
		Global.grid_helper_component.dirt_tilemap_layer.set_cell(tile)

func load_game() -> void:
	var file : FileAccess = FileAccess.open(SAVE_PATH + "save.sav", FileAccess.READ)
	var json := JSON.new()
	json.parse(file.get_line())
	var save_dictionary : Dictionary = json.data as Dictionary
	current_save = save_dictionary
	Global.game_controller.load_world_scene(current_save.scene_path)
	load_date_time()
	load_player_position()
	load_tile_map_data()

My Issue is that despite the code running perfectly fine without throwing any errors, it does not load any of the tiles that it saves.

2

Does the save data look right? If you load the data and print it to the log, does the data look right?

3
func save_tile_map_data() -> void:
	current_save.tilemaps.tiles = var_to_str(Global.grid_helper_component.dirt_tilemap_layer.get_used_cells())
	print("saved tiles:", current_save.tilemaps.tiles)

func load_tile_map_data() -> void:
	var tiles = str_to_var(current_save.tilemaps.tiles)
	print("loaded tiles:", tiles)
	for tile in tiles:
		Global.grid_helper_component.dirt_tilemap_layer.set_cell(tile)

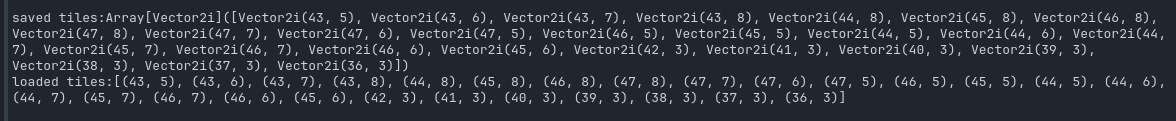

Untitled
Untitled1176×121 11 KB

Yeah, looks fine to me.

4

You are only saving the coordinates of the cells, not the tiles each coordinate is using.

You will need to save the TileMapLayer.tile_map_data and load that

5

I tried that but I didn’t quite figure out how to make it work. But now I tried to set it the same way I place the tiles I want to save and load in the first place, but that doesn’t work either and I don’t know why

func save_tile_map_data() -> void:
	current_save.tilemaps.tiles = var_to_str(Global.grid_helper_component.dirt_tilemap_layer.get_used_cells())

func load_tile_map_data() -> void:
	var tilemap_layer: TileMapLayer = Global.grid_helper_component.dirt_tilemap_layer
	var tiles = str_to_var(current_save.tilemaps.tiles)
	tilemap_layer.set_cells_terrain_connect(tiles, 1, 0, true)
	BetterTerrain.update_terrain_cells(tilemap_layer,tiles)
6

.get_used_cells() gives you an array of cells that have been used. So, if you have a tilemap that looks like:

. . . . . . . .
. x x x . . . .
. x x x . . . .
. . . . . . . .

You’ll get something like:

[(1, 1), (2, 1), (3, 1), (1, 2), (2, 2), (3, 2)]

That tells you which cells in the tilemap are used. You still need to make note of what tile is in each. For that, you want to call .get_cell_atlas_id() or possibly even .get_cell_tile_data() on each cell in that list.

1 Like
7

Good news: I get it now
Bad news: this somehow still doesn’t work (it also doesn’t sit under another layer or spawns out of view, just absolutely nothing)

func save_tile_map_data() -> void:
	var tilemap = Global.grid_helper_component.dirt_tilemap_layer
	for cell in tilemap.get_used_cells():
		var tile_info = {
		"tile_position": var_to_str(cell),
		"source_id": var_to_str(tilemap.get_cell_source_id(cell)),
		"atlas_coords": var_to_str(tilemap.get_cell_atlas_coords(cell)),
		"alternative_tile": var_to_str(tilemap.get_cell_alternative_tile(cell))
		}
		current_save.tilemaps.append(tile_info)

func load_tile_map_data() -> void:
	var tilemap = Global.grid_helper_component.dirt_tilemap_layer
	for tile_info in current_save.tilemaps:
		var tile_position = str_to_var(tile_info["tile_position"])
		var source_id = str_to_var(tile_info["source_id"])
		var atlas_coords = str_to_var(tile_info["atlas_coords"])
		var alternative_tile = str_to_var(tile_info["alternative_tile"])
		tilemap.set_cell(tile_position, source_id, atlas_coords, alternative_tile)
8

What exactly did not work with TileMapLayer.tile_map_data?

It seems to work just fine:

extends Node


@onready var src_tilemap: TileMapLayer = $SrcTilemap
@onready var dest_tilemap: TileMapLayer = $DestTilemap


func _process(delta: float) -> void:
	if Input.is_action_just_pressed("ui_accept"):
		var data = src_tilemap.tile_map_data
		dest_tilemap.tile_map_data = data

1 Like
9

same issue as with set_cell() it just doesn’t do anything, even tho the issue runs with errors

func save_tile_map_data() -> void:
	var tilemap = Global.grid_helper_component.dirt_tilemap_layer
	current_save.tile_data = var_to_str(tilemap.tile_map_data)

func load_tile_map_data() -> void:
	var tilemap = Global.grid_helper_component.dirt_tilemap_layer
	tilemap.tile_map_data = str_to_var(current_save.tile_data)

edit: I got it to work! I changed the code a little more and then realized it was being overwriten by another load function. Thank for the help everyone, I learned a lot!

func save_tile_map_data() -> void:
	var level_name = Global.game_controller.current_world.name
	var tilemap = Global.grid_helper_component.dirt_tilemap_layer
	var file = FileAccess.open(SAVE_PATH + level_name + "_" + "tile_data.sav", FileAccess.WRITE)
	var array = tilemap.get_tile_map_data_as_array()
	file.store_buffer(array)

func load_tile_map_data() -> void:
	var level_name = Global.game_controller.current_world.name
	var file = FileAccess.get_file_as_bytes(SAVE_PATH + level_name + "_" + "tile_data.sav")
	var tilemap = Global.grid_helper_component.dirt_tilemap_layer
	tilemap.set_tile_map_data_from_array(file)
