Water shader distorts objects in front (depth issue?) -Godot 4.6

[EmberS671]

Godot Version

Godot 4.6.1.stable

Question

Is there a solid way to make ocean waves shader without distorting objects between shader material and viewport?

Hi, I’m working on a water shader using screen_texture for distortion, but I’m running into a rendering issue that I can’t resolve.

Problem

When my plane (mesh) is between the camera and the water, the water shader distorts the plane as well. This results in:

• A “double” or wavy duplicate of the plane

• Distorted shadows (appearing duplicated)

• Even editor icons (like camera gizmos) appearing warped

However, without the ocean mesh, everything appears correct.

---

Expected Behavior

Only the water surface should be distorted.

---

Current Behavior

Objects in front of the water are also being distorted, suggesting incorrect depth handling. (maybe)

---

Shader Code

shader_type spatial;

uniform vec3 water_color : source_color;
uniform float uv_scale = 1.0;
uniform float time_scale = 1.0;
uniform sampler2D water_normal_noise;

uniform sampler2D screen_texture : hint_screen_texture, repeat_disable;
uniform sampler2D depth_texture : hint_depth_texture;

void fragment() {
	// Raw depths
	float scene_depth = texture(depth_texture, SCREEN_UV).r;
	float water_depth = FRAGCOORD.z;

	// Add bias to stabilize comparison
	float distort_mask = step(water_depth - 0.01, scene_depth);

	// UVs
	vec2 _uv = UV * uv_scale;
	vec2 base_suv = SCREEN_UV;

	// Wave motion (normals)
	_uv.x += sin(TIME * time_scale + (_uv.x + _uv.y) * 25.0) * 0.01;
	_uv.y += cos(TIME * time_scale + (_uv.x - _uv.y) * 25.0) * 0.01;

	// Distorted screen UV
	vec2 distorted_suv = base_suv;
	distorted_suv.x += sin(TIME * time_scale + (base_suv.x + base_suv.y) * 25.0) * 0.01;
	distorted_suv.y += cos(TIME * time_scale + (base_suv.x - base_suv.y) * 25.0) * 0.01;

	// Blend instead of branching
	vec2 final_suv = mix(base_suv, distorted_suv, distort_mask);

	ALBEDO = texture(screen_texture, final_suv).rgb;

	NORMAL_MAP = texture(water_normal_noise, _uv).rgb;
	NORMAL *= 0.7;

	ROUGHNESS = 0.2;
}

---

Thanks in advance!

---

Pictures of the problem:

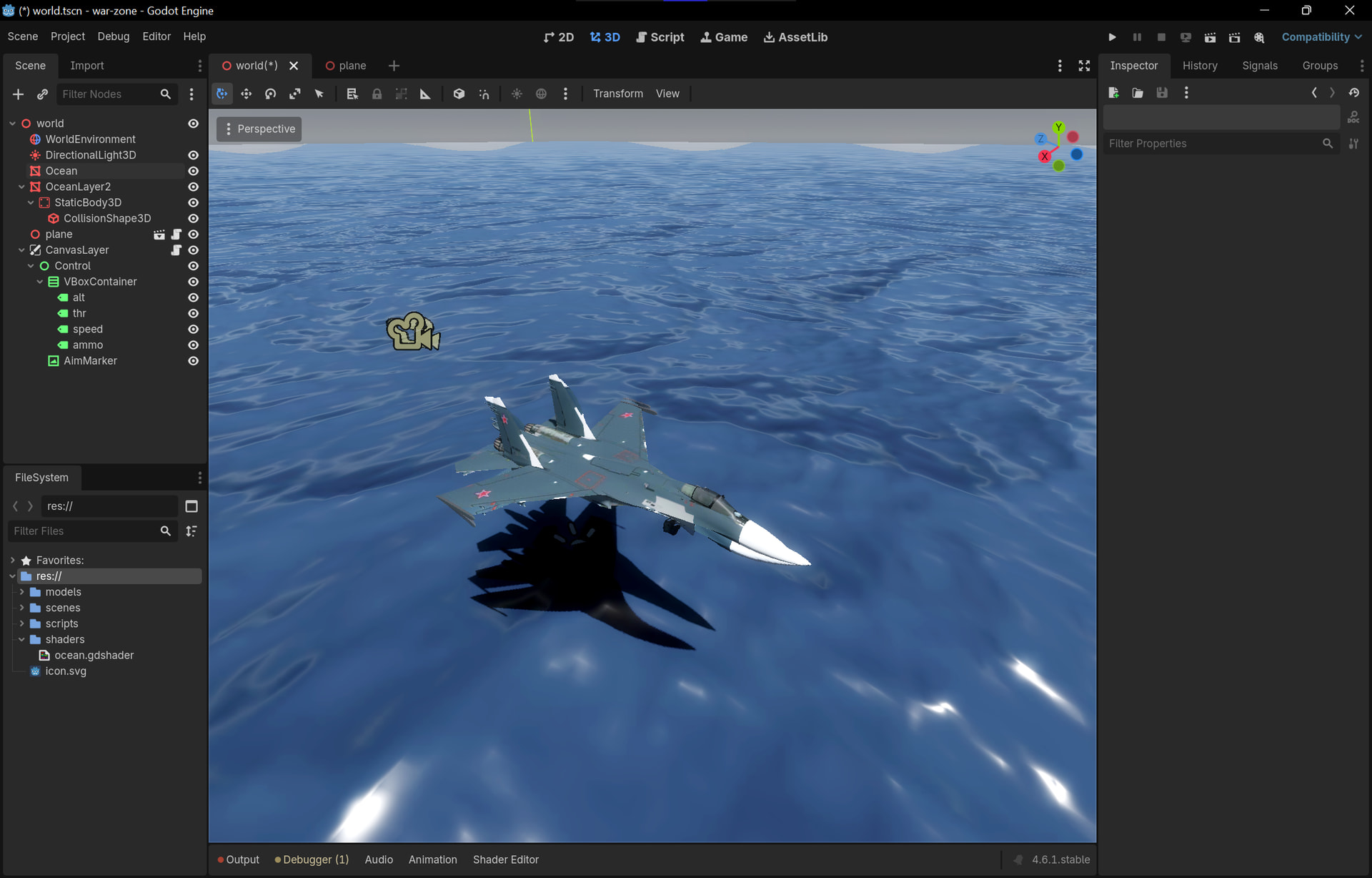

in tree is hidden. (OceanLayer2 is collision and flat visual layer)

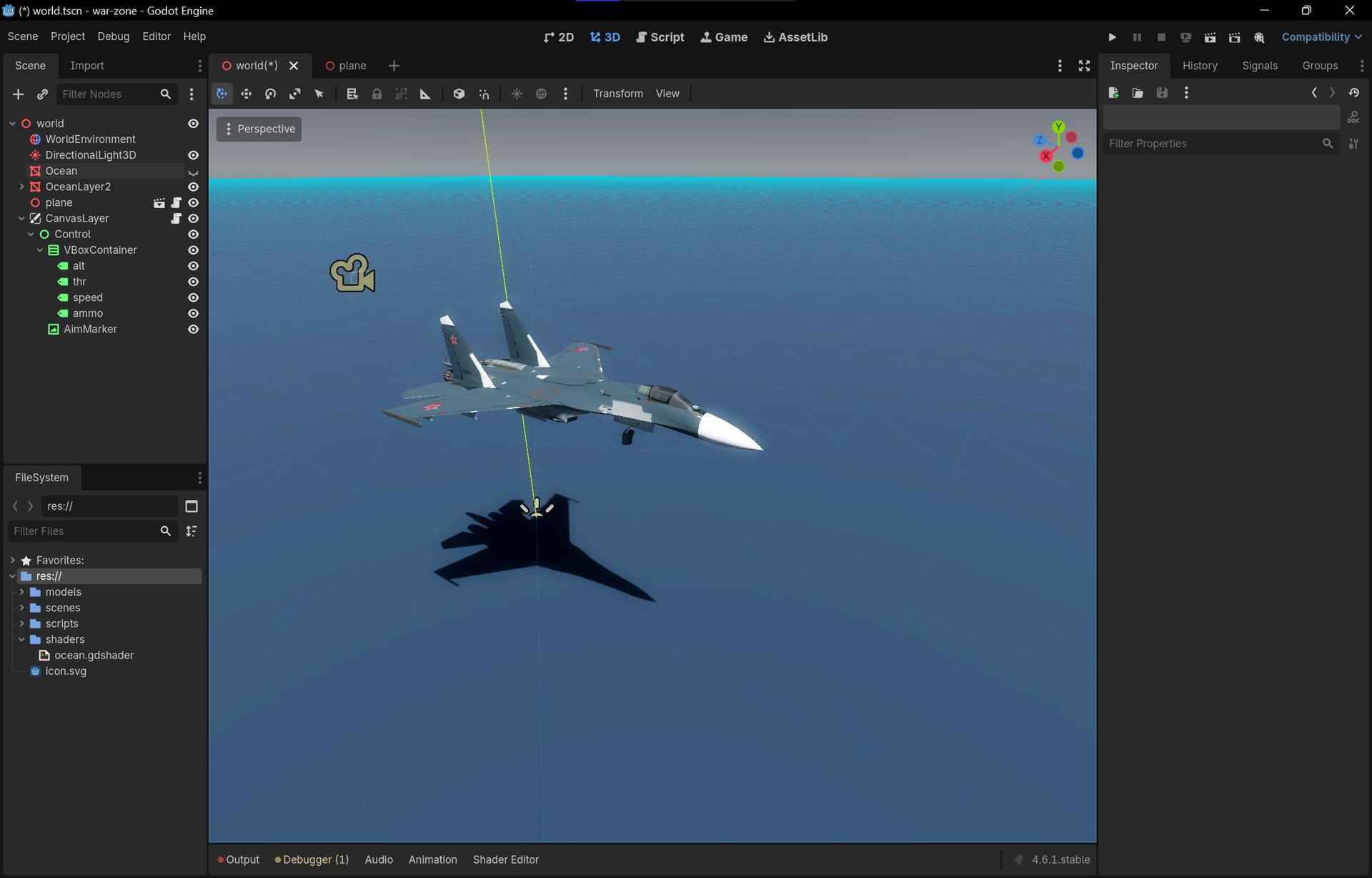

is visible

See the double shadow and double plane? even the camera gizmo is doubled and wavy.

[tomyy]

What is the source of your shader code? Could it be that it was written for a Godot version 4.2 or lower?

I ask because with Godot 4.3 the depth axis (Z) was changed to a reverse Z axis (Introducing Reverse Z (AKA I'm sorry for breaking your shader) – Godot Engine).

In Godot 4.2 and lower a Z value of 1.0 meant the near plane and a Z value 0.0 meant the far plane.

In Godot 4.3 and later a Z value of 0.0 means the near plane and a Z value 1.0 means the far plane.

This means that if a shader written for 4.2 (or lower) is used with Godot 4.3 without adapting to the reverse Z the shader treats objects nearer to the camera as behind the water.

You can test this by creating a simple mesh (a white cube, for example) and place it below the water surface. If this mesh is not distorted then this reverse Z problem is your problem.

The solution in that case might be replacing a single line of code in your shader:

	float distort_mask = step(scene_depth, water_depth + 0.01);

[EmberS671]

Thanks tomyy!

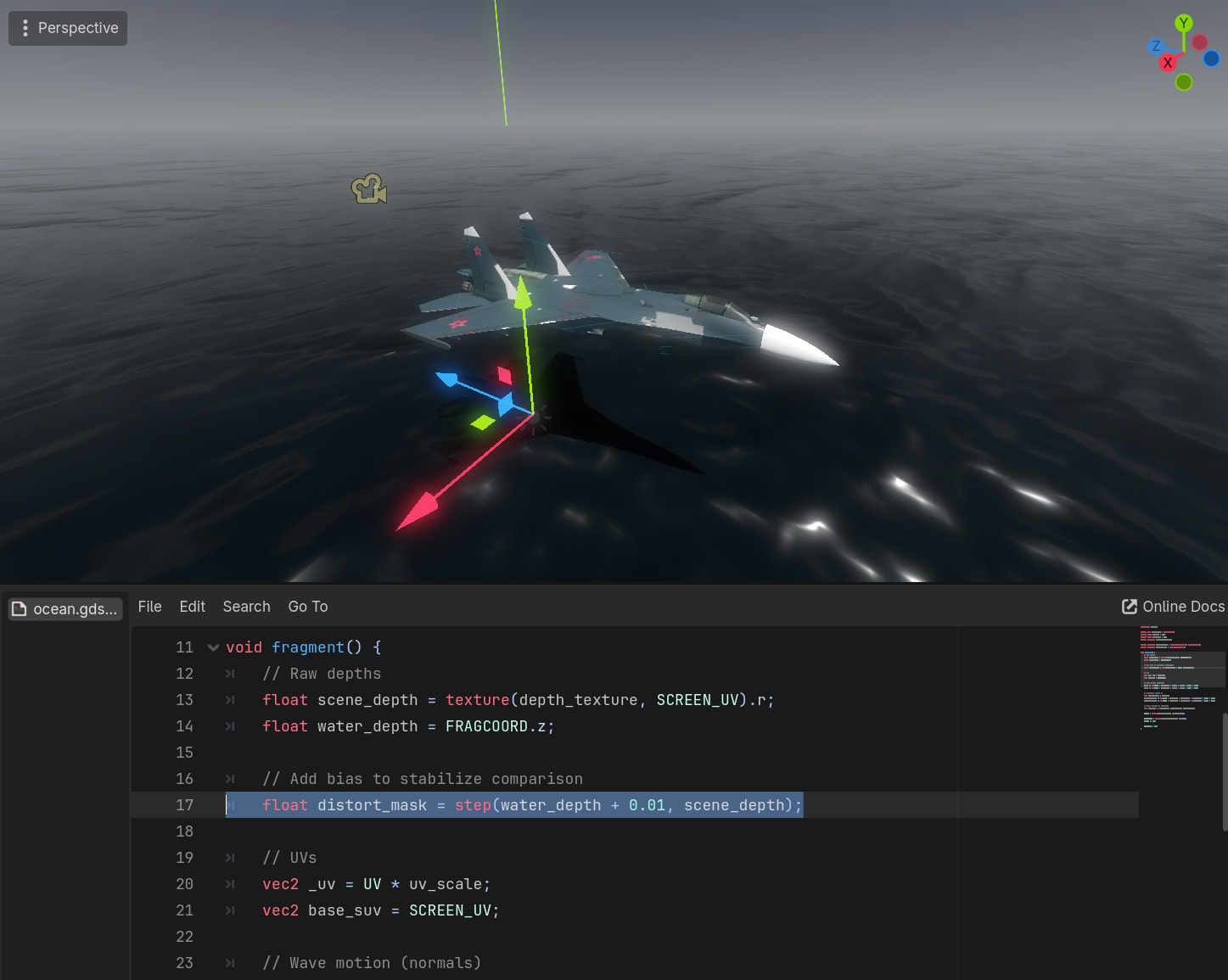

This was the solution:

float distort_mask = step(water_depth + 0.01, scene_depth);

I switched it from water_depth - 0.01 to water_depth + 0.01 and it worked.

Thanks again!
