Weird z-order in -z direction of heightmap shader (Solved: Was error in shader)

[michel]

Godot Version

4.5.1

Question

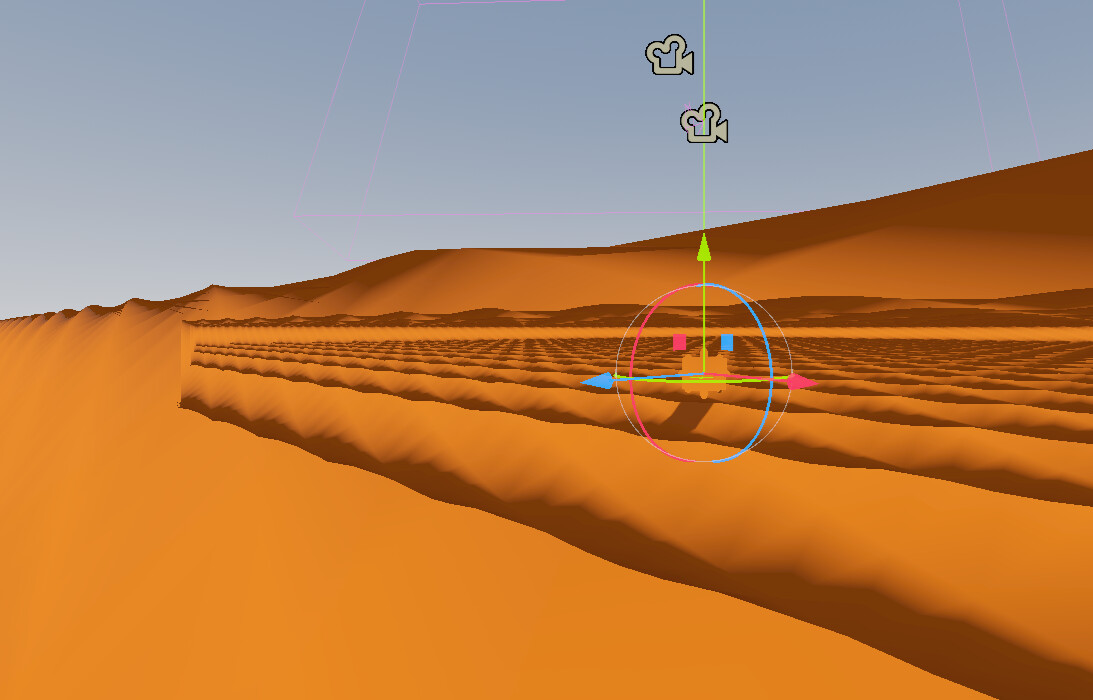

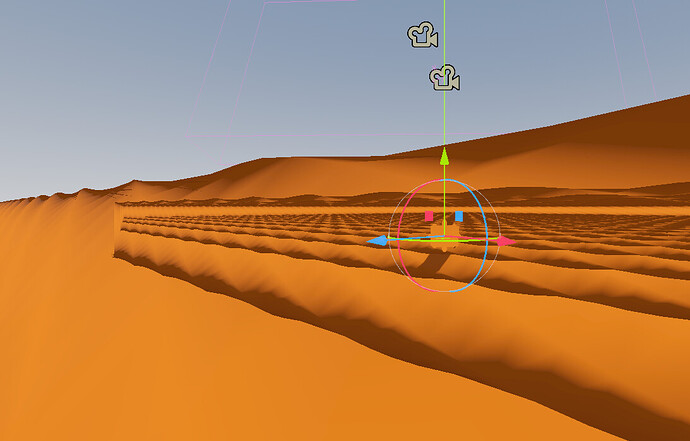

I’m seeing some weird visual effects in de -z direction of my heightmap shader that I don’t really understand.

It seems the drawing order is incorrect when the camera faces the -z direction.

Heightmap was created like this:

	_heightmap_image = Image.create(region_size, region_size, false, Image.FORMAT_RF)
	for x in range(0, region_size):
		for y in range(0, region_size):
			_heightmap_image.set_pixel(x, y, Color(sin(deg_to_rad((x*10 + y*50) % 360)) * 2.0, 0.0, 0.0, 0.0))

This is my shader code:

shader_type spatial;

// Contains the positions of the heightmaps (can never be more than 4)
uniform ivec2[4] _heightmap_pos;
// Heightmap images themselves (can never be more than 4)
uniform highp sampler2DArray _height_maps : repeat_disable;
// Region size
uniform int _region_size = 1024;

// Active world position
uniform ivec2 _world_position = ivec2(512, 512);
// Active world size
uniform ivec2 _active_world_size = ivec2(1024, 1024);

varying vec2 basePos;

varying flat int _image_index;
varying flat ivec2 _local_heightmap_pos;

int get_heightmap_index(float x, float y) {
	ivec2 region_pos = ivec2(int(floor((float(_world_position.x) + x) / float(_region_size))), int(floor((float(_world_position.y) + y) / float(_region_size))));

	int index = 0;
	while (index < 4)
	{
		if (_heightmap_pos[index] == region_pos)
			return index;
		index++;
	}

	return -1;
}

vec3 get_normal(vec2 uv, float texelSize) {
	float t = texelFetch(_height_maps, ivec3(_local_heightmap_pos.x, _local_heightmap_pos.y - 1, 0), _image_index).r;
	float r = texelFetch(_height_maps, ivec3(_local_heightmap_pos.x + 1, _local_heightmap_pos.y, 0), _image_index).r;
	float l = texelFetch(_height_maps, ivec3(_local_heightmap_pos.x - 1, _local_heightmap_pos.y, 0), _image_index).r;
	float b = texelFetch(_height_maps, ivec3(_local_heightmap_pos.x, _local_heightmap_pos.y + 1, 0), _image_index).r;

	return -normalize(vec3(2.0 * (r - l), 2.0 * (b - t), -4.0));
}

void vertex() {
	// Get the correct image index
	_image_index = get_heightmap_index(UV.x * float(_active_world_size.x), UV.y * float(_active_world_size.y));

	// Calculate proper UV
	_local_heightmap_pos = ivec2(
		int(mod( (float(_world_position.x) + UV.x * float(_active_world_size.x)) , float(_region_size) )),
		int(mod( (float(_world_position.y) + UV.y * float(_active_world_size.y)) , float(_region_size) ))
	);

	if (_image_index != -1)
	{
		VERTEX.y = texelFetch(_height_maps, ivec3(_local_heightmap_pos.x, _local_heightmap_pos.y, 0), _image_index).r;
		NORMAL = get_normal(UV, 1.0);
	}
}

void fragment() {
	ALBEDO=vec3(1.0, 0.2 + mod(basePos.x * 0.1 * basePos.y, 0.5), 0.0);
}

Mesh that is used to display was created like this:

	_static_body_3d = StaticBody3D.new()
	_static_body_3d.collision_layer = 0b1000000000000001
	_static_body_3d.collision_mask  = 0b1000000000000001

	# Calculate mesh dimensions based on number of active chunks
	var mesh_dimension: float = ((active_chunk_range - 1) * 2 + 1) * fg_terrain.chunk_size

	_mesh_instance_3d = MeshInstance3D.new()
	#_mesh_instance_3d.custom_aabb.size

	_shader_material = ShaderMaterial.new()
	_shader_material.shader = preload("uid://dvmru2ujiob2d")
	_shader_material.set_shader_parameter("_height_pos", [Vector2(0,0), Vector2.ZERO, Vector2.ZERO, Vector2.ZERO])
	_shader_material.set_shader_parameter("_height_maps", fg_terrain._rid)
	_shader_material.set_shader_parameter("_region_size", fg_terrain.region_size)
	_shader_material.set_shader_parameter("_world_position", Vector2(mesh_dimension / 2, mesh_dimension / 2))
	_shader_material.set_shader_parameter("_active_world_size", Vector2(mesh_dimension, mesh_dimension))

	_plane_mesh = PlaneMesh.new()
	_plane_mesh.size = Vector2(mesh_dimension - 1, mesh_dimension - 1)
	_plane_mesh.subdivide_width = _plane_mesh.size.x - 1
	_plane_mesh.subdivide_depth = _plane_mesh.size.y - 1
	_plane_mesh.material = _shader_material

	_mesh_instance_3d.mesh = _plane_mesh

	_static_body_3d.add_child(_mesh_instance_3d)

	add_child(_static_body_3d)

Anybody has any idea what causes this problem? I’ve been googling around, but can’t seem to find a solution.

[normalized]

Try rendering the wireframe to see what’s actually happening with the geometry.

[michel]

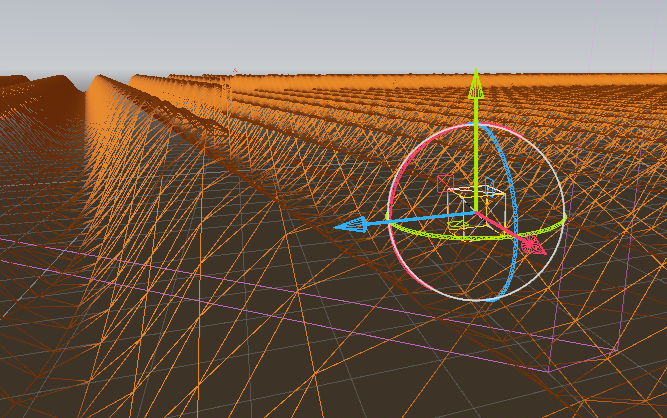

Here is a wireframe render.

the point where it partially disappears/changes order changes when moving the camera, and always starts at the crossover from +z to -z it seems. So I don’t think it’s the geometry itself. After all, it’s just a flat subdivided plane, with only the Y modified in height. So if it were the geometry, it would look the same when I rotate the camera.

[normalized]

For further debugging, render your heightmap as albedo without displacing the geometry. Btw, is there a specific reason why are you sampling with texelFetch() instead of texture()?

[michel]

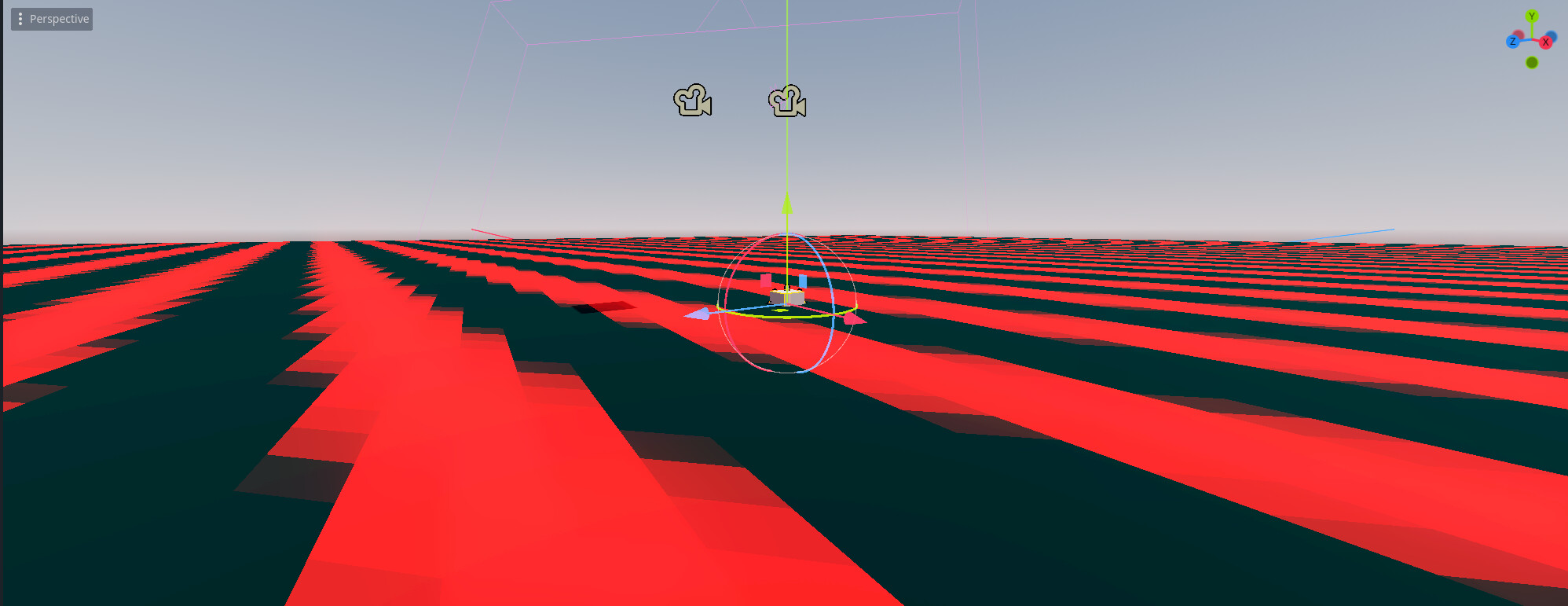

Here you go.

I believe texelFetch is somewhat faster than texture in this case because it skips additional filtering that is not needed for a heightmap (correct me if I’m wrong ), so that’s why.

[michel]

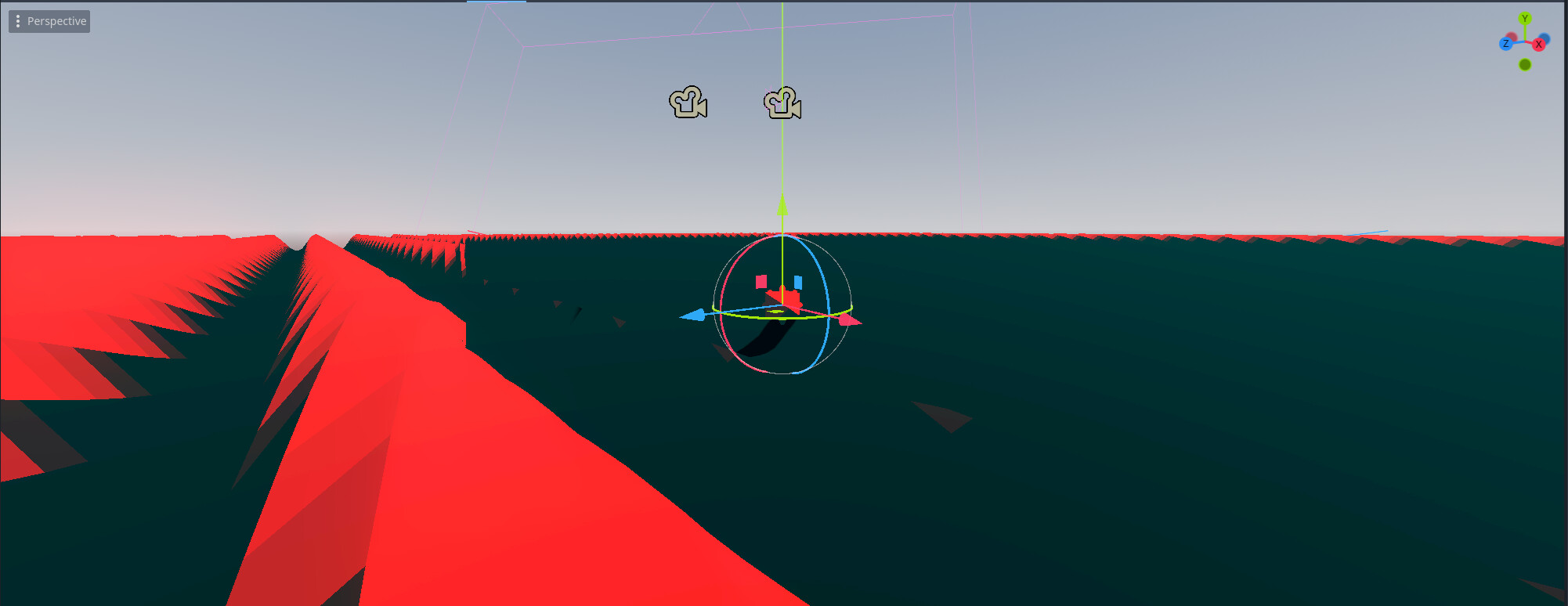

And same view, but WITH displacement

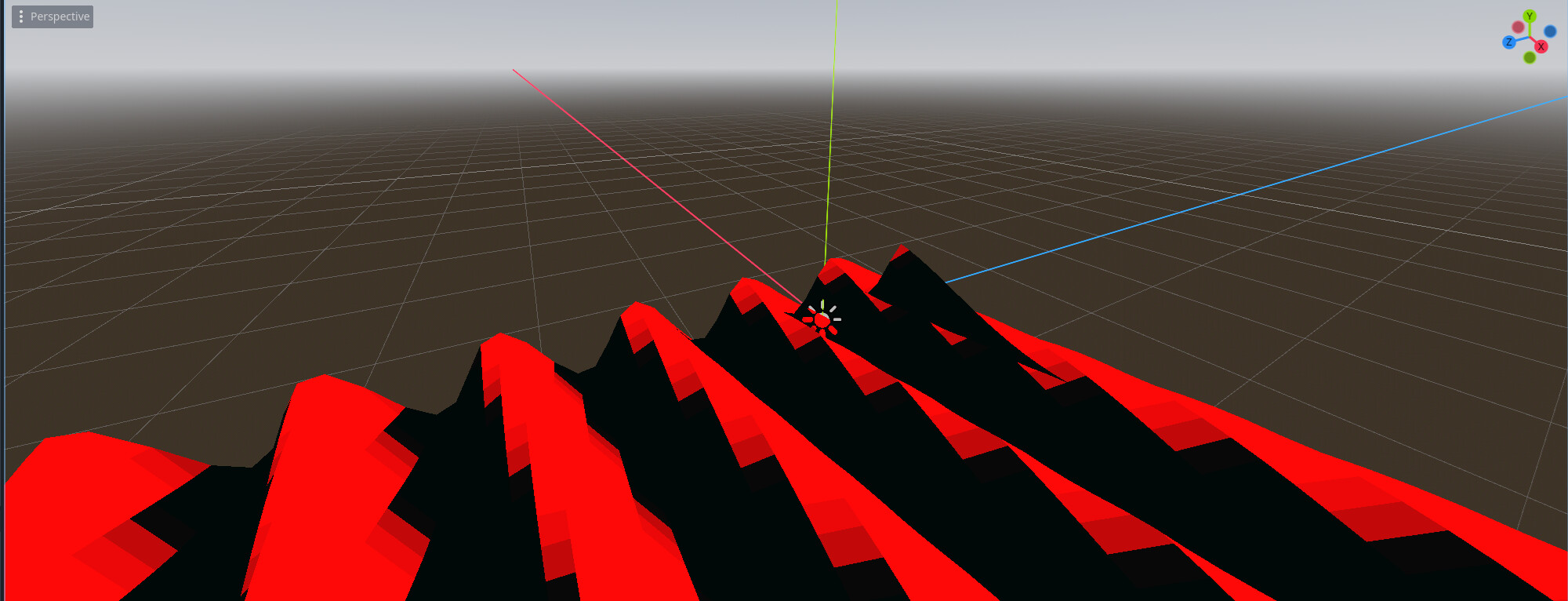

Here you can clearly see that the error starts occuring when crossing into the negative z

[michel]

Still no clue as to why this is happening, hoping someone has an idea

[normalized]

Can you make a minimal reproduction project and share it?

[michel]

Alright, I’ve created a sample project, and there the problem did NOT occur.

After scratching my head several times, I found that a piece of shader code, that I thought I had disabled by a boolean parameter, was in fact turned on.

That part was meant to draw a small circle on the terrain where the mouse was, but because the other parameters were NOT set, but the code was accidentally enabled, this totally went haywire .

Thank you for your time @normalized, I’m really happy to finally have this figured out (was scratching my head for days already)

[michel]

Alright, just to be a bit more precise. It wasn’t really that extra code. It was adding ALPHA=1.0 that caused the shader to work differently.

The real fix was either remove assigning something to the ALPHA, or adding the following at the top just below shader_type:

render_mode depth_draw_always, cull_disabled;

[normalized]

There was no ALPHA in the shader code you posted.

[michel]

Yes, I removed that code (for brevity), because I though it was deactivated. But despite that, it mattered anyway. So sorry for that.

[normalized]

Of course it mattered. When you write to ALPHA the object is sent down the transparent (instead of opaque) rendering pipeline.

[michel]

Well, that’s what I learned I guess

[normalized]

Also this: Always provide full actual context. When you get stuck like this you don’t get to decide what is relevant

[michel]

Yeah, you are right :-). I tried to reduce the garbage as to not flood the thread, but if I wanted to do that, I had to do that first in my own code to make sure that the problem stil exists.
