YSort doesn't seem to work on isometric tiles

Help
, ,
1

Godot Version

4.2.1

Question

I’m using a tileset with isometric tiles for my game. I turned on Ysort on the base node, the tileset, the tileset layer and the player and added a Ysort origin to the tiles I’m using.

But yet, Ysort doesn’t seem to work. I’ve searched it up and I really can’t find what I’m doing wrong.

2

Can you take a screenshot, I’d like more detail on it

3

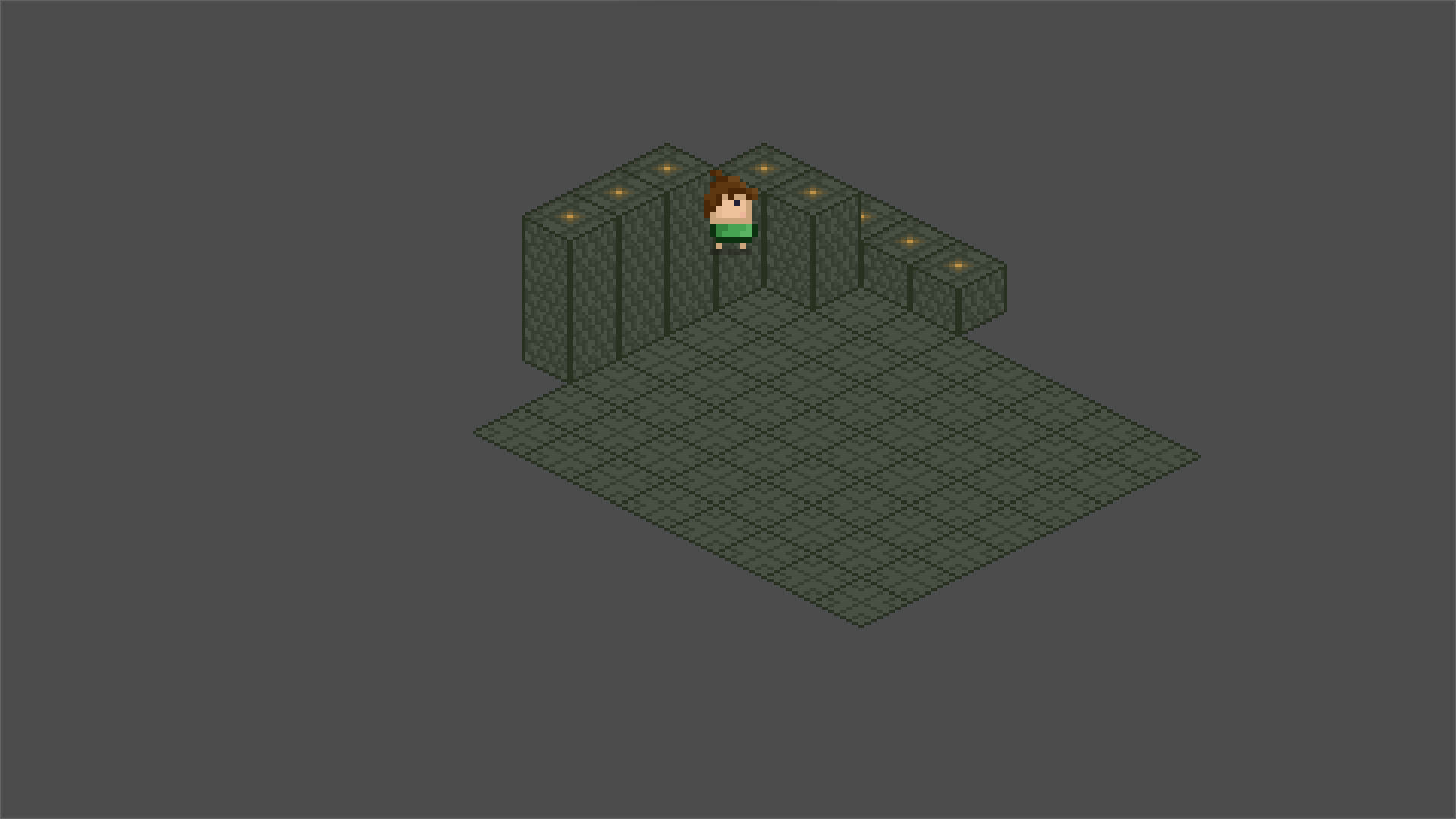

image1920×1080 294 KB

image1920×1080 19.6 KB

Ok, this is what it’s doing. The bottom one is in-game btw

4

Try setting Y_Sort_origin.

5

I’ve done that already

image1194×659 51.4 KB

Did I do it right?

6

Then try modifying Layers’ Y-Sort-Origin.

7

Yeah I also already tried that. Thanks for your help btw I really appreciate it

8

Ok I finally got it to work with some weird scaling on the actual tilemap. Once again, thanks for your help :slight_smile:

9

I have same issue, can you provide more info about fix?

10

I’m sorry that I’m a bit late. I’m definitely not really good at Godot, so I can’t promise that this will work. For me it worked when I scaled the tilemap to 1, 1. I think that Godot calculates YSort from the original scale or something. Did you also make sure that the layer you’re putting your tiles on is the same z-index as the player, and no individual tiles’s z-index is higher or lower?
I hope you already figured it out, but maybe this works

1 Like
11

Thanks for your reply!
Changing z-index on player and objects layer was the solution.

1 Like
