Drop-In Ragdoll: a ragdoll for any humanoid, at any scale (free)

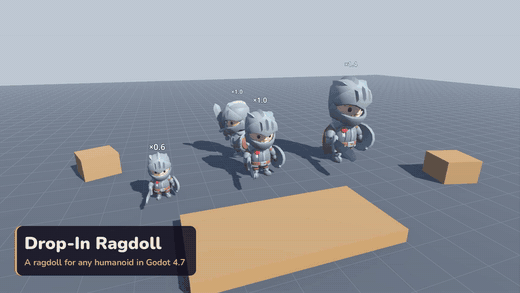

Drop-In Ragdoll trailer

I needed ragdolls for characters that are scaled (×1.3 in my game), and PhysicalBone3D shrinks the bones as soon as it simulates a scaled rig. So I built one that keeps the RigidBody3Ds outside the scaled tree, at the character’s real size, and writes the bone poses back from a SkeletonModifier3D. I’ve packaged it as an addon.

  • Finds the bones itself: Godot humanoid, Mixamo, Unreal/MPFB, Blender .L/.R, 3ds Max Biped, VRoid
  • Collision shapes fitted to the mesh around each bone
  • One-way elbows and knees, limits measured from the rest pose
  • get_up() blends back into the current animation
  • Godot 4.7 + Jolt Physics, pure GDScript, 91 tests

Free or pay what you want: Drop-In Ragdoll by debugalot
Write-up of the scaling problem and the fix: Why PhysicalBone3D ragdolls shrink scaled characters, and the fix · ExcaliBug

Feedback on rigs it doesn’t handle is very welcome.

3 Likes

This isn’t the first time I’ve run into this problem.

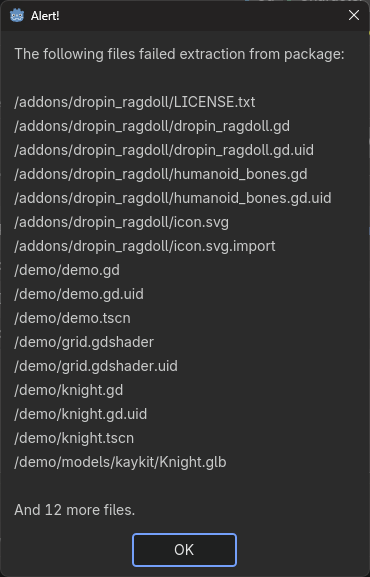

Can’t Godot open all ZIP files?

If I unzip it manually, the project loads fine.

There’s no payment option. Usually, before downloading, you’re offered the chance to pay if you want to, even if the app is free. I can’t pay right now — I live in a country under sanctions — but I might be able to in the future.

1 Like

Thanks for trying it, and for the report!

The zip: Sorry about that it had no folder entries. I fixed it with the newest Version 1.0.2 so it opens straight from the Project Manager.

The payment option: I had it turned off while I was setting up payouts on itch.io. I finished so the page offers it again. But don’t worry about paying since I made it free, a report like this helps me more than a tip would.

If you try it on a rig it doesn’t handle, let me know which one.

1 Like

Everything works perfectly; the project opened from the .zip file. :+1:

1 Like
