[2d] Throw item in the air with rotation and land on the exact position

Help
, ,
1

Godot Version

godot-4

Question

Hey friendly people! I want to spawn a weapon in my player position and then throw it in the air with a rotation and then I want it to land exactly in the middle of the weapon rack. I’ve tried tween approach, but this look very unnatural. So I guess there is an approach with RigidBody2d, but from my level it seems impossible to calculate correct initial impulse power and direction. So is there a way to do that? :smiley:

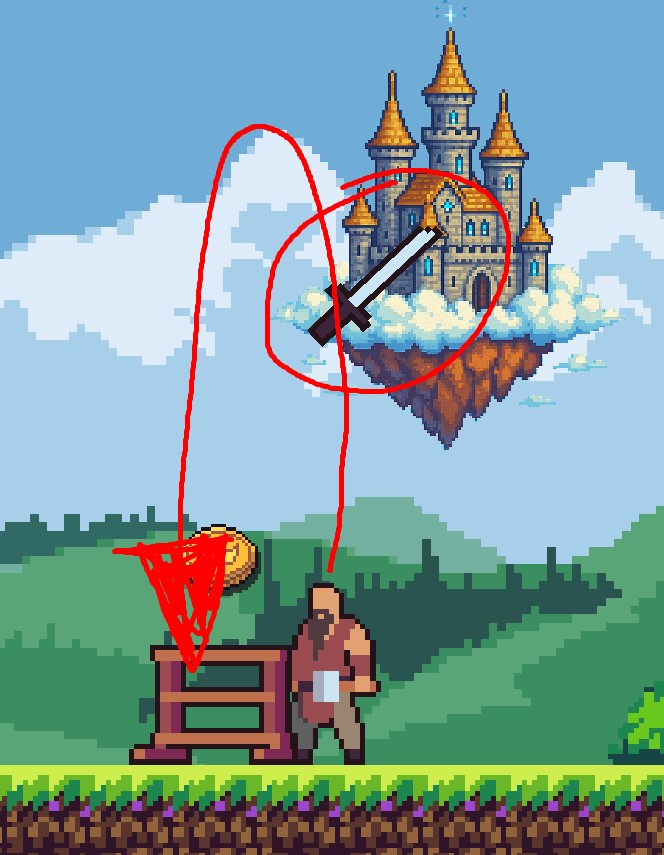

Screenshot_8
Screenshot_8664×855 108 KB

2

There are probably more elegant ways. But what about path2d? Then you add the weapon as Child and then the progress. Didnt use it for a while.. but could be an option, if it should take the same direction

1 Like
3

@hydraware 's method would work, or you could do a 2D ballistics solver (which sounds intimidating, but really isn’t that complicated). Personally, I’d probably fudge it with interpolation:

const FINAL_ANGLE:  float = PI      # 180 degrees
const ANGLE_TRAVEL: float = TAU * 2 # 720 degreees
const TRAVEL_TIME:  float = 2.25    # seconds
const THROW_HEIGHT: float = 50.0    # pixels

var time:    float
var src_pos: Vector2
var tgt_pos: Vector2

func fling_start(src: Vector2, tgt: Vector2) -> void:
    time    = 0.0
    src_pos = src
    tgt_pos = tgt

func fling_update(delta: float) -> bool:
    bool done = false
    time += delta

    if time >= TRAVEL_TIME:
        time = TRAVEL_TIME
        done = true

    var t: float = time / TRAVEL_TIME # Gives us between 0.0 and 1.0

    var x: float = lerp(src_pos.x, tgt_pos.x, t) # Get the horizontal position.
    var y: float = lerp(src_pos.y, tgt_pos.y, t) # Account for height difference.

    # Add a height curve.  t is (0..1), we subtract half and multiply by PI to
    # make the range (-PI/2 .. PI/2), which gives us the "hill" part of cosine.
    y += cos((t - 0.5) * PI) * THROW_HEIGHT

    # Set the position to our interpolated value, and interpolate a value for
    # rotation. Note that we're lerping backwards for the rotation so that we
    # wind up at FINAL_ANGLE.

    position = Vector2(x, y)
    rotation = FINAL_ANGLE + lerp(ANGLE_TRAVEL, 0.0, t)

    return done
2 Likes
4

You should stick with Tweens, they have tons of properties to tweak; can you post what you made with them so far?

5

At first blush it seems a bit complicated to use Tween to do a parabolic arc. The basic positions could be fed to Tween for lerping, as could the angle, but how does one get the “ballistic” altitude component with Tween?

6

Yeah, for tween it didn’t work smoothly enough, because the movement of the weapon was just with a consistent speed, but when we throw into the air items their speed changes.

So I explored a bit more and came in with this RigidBody2d and applying central force + torque. And on collision with bottom of that weapon rack I just freeze the object and reset it’s position.

Funny enough looks pretty smooth :smiley:
Here I made a short video how the code worked in the end: https://www.youtube.com/watch?v=Ho2eErJ2J2Y&ab_channel=IndieInk

func spawn_weapon() -> void:
	_current_weapon = CREATED_WEAPON.instantiate()

	add_child(_current_weapon)

	_current_weapon.global_position = get_tree().get_first_node_in_group(Player.GROUP_NAME).global_position

	animation_created_weapon(_current_weapon)


func animation_created_weapon(weapon: RigidBody2D) -> void:
	weapon.add_constant_torque(50)
	var middle: Vector2 = weapon_landing_marker.global_position - weapon.global_position

	middle.y -= LAUNCH_IN_THE_AIR_FORCE

	weapon.apply_central_force(middle/ 2)


func _on_weapon_landing_body_entered(body: Node2D) -> void:
	if body is CreatedWeapon:
		body.sleeping = true
		body.global_position = weapon_landing_marker.global_position
		body.rotation = 0
1 Like
7

If you are using lerp over time then it’s usually easy to convert to a tween, here’s approximately what you wrote as a Tween

const travel_time: float = 2.0
const arc_height: float = -200.0

var tween_x = sword.create_tween().set_parallel()
tween_x.tween_property(sword, "position:x", target_pos.x, travel_time)
tween_x.tween_property(sword, "rotation", TAU*2, travel_time).from(0)

var tween_arc := sword.create_tween().set_trans(Tween.TRANS_SINE)
tween_arc.tween_property(sword, "position:y", target_pos.y + arc_height, travel_time/2.0).set_ease(Tween.EASE_OUT)
tween_arc.tween_property(sword, "position:y", target_pos.y, travel_time/2.0).set_ease(Tween.EASE_IN)

Here’s a little video of it too!

5 Likes
8

Ah, ok, that makes sense.

9

Whoa! That looks dope!

And thank you all for your replies! I actually also played with tweens and lerps, so it was very helpful in my learning! <3

1 Like
