Character customization via Colorpicker

oberhauserjulia · January 5, 2024, 9:10pm

Godot Version

Godot 4.1.2

Question

Hey,

I’m currently programming a game and wanted my character to be editable via colorpicker. I watched a tutorial on youtube (https://youtu.be/uINVGMGA9Xw?si=HUAokFmUa2jNZxUK) and followed it. Unfortunately, when I start my game and try to open the colorpicker, I get the following error messages in the Script Code:

invalid call. nonexistent function ‘set_edit_alpha’ in base ‘Nil’
invalid call. nonexistent function ‘set_edit_alpha’ in base ‘Nil’

Does anyone know how I can fix this error?

Script Code

extends CanvasLayer

@export var eyeColorPicker:Control
@export var bodyColorPicker:Control
@export var body1ColorPicker:Control
@export var body2ColorPicker:Control
@export var body1Container:Control
@export var body2Container:Control

var eyeColorPopup
var bodyColorPopup
var body1ColorPopup
var body2ColorPopup

func _ready():
	call_deferred("deferred_ready")
#
#
func deferred_ready():
	eyeColorPicker.set_edit_alpha(false)
	bodyColorPicker.set_edit_alpha(false)
	body1ColorPicker.set_edit_alpha(false)
	body2ColorPicker.set_edit_alpha(false)


func _on_eye_color_picker_picker_created():
	eyeColorPopup = eyeColorPicker.get_popup()
	reposition_popup(eyeColorPopup)

func _on_eye_color_picker_pressed():
	reposition_popup(eyeColorPopup)


func _on_body_color_picker_pressed():
	reposition_popup(bodyColorPopup)

func _on_body_color_picker_picker_created():
	reposition_popup(bodyColorPopup)


func _on_body_detail_picker_1_picker_created():
	reposition_popup(body1ColorPopup)

func _on_body_detail_picker_1_pressed():
	reposition_popup(body1ColorPopup)


func _on_body_detail_picker_2_picker_created():
	reposition_popup(body2ColorPopup)

func _on_body_detail_picker_2_pressed():
	reposition_popup(body2ColorPopup)


func _on_toggle_color_body_details_button_toggled(button_pressed):
	body1Container.visible = button_pressed
	body2Container.visible = button_pressed

func reposition_popup(windowPopup:Node):
	windowPopup.set_position(Vector2i(20,20))

Shader Code

shader_type canvas_item;

uniform vec4 newColorBody : source_color;
uniform vec4 oldColorBody : source_color;
uniform vec4 newColorEyes : source_color;
uniform vec4 oldColorEyes : source_color;
uniform vec4 newColor1 : source_color;
uniform vec4 oldColor1 : source_color;
uniform vec4 newColor2 : source_color;
uniform vec4 oldColor2 : source_color;


uniform float precision : hint_range (0.0, 1.0, 0.1);
uniform float onlyPickMainColor : hint_range (0.0, 1.0, 1.0);

float when_lt (float x, float y) {
	return max(sign(y - x), 0.0);
}

float and (float a, float b) {
	return a * b;
}

float not1 (float a) {
	return 1.0 - a;
}

float diff (float a, float b) {
	return a - b;
}

vec3 rgb2hsv(vec3 c) {
    vec4 K = vec4(0.0, -1.0 / 3.0, 2.0 / 3.0, -1.0);
    vec4 p = mix(vec4(c.bg, K.wz), vec4(c.gb, K.xy), step(c.b, c.g));
    vec4 q = mix(vec4(p.xyw, c.r), vec4(c.r, p.yzx), step(p.x, c.r));

    float d = q.x - min(q.w, q.y);
    float e = 1.0e-10;
    return vec3(abs(q.z + (q.w - q.y) / (6.0 * d + e)), d / (q.x + e), q.x);
}

vec3 hsv2rgb(vec3 c) {
    vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
    vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
    return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}

void fragment() {
	vec4 currentColor = texture(TEXTURE, UV);

	vec3 currentHSV = rgb2hsv(oldColorBody.rgb);
	float currentV = currentHSV.z;
	vec3 newBodyHSV = rgb2hsv (newColorBody.rgb);
	float newBodyV = newBodyHSV.z;
	float diffV = diff(newBodyV, currentV);

	vec3 newColor1HSV = rgb2hsv(oldColor1.rgb);
	float newColor1V = newColor1HSV.z + diffV;
	newColor1HSV = vec3(newColor1HSV.x, newColor1HSV.y, newColor1V);
	vec3 newColor1RGB = hsv2rgb(newColor1HSV);

	vec3 newColor2HSV = rgb2hsv(oldColor2.rgb);
	float newColor2V = newColor2HSV.z + diffV;
	newColor2HSV = vec3(newColor2HSV.x, newColor2HSV.y, newColor2V);
	vec3 newColor2RGB = hsv2rgb(newColor2HSV);


	//COLOR = vec4 (0.0, 0.0, 0.0, 0.0);

	COLOR += newColorBody * when_lt(distance(currentColor, oldColorBody), precision);
	COLOR += newColorEyes * when_lt(distance(currentColor, oldColorEyes), precision);


	COLOR  += newColor1 * and(not1(onlyPickMainColor), when_lt(distance(currentColor, oldColor1), precision));
	COLOR  += newColor2 * and(not1(onlyPickMainColor), when_lt(distance(currentColor, oldColor2), precision));

	COLOR += vec4(newColor1RGB.r, newColor1RGB.g, newColor1RGB.b, newColor1.a) *
	and (onlyPickMainColor, when_lt(distance(currentColor, oldColor1), precision));
	COLOR += vec4(newColor2RGB.r, newColor2RGB.g, newColor2RGB.b, newColor2.a) *
	and (onlyPickMainColor, when_lt(distance(currentColor, oldColor2), precision));

	vec4 currentColorMod = COLOR;

	COLOR += currentColor * when_lt(distance(vec4(0.0, 0.0, 0.0, 0.0), currentColorMod), precision);
}

mrcdk · January 6, 2024, 7:47am

Did you add all the color pickers in the exported variables?

oberhauserjulia · January 6, 2024, 11:45am

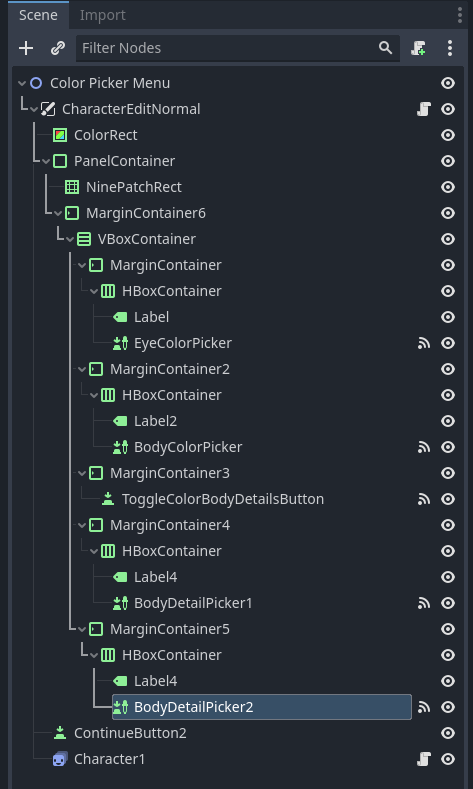

Yes, I have added all ColorPickers to the exported variables. Or have I done something wrong?

# Code Snippet from the script code
@export var EyeColorPicker:Control
@export var BodyColorPicker:Control
@export var BodyDetailPicker1:Control
@export var BodyDetailPicker2:Control
@export var body1Container:Control
@export var body2Container:Control

alextheukrainian · January 6, 2024, 11:52am

Export variables show up on the right side of the editor in a tab called Inspector. That’s where you need to set them.

OR just assign a default value in code, ex:

@export var EyeColorPicker: Control = %EyeColorPicker

^ this assuming you right-clicked EyeColorPicker in the scene tree first and selected “% Access as Unique Name”. Rinse-repeat for every “export var” control.

oberhauserjulia · January 6, 2024, 12:51pm

Thank you very much, that worked. Unfortunately, when I change the color in the color picker, the color on the AnimatedSprite2D does not change. Could it be that I have not inserted this line (COLOR = vec4 (0.0, 0.0, 0.0, 0.0) in my shader code? I have commented it out, otherwise my AnimatedSprite2D will no longer be displayed on the screen.

shader_type canvas_item;

uniform vec4 newColorBody : source_color;
uniform vec4 oldColorBody : source_color;
uniform vec4 newColorEyes : source_color;
uniform vec4 oldColorEyes : source_color;
uniform vec4 newColor1 : source_color;
uniform vec4 oldColor1 : source_color;
uniform vec4 newColor2 : source_color;
uniform vec4 oldColor2 : source_color;


uniform float precision : hint_range (0.0, 1.0, 0.1);
uniform float onlyPickMainColor : hint_range (0.0, 1.0, 1.0);

float when_lt (float x, float y) {
	return max(sign(y - x), 0.0);
}

float and (float a, float b) {
	return a * b;
}

float not1 (float a) {
	return 1.0 - a;
}

float diff (float a, float b) {
	return a - b;
}

vec3 rgb2hsv(vec3 c) {
    vec4 K = vec4(0.0, -1.0 / 3.0, 2.0 / 3.0, -1.0);
    vec4 p = mix(vec4(c.bg, K.wz), vec4(c.gb, K.xy), step(c.b, c.g));
    vec4 q = mix(vec4(p.xyw, c.r), vec4(c.r, p.yzx), step(p.x, c.r));

    float d = q.x - min(q.w, q.y);
    float e = 1.0e-10;
    return vec3(abs(q.z + (q.w - q.y) / (6.0 * d + e)), d / (q.x + e), q.x);
}

vec3 hsv2rgb(vec3 c) {
    vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
    vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
    return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}

void fragment() {
	vec4 currentColor = texture(TEXTURE, UV);

	vec3 currentHSV = rgb2hsv(oldColorBody.rgb);
	float currentV = currentHSV.z;
	vec3 newBodyHSV = rgb2hsv (newColorBody.rgb);
	float newBodyV = newBodyHSV.z;
	float diffV = diff(newBodyV, currentV);

	vec3 newColor1HSV = rgb2hsv(oldColor1.rgb);
	float newColor1V = newColor1HSV.z + diffV;
	newColor1HSV = vec3(newColor1HSV.x, newColor1HSV.y, newColor1V);
	vec3 newColor1RGB = hsv2rgb(newColor1HSV);

	vec3 newColor2HSV = rgb2hsv(oldColor2.rgb);
	float newColor2V = newColor2HSV.z + diffV;
	newColor2HSV = vec3(newColor2HSV.x, newColor2HSV.y, newColor2V);
	vec3 newColor2RGB = hsv2rgb(newColor2HSV);


	//COLOR = vec4 (0.0, 0.0, 0.0, 0.0);

	COLOR += newColorBody * when_lt(distance(currentColor, oldColorBody), precision);
	COLOR += newColorEyes * when_lt(distance(currentColor, oldColorEyes), precision);


	COLOR  += newColor1 * and(not1(onlyPickMainColor), when_lt(distance(currentColor, oldColor1), precision));
	COLOR  += newColor2 * and(not1(onlyPickMainColor), when_lt(distance(currentColor, oldColor2), precision));

	COLOR += vec4(newColor1RGB.r, newColor1RGB.g, newColor1RGB.b, newColor1.a) *
	and (onlyPickMainColor, when_lt(distance(currentColor, oldColor1), precision));
	COLOR += vec4(newColor2RGB.r, newColor2RGB.g, newColor2RGB.b, newColor2.a) *
	and (onlyPickMainColor, when_lt(distance(currentColor, oldColor2), precision));

	vec4 currentColorMod = COLOR;

	COLOR += currentColor * when_lt(distance(vec4(0.0, 0.0, 0.0, 0.0), currentColorMod), precision);
}

alextheukrainian · January 6, 2024, 2:12pm

that’s more than 3 lines of shader code which means I’m completely lost, sorry =)
