Having difficult time creating semi circular texture progress

Help
,
1

Godot Version

4.6

Question

I’m trying to create simple arc-shaped progress using TextureProgressBar.

I’m using this as my progress texture:

progress
progress549×549 3.01 KB

Since it always starts at 0 degrees (12 o’clock), my assumption is that I could set the Initial Angle to -70 and the Fill Degrees to 140 which would start at the left side of the red area, then arc towards the green.

However, I cannot set Initial Angle to anything lower than 0 degrees. So the progress always starts at 0 degrees (12 o’clock) even though I would like it to start at about 9:30.

How can I make this work?

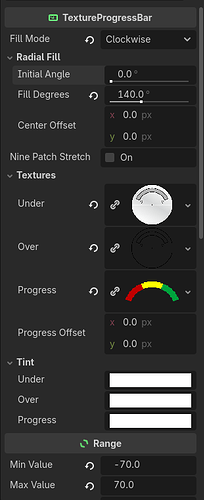

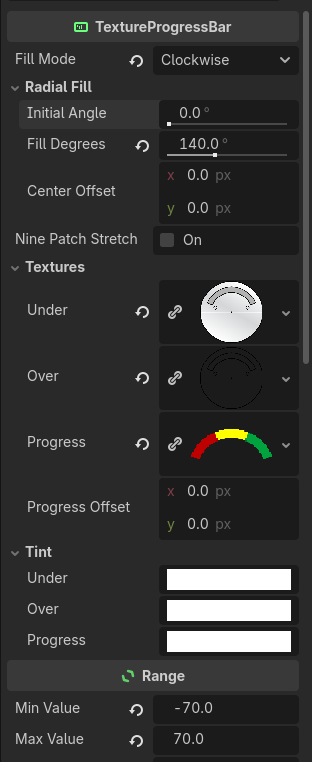

Here’s a screenshot of my current setup:

image312×762 28 KB

2

Rotate the node.

3

I’ve never used this but could you start at 270 as the initial angle and end at 90.

4

Not sure what you mean?

5

Rotate the whole node so that 12 o’clock becomes 9:30 o’clock.

6

This is the solution!

I wasn’t certain of how Initial Angle and Fill Degrees work but after some testing, I found the correct numbers.

Since the starting angle is 0 at 12 o’clock, the initial Angle for my graphic is 290
My color arc is a 140 degrees so Fill Degrees = 140 makes sense too.
