Having difficulties to make UI

Help
1

Hi, I’m trying to make a UI with 2 sub UI, at first I was creating scene and import them in the main UI scene but I’m trying to do it with importing node object.

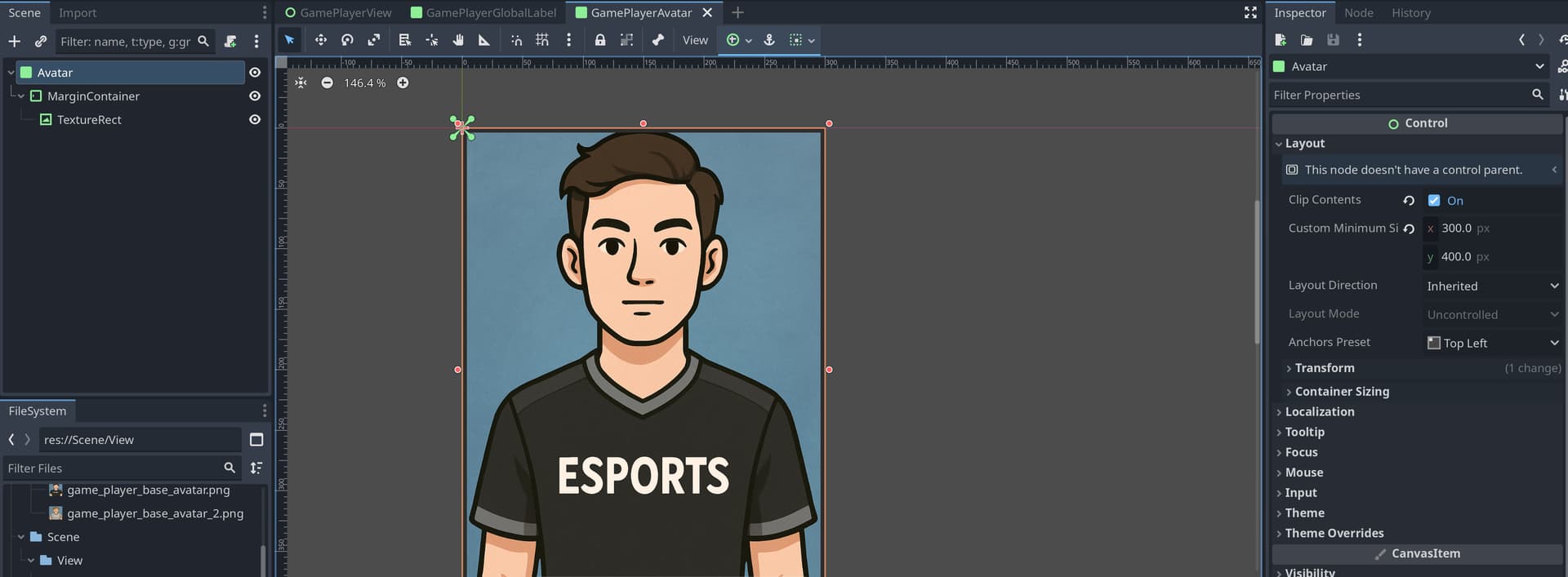

I have two node object, the first one is an avatar with a border and a size of 300/400 to keep it’s ratio

image1920×707 76.8 KB

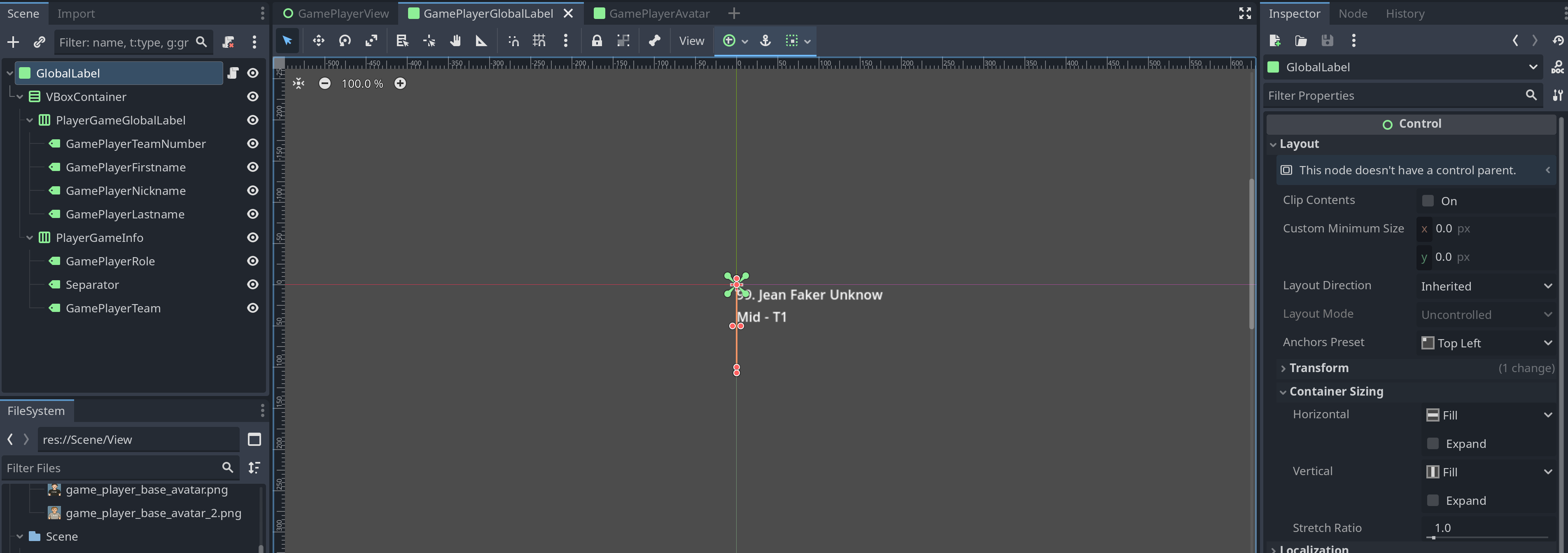

The second is some label organized in HBox and VBox but no size defined
image3808×1342 328 KB

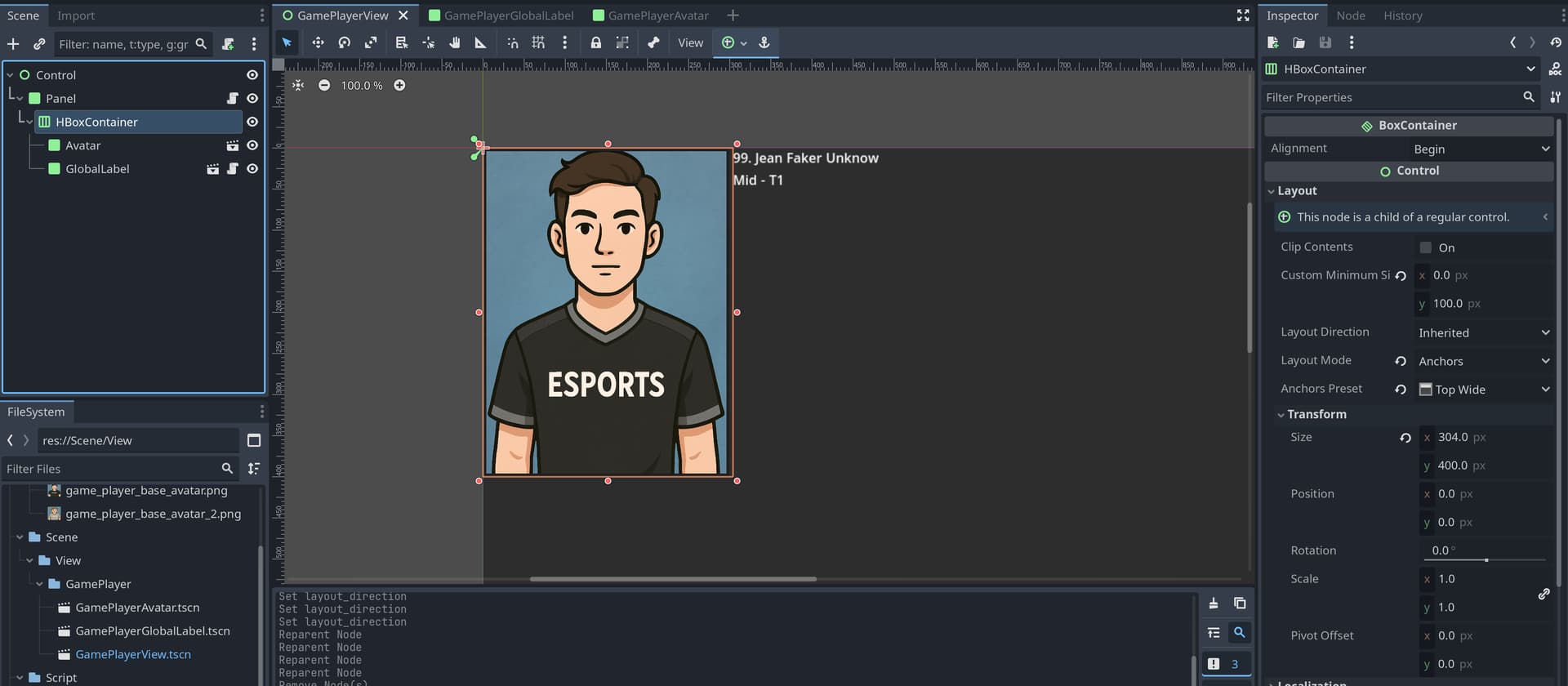

And at last I’m trying to import the two of them in a main UI

image1920×840 89.6 KB

But I want for the HBox of this UI to be 100 pixel and not more, but it adapt to the max size of the avatar. And if I adjust the scale it scale down the labels too.

How can I make it?

2

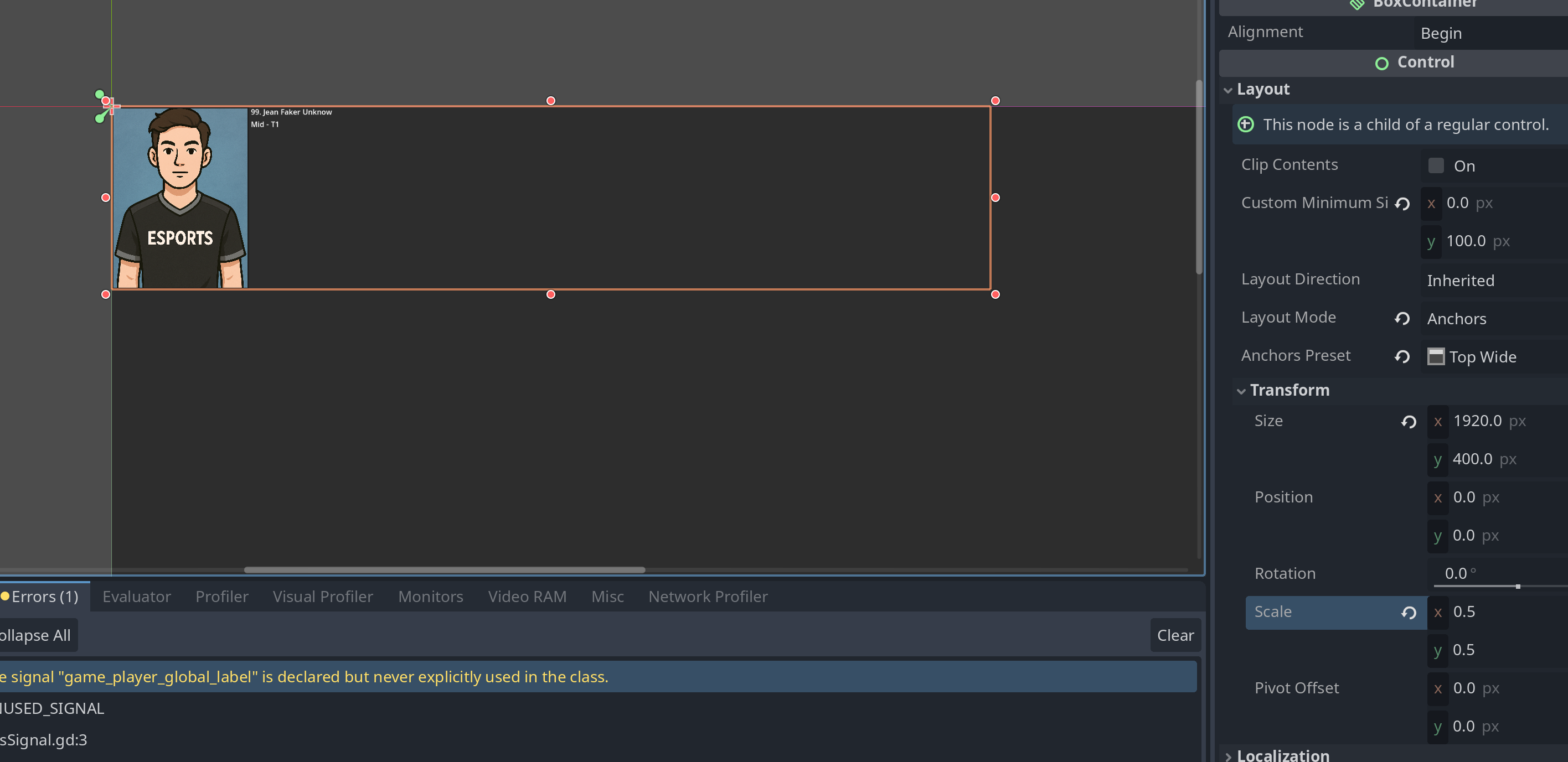

With 0.5 scale:

image2832×1377 329 KB

3

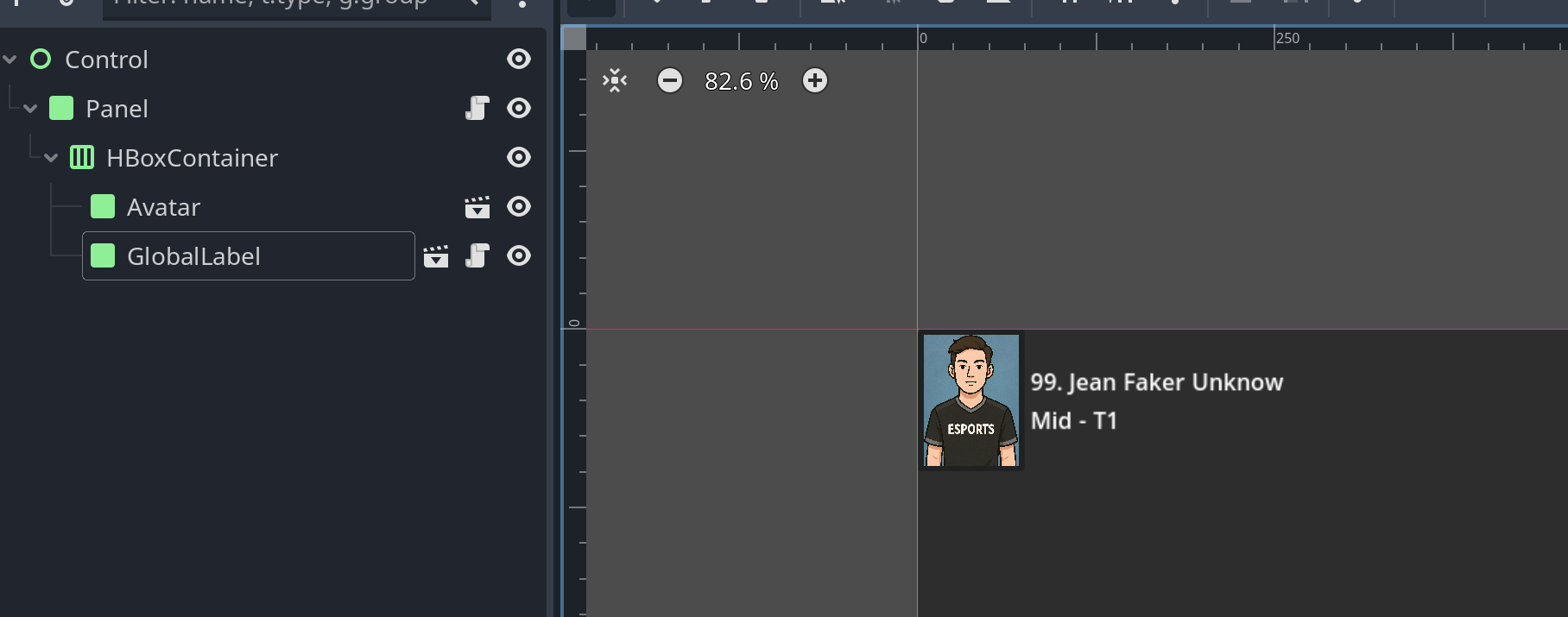

What I want without changing the pixel size of each element:

image1816×715 70.7 KB

But in this case I changed the Avatar height to 100px, I want it to auto change it’s height with its container height

4

A Control node size can’t go lower than the minimum size of its children. If your avatar minimum y size is 400 px you can’t make a Control parent be smaller than those 400 px.

You’ll need to change your avatar Panel to be a PanelContainer so it will automatically adapt the size of its children and you’ll need to play with the TextureRect.expand_mode and TextureRect.stretch_mode so it grows or gets smaller with the panel.

Then you’ll be able to make rows whatever minimum size you want.

1 Like
5

Thanks @mrcdk, it works. Didn’t know that PanelContainer existed!
