How to make tiles that occlude shadows but not themselves in Godot 4

Help
1

Godot 4

I’m trying to get the tiles in a tilemaplayer to create a shadow instead of casting a shadow on themselves. I’m using a DirectionalLight2D for “darkness” and a PointLight2D for light.

great_bug
great_bug1074×746 5.05 KB

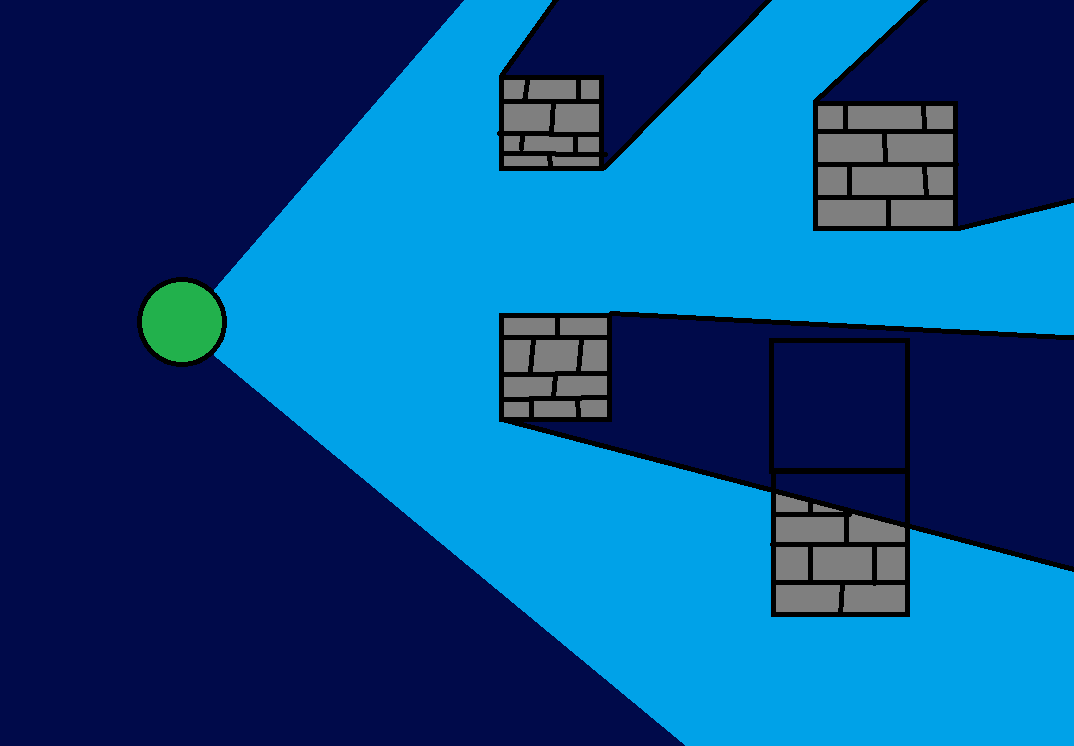

like that: Like that, you can see the tiles but not behind them

2

Add an occlusion layer to the tile set, create occlusion polygons for tiles and enable shadow casting for the light.

3

buuugggg

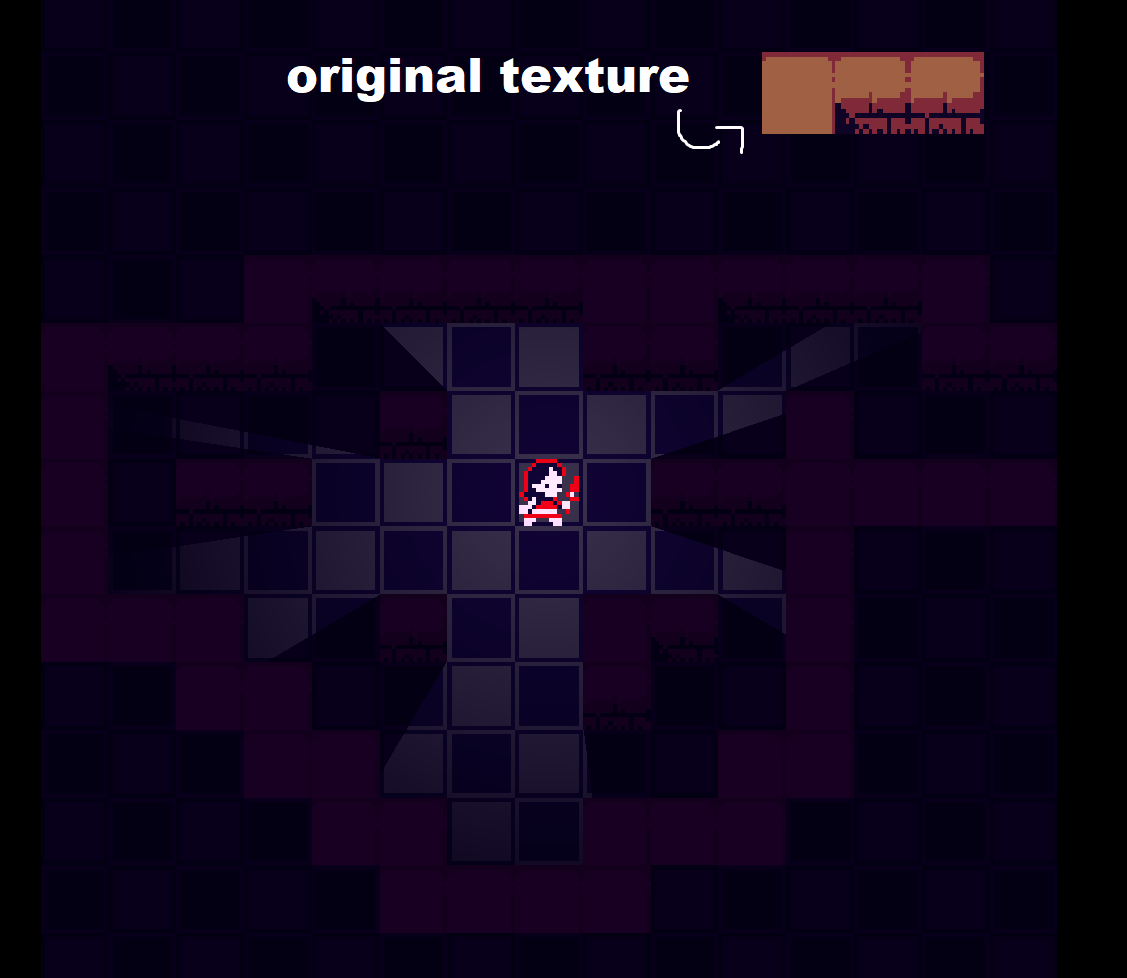

buuugggg1127×978 32.2 KB

I already tried it (sorry for not giving that information). The problem is that the tiles are occluding themselves

4

Add another layer over it.

5

I solved it the problem was that I confused light mask and item cull mask /: thanks for the reply

6

Hey, I have the same issue, could you maybe explain in more detail how to do this?

7

I never actually managed to do it my closest “solution” was to have two tilemaps: one that lights up and one that occludes, also having an extra light for the tilemap that lights up.

maybe

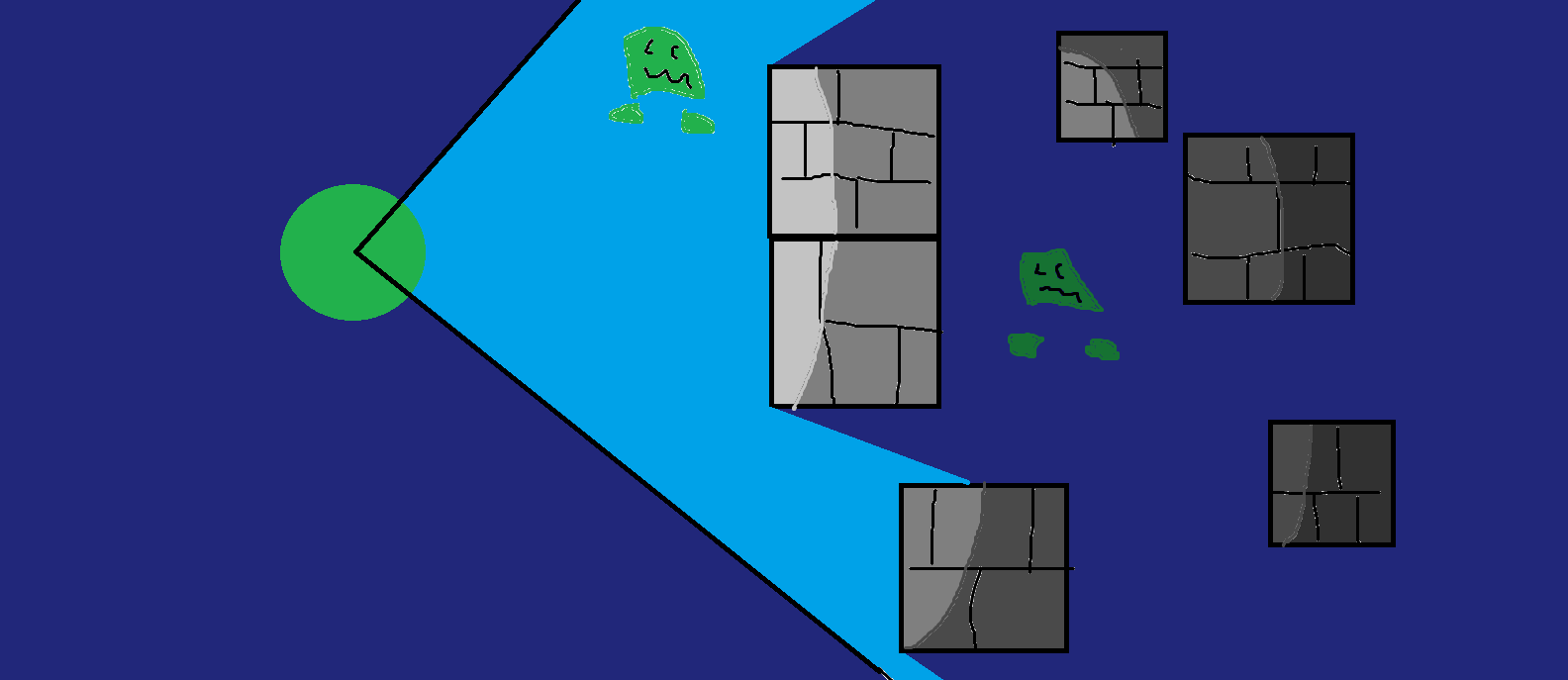

maybe1584×687 14.2 KB

That’s the result the tilemap doesn’t occlude itself, but it does occlude other things.
