Godot Version
4.4.1
Question
Iam making a Client Prediction / Server Reconciliation System for my game, will be a open fight game 3x3 like Marvel Rivals style, a battegrounds bassicaly, but my system is having a lot of reconciliations even with 0 ms, mainly when iam moving the character while he is falling, i tried tutorials, saw some code, but still having the problems, i want to know what i need to fix since its my first time doing this system, the video will show the problem:
When it prints "Difference studs from server is " means the reconciliation is necessary and it happens, you can see the jittlers while moving while falling, it happens sometimes too when not falling even with 0 ms.
using Godot;
using Godot.Collections;
using System;
using System.Collections.Generic;
using System.Linq;
public partial class Character : CharacterBody3D
{
[Export]
protected Player player;
protected RingBuffer<TransformState> transformStates;
protected RingBuffer<InputState> inputStates;
protected Queue<InputState> inputsQueue;
protected CharacterSettings characterSettings;
protected bool initialized = false;
protected double characterStarted;
protected float ticksTime;
protected int currentTick;
protected int lastTickInputChecked;
protected InputState lastInputState;
public Player Player
{
get { return player; }
}
public void Initialize(Player player)
{
inputsQueue = new Queue<InputState>();
lastTickInputChecked = -1;
initialized = true;
ticksTime = 1.0F / Main.worldSettings.TickRate;
characterSettings = JSONReader<CharacterSettings>.DeserializeFile("res://Shared/Settings/Character.json");
transformStates = new(characterSettings.MaxBufferSize);
inputStates = new(characterSettings.MaxBufferSize);
characterStarted = Time.GetUnixTimeFromSystem();
lastInputState = new InputState
{
InputDirection = new Vector2(0, 0),
Tick = currentTick
};
inputStates.Set(currentTick, lastInputState);
this.player = player;
SetPhysicsProcess(true);
}
public override void _Ready()
{
GlobalPosition = new Vector3(0, 10, 0);
if (!Multiplayer.IsServer())
{
RpcId(1, nameof(RequestedStartInfos));
}
}
public override void _PhysicsProcess(double delta)
{
if (!initialized) return;
SimulateEverything((float) delta, currentTick, false);
currentTick++;
}
//this just happens once, when the character is spawned
public virtual void SpawnReconciliation(TransformState serverState, double latency)
{
if (serverState.Processed)
{
GlobalPosition = serverState.Position;
Velocity = serverState.Velocity;
transformStates.Set(currentTick, new TransformState
{
Tick = currentTick,
Position = GlobalPosition,
Velocity = Velocity,
Processed = true
});
}
int tickAmounts = Convert.ToInt32((float)latency / ticksTime);
int count = 0;
while (count <= tickAmounts)
{
SimulateEverything(ticksTime, currentTick, true);
currentTick++;
count++;
}
}
public virtual void SimulateEverything(float delta, int tick, bool reconciling)
{
SimulateGravity(delta, tick);
Godot.Collections.Dictionary<long,int> clientsToReconciliating = new Godot.Collections.Dictionary<long, int>();
if (!Multiplayer.IsServer())
{
if (!reconciling)
{
Vector2 inputDirection = Input.GetVector("move_left", "move_right", "move_forward", "move_backward");
InputState newInputState = new InputState
{
InputDirection = inputDirection,
Tick = tick
};
if (newInputState.InputDirection != lastInputState.InputDirection)
{
RpcId(1, nameof(ClientInputReceived), newInputState.ToDictionary());
}
lastInputState = newInputState;
}
inputStates.Set(tick, lastInputState);
SimulateMovement(delta, tick);
}
else
{
if (inputsQueue.Count == 0)
{
lastTickInputChecked = -1;
inputStates.Set(tick, lastInputState);
SimulateMovement(delta, tick);
}
else
{
while (inputsQueue.Count > 0)
{
InputState currentState = inputsQueue.Dequeue();
lastInputState = currentState;
inputStates.Set(tick, currentState);
SimulateMovement(delta, tick);
clientsToReconciliating.Add(currentState.PeerId, currentState.Tick);
}
}
}
MoveAndSlide();
TransformState newState = new TransformState
{
Tick = tick,
Position = GlobalPosition,
Velocity = Velocity,
Processed = true
};
transformStates.Set(tick, newState);
if (Multiplayer.IsServer())
{
Dictionary stateDictionary = newState.ToDictionary();
foreach (var value in clientsToReconciliating)
{
stateDictionary["Tick"] = value.Value;
RpcId(value.Key, nameof(LocalClientReconciliation), stateDictionary);
}
}
}
public virtual void SimulateMovement(float delta, int tick)
{
InputState tickInputState = inputStates.Get(tick);
Vector3 moveDirection = new(-tickInputState.InputDirection.X, 0, tickInputState.InputDirection.Y);
Vector3 currentVelocity = Velocity;
moveDirection = moveDirection.Normalized();
moveDirection = new Vector3(moveDirection.X * (characterSettings.Speed * delta), 0, moveDirection.Z * (characterSettings.Speed * delta));
Velocity = new Vector3(moveDirection.X, currentVelocity.Y, moveDirection.Z);
}
public virtual void SimulateGravity(float delta, int tick)
{
Vector3 gravityVector = new Vector3(0, Main.worldSettings.Gravity * delta, 0);
Velocity -= gravityVector;
}
//the reconciliation code
public virtual void Reconciliation(TransformState serverState)
{
TransformState clientState = transformStates.Get(serverState.Tick);
float diferenceFromServer = serverState.Position.DistanceTo(clientState.Position);
if (diferenceFromServer >= 0.01f)
{
GD.Print("Difference studs from server is ", diferenceFromServer);
GlobalPosition = serverState.Position;
Velocity = serverState.Velocity;
int count = serverState.Tick;
while (count <= currentTick)
{
SimulateEverything(ticksTime, count, true);
count++;
}
}
}
//Client received the start character position / when it started move
[Rpc(MultiplayerApi.RpcMode.AnyPeer, TransferMode = MultiplayerPeer.TransferModeEnum.Reliable)]
public void ServerStartInfos(NodePath player, double serverTime, Dictionary transformDictionary)
{
if (Multiplayer.IsServer() || Multiplayer.GetRemoteSenderId() != 1) return;
double receivedTime = Time.GetUnixTimeFromSystem();
double latency = receivedTime - serverTime;
Initialize(GetNode(player) as Player);
SpawnReconciliation(TransformState.ToStruct(transformDictionary), latency);
}
//Client received the message from server to reconciliate
[Rpc(MultiplayerApi.RpcMode.AnyPeer, TransferMode = MultiplayerPeer.TransferModeEnum.Reliable)]
public void LocalClientReconciliation(Dictionary transformDictionary) {
Reconciliation(TransformState.ToStruct(transformDictionary));
}
//Server send for the client character current position / when it started move, just happens when the character spawn first time
[Rpc(MultiplayerApi.RpcMode.Authority, TransferMode = MultiplayerPeer.TransferModeEnum.Reliable)]
public void RequestedStartInfos()
{
long peerId = Multiplayer.GetRemoteSenderId();
RpcId(peerId, nameof(ServerStartInfos), player.GetPath(), characterStarted, transformStates.Get(currentTick).ToDictionary());
}
//Client send for server the input
[Rpc(MultiplayerApi.RpcMode.Authority, TransferMode = MultiplayerPeer.TransferModeEnum.Reliable)]
public void ClientInputReceived(Dictionary inputDictionary)
{
InputState newInputState = InputState.ToStruct(inputDictionary);
newInputState.PeerId = Multiplayer.GetRemoteSenderId();
inputsQueue.Enqueue(newInputState);
}
}
Code have annotations, if you want try it have the github code GitHub - TenerKeven/universeroyale: my game

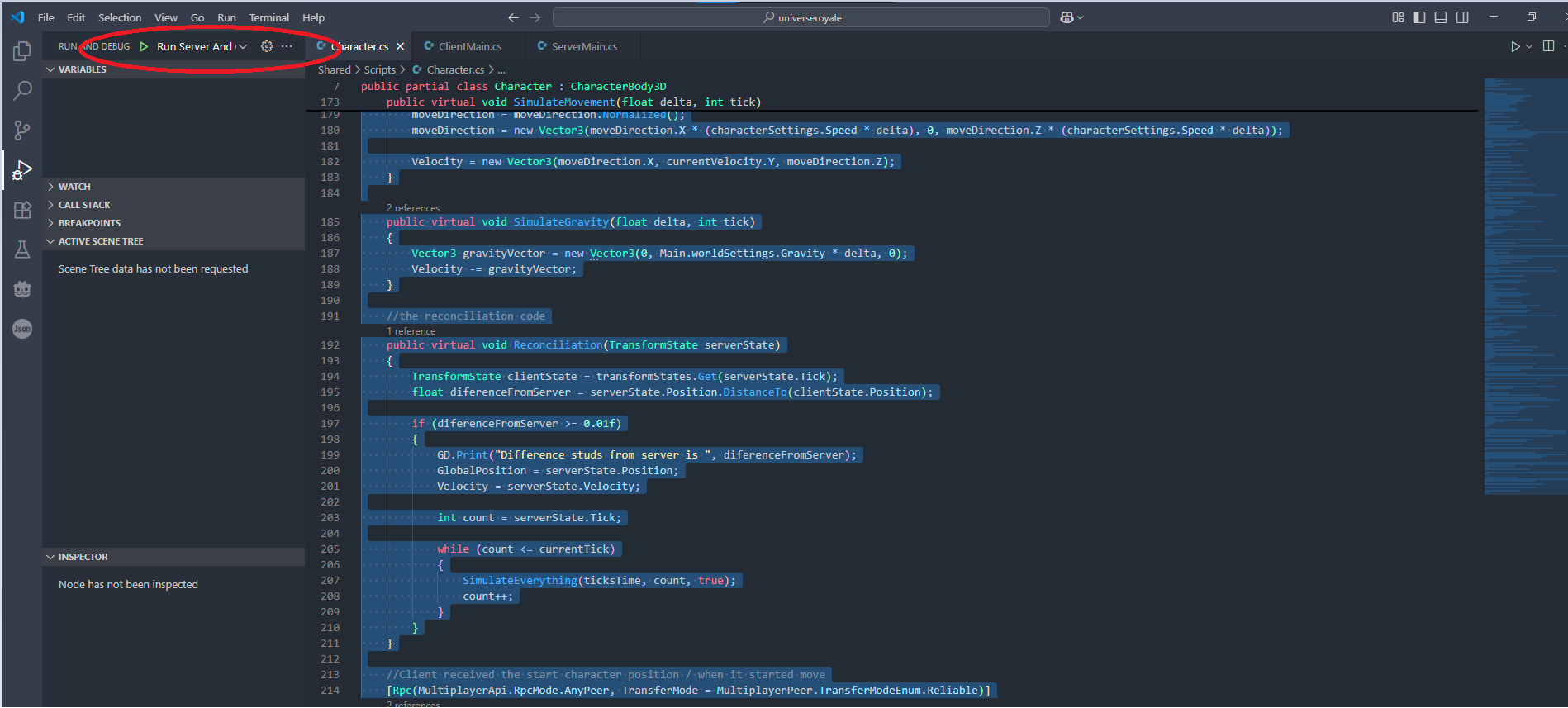

To play you need use visual studio code and run this option on debug:
It gonna open seven and client screens. Thanks guys for the attention, its my first time doing this system.
