Godot Version

v4.2.2.stable.official[15073afe3]

Question

First day of Godot, having a blast! But there’s a lot I don’t know yet. Came across a very peculiar situation when importing a .glb textured file into Godot, which seems to change the .png texture file upon importing. Any ideas what is happening and how can I ensure the correct texture is imported?

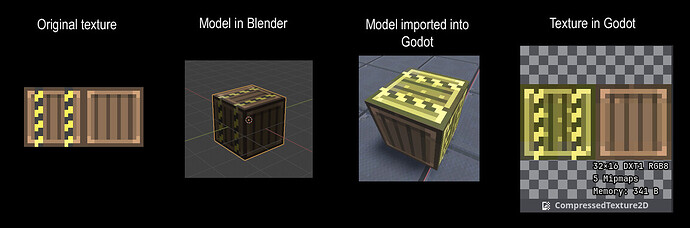

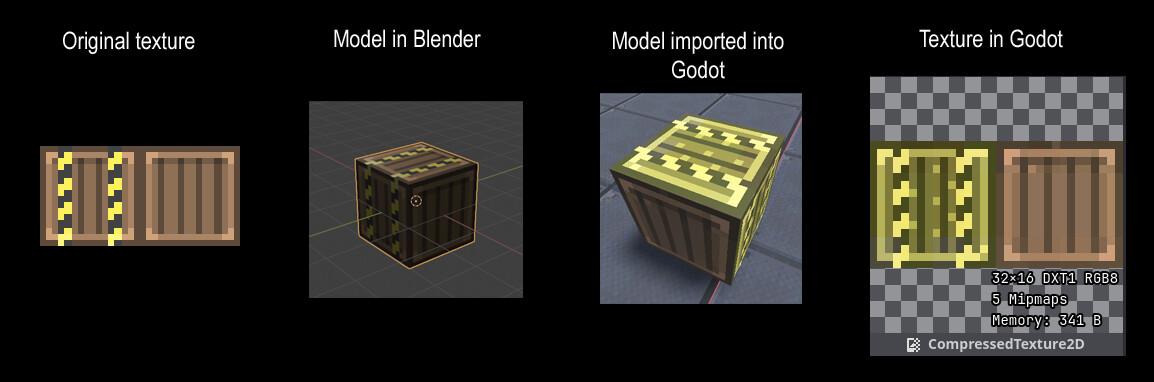

image1154×382 78.1 KB

I have no idea what’s causing that yellow on the left half of the image when the .glb file is imported. Any ideas? Super thanks for the patience with the noob!

2

That’s probably the effect of the DXT-1 compression. Maybe disable compression on the import? It’s not a big texture, the size difference won’t be much.

1 Like
3

That’s indeed the case, thanks for the help!

4

IIRC DXT-1 compression cuts the image up into small tiles. For each tile it picks two endpoint colors and maps the pixels to a two-bit gradient between them. This works relatively well with some kinds of image, really badly with others.
