Imported .PNG has dull colors

Help
1

Godot Version

v4.7.stable.official [5b4e0cb0f]

Question

Hello dear people!

My issue is simple. I have a PNG (attached) that I want to use as UI element. However, when I import it into Godot (CompressedTexture2D), the colors become dull. I have tested it on 3 different devices (notebook and PC too) and 2 different OS (Windows and Mac) with 3 different people, same results. Yes, it happens with other pictures too.

My (relevant) import settings are:

  • Compress mode: Losless
  • Channel Pack: sRGB Friendly
  • No mipmaps, Roughness mode: Detect
  • Detect 3D Compress To: VRAM Compressed
    I have tried changing these settings but no combination worked so far.

I already looked at every single YT video, forum issue and article I could have found, but no luck in fixing it so far, so I would greatly appreciate any help. Thank you very much in advance!

Settings_paper
Settings_paper3840Ă—2160 1.28 MB

2

I attach the dull version I see in Godot, but I am not sure how well the difference can be seen, but I can ensure you it is huge.

Picture1642Ă—349 50.7 KB

3

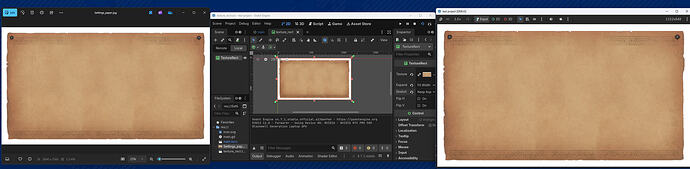

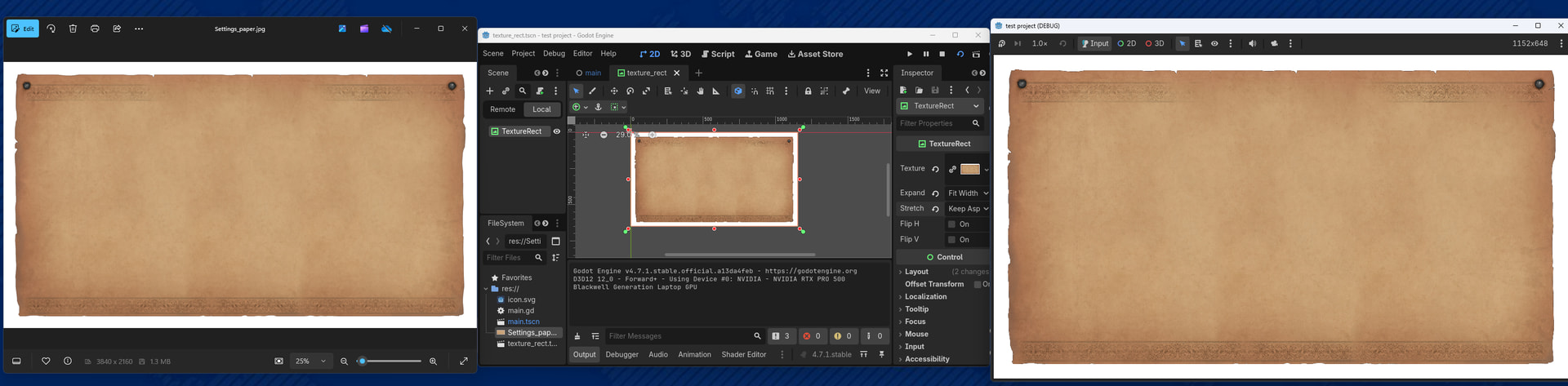

Can you share a screenshot of how this looks like on your screen? Because I can’t see literally any difference between how it’s rendered by the Windows Photos app, the Godot Editor and during runtime - see all 3 below next to each other.

image1920Ă—473 150 KB

4

Give me a minute.

5

Those images look exactly the same.

6

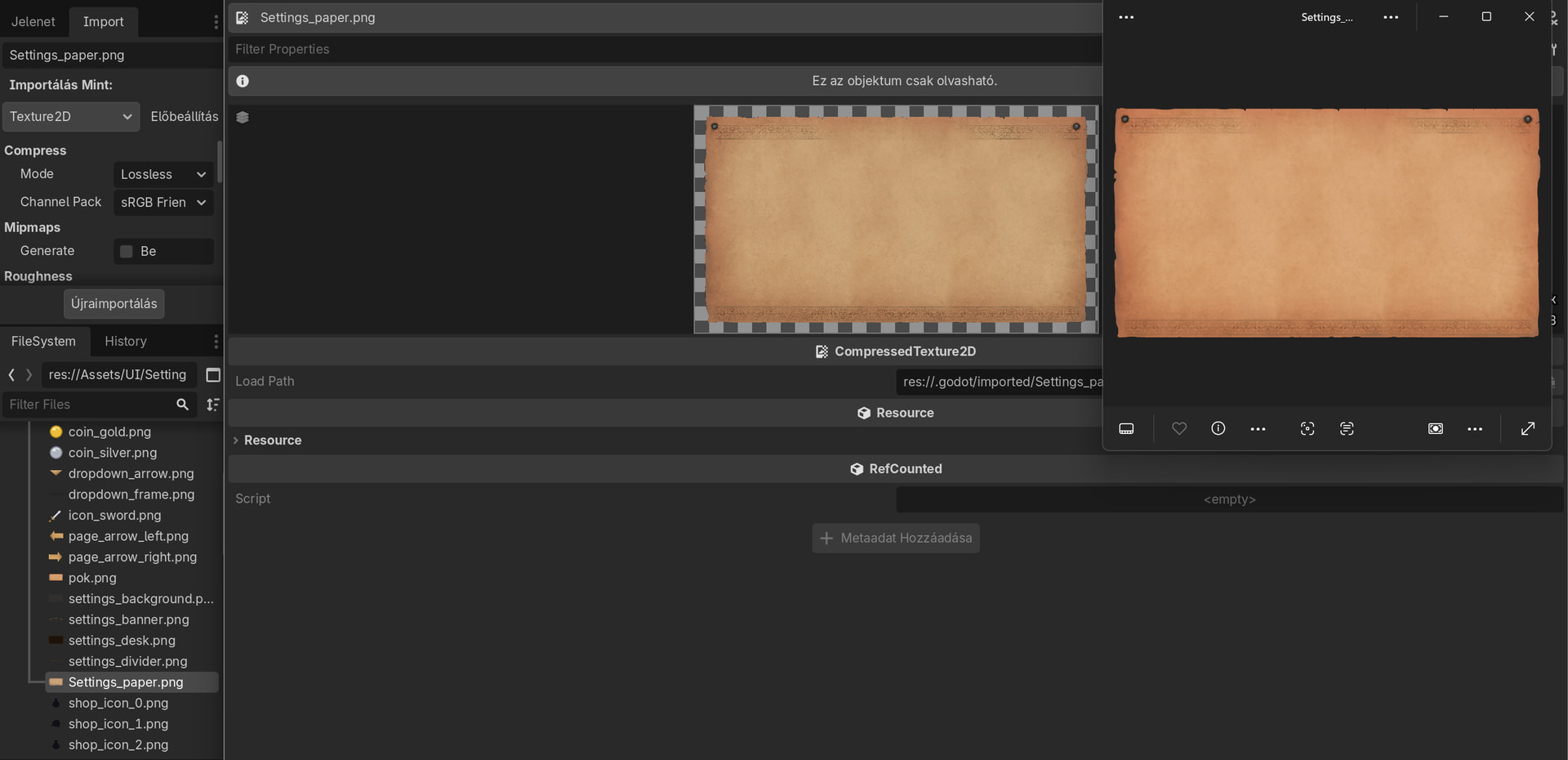

Here is how I see it in Godot vs in default viewer of Windows.

image1920Ă—930 135 KB

7

Shared!
I am trying to use it as a background of one of my menus.

8

Are there any color profiles embedded in the png file?

9

I opened it in Photoshop and (under Edit → Convert to Profile) Source space is “Adobe RGB (1998)”. Is that the issue?

10

You should remove any color profiles and resave. Godot will ignore them anyway and always import as raw sRGB pixel values. So yeah, the eventual embedded color profile can cause a discrepancy between how the image is shown in an image viewer that uses color profiles and Godot.

11

That was the problem, thank you very much!
I changed Color profile from “Adobe RGB (1998)” to “sRGB IEC61966-2.1”, saved, then while Exporting as, I unchecked “Embed color profile” box and now it is perfect in Godot as well.
Should I mark your last comment as Solution?

12

You should.

13

Thanks a lot!
