godot 4
See title.
I want to create different types of underlines, e.g. curly underlines, moving underlines, colored underlines, and whatnot.
But i can’t seem to find a way to adjust that.
I managed to change the thickness of the underline by tinkering with my font’s metadata. But that’s all.
Does godot even support such a thing? Or would i have to draw these manually under the text using code?
I don’t think you can do that with just a RichTextLabel … AFAIK the options are limited to bold/italic/underline and things like that, not any more customization.
If you don’t mind using an extension, you could use something like godot-HTML to render a CSS/HTML version of your labels, then the sky’s the limit.
No, it does not support it out of box and you’ll need to draw them manually.
You could use a RichTextEffect for that.
Example:
extends Control
@onready var rich_text_label: RichTextLabel = $RichTextLabel
var custom_underline = CustomUnderline.new()
func _ready() -> void:
rich_text_label.install_effect(custom_underline)
rich_text_label.bbcode_enabled = true
# use a [zwnj] tag at the end to insert a zero-width non joiner character to account
# for the width of the last character
rich_text_label.text = "Hello [u2]beautiful world![zwnj][/u2] here's [u2 color=yellow]another underline![zwnj][/u2]"
# queue_redraw any time the rich_text_label gets drawn
rich_text_label.draw.connect(queue_redraw)
func _draw() -> void:
for offset in custom_underline.offsets:
draw_set_transform(Vector2(0, 2))
draw_dashed_line(offset.start, offset.end, Color(offset.color), 4.0, 4.0)
draw_set_transform(Vector2.ZERO)
class CustomUnderline extends RichTextEffect:
var bbcode = "u2"
var last_start_range: int = -1
var last_relative_index: int = -1
var offsets = []
var current_offset = -1
func _process_custom_fx(char_fx: CharFXTransform) -> bool:
# the start index in the full string of the character
var start_range = char_fx.range.x
# the relative index to the start of the effect
var relative_index = char_fx.relative_index
# if last range is bigger than the start range it means that we are restarting the effect
# so we need to clear the offsets array
if last_start_range > start_range:
offsets.clear()
current_offset = -1
if relative_index == 0:
# we are starting a new tag append a new offset
offsets.append({
"start": char_fx.transform.origin,
"end": char_fx.transform.origin,
"color": char_fx.env.get("color", "red")
})
current_offset = offsets.size() - 1
last_relative_index = -1
elif last_relative_index <= relative_index:
# we are continuing the last offset so update the end value
offsets[current_offset].end = char_fx.transform.origin
last_start_range = start_range
last_relative_index = relative_index
return true

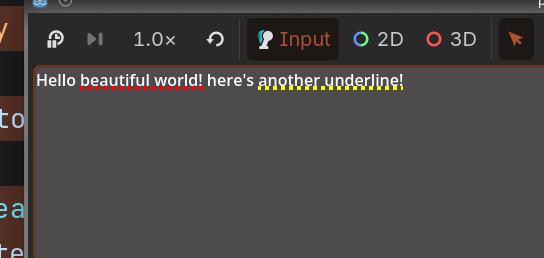

Result:
The example does not take into account split underlines spanning multiple lines.
Very neat! Did not know you could do that!
It’s a little sad the documentation on RichTextEffect is basically just a dud … Do you have an other resource to learn about this system?
edit: just saw the tutorial links in the article - please ignore
