Is TileMap unusable in editor on Mac? Godot CPU usage jumps to 50%, 1FPS

[alextheukrainian]

Godot Version

4.2

If TileMap node is selected in editor (2D view), Godot starts lagging like crazy. If I make the node invisible or select any other node, it goes back to normal.

It’s literally unusable when lagging, 1fps with every click delayed a few seconds. CPU usage spikes to 50%+.

Is there a workaround?

I’m on an otherwise-fast M1 MBP. Restarting Godot didn’t help. The game plays fine with tiles.

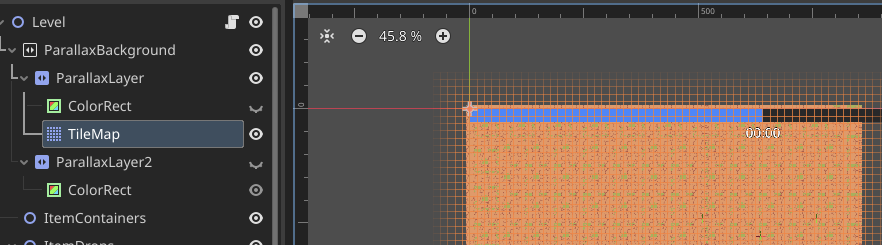

I think it’s literally drawing the orange grid shown when a TileMap node is selected in 2D view that tanks Godot. Doesn’t matter if parallax mirroring is on or off.

[mrcdk]

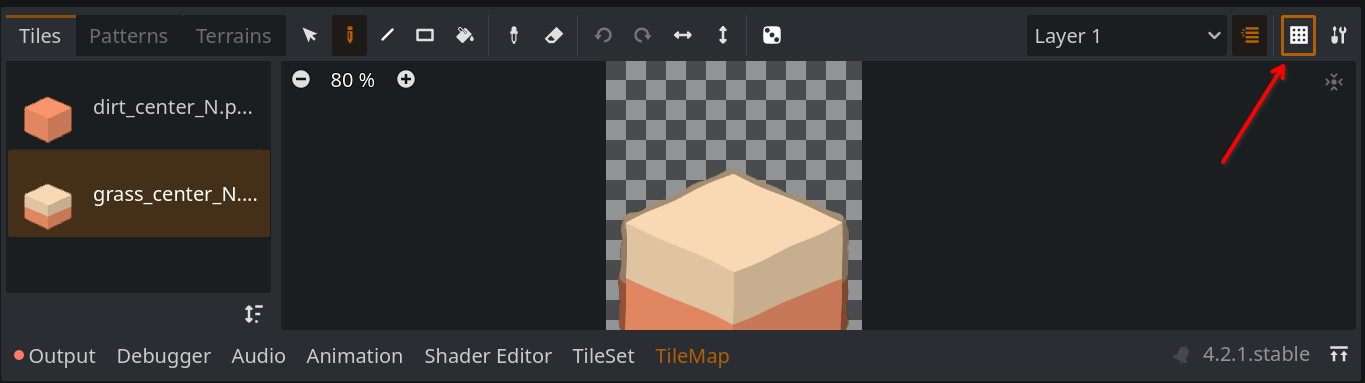

Try disabling the grid as a workaround.

And it would be great if you could open an issue here Issues · godotengine/godot · GitHub if you can’t find a similar issue already.

[alextheukrainian]

Ty sir, that fixes it. Will report the unexpected behavior.

[alextheukrainian]

This is an old issue with an existing tracker. The workaround specified there (using opengl13 renderer instead of opengl13_angle) doesn’t work for me b/c while it helps the editor to not lag, the game then crashes on launch.

TileMap performance degradation on MacOS using ANGLE
