Godot Version
Godot 4.5.1.stable
Question
I’m trying to convert a canvas_item highlight shader to work on a CanvasGroup node. I’ve actually tried it with two shaders, and on the second one, I can see it moving in the alpha-blended edge of the node - basically the highlight is under the combined images. I do not know enough about shaders to understand what is going on, and I could use some help.
- I’d like a solution to make either one of the shaders below work.
- Bonus points for explaining to me what’s actually going on/where I made my mistake.
I learned about CanvasGroups through this video here:
I tried to apply what I learned from it. Specifically that CanvasGroup nodes have their own code:
shader_type canvas_item;
render_mode unshaded;
uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_nearest;
void fragment() {
vec4 c = textureLod(screen_texture, SCREEN_UV, 0.0);
if (c.a > 0.0001) {
c.rgb /= c.a;
}
COLOR *= c;
}
You must integrate that code into a shader for it to work on a CanvasGroup node.
Shader 1
So my first try was with the shader, Shine 2D – Configurable - Godot Shaders. I followed what I learned in the video and got the two images showing up.
Shader 1
shader_type canvas_item;
render_mode blend_premul_alpha;
uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_nearest; //CanvasGroup shader
uniform vec4 shine_color : source_color = vec4(1.0);
uniform float shine_angle : hint_range(0.0, 180.0, 0.1) = 45.0;
uniform float shine_speed : hint_range(0.01, 10.0, 0.01) = 0.3;
uniform float shine_delay : hint_range(0.0, 5.0, 0.1) = 0.0;
uniform bool shine_reverse = false;
uniform float Line_Width : hint_range(0.0, 0.2) = 0.09;
uniform float Line_Smoothness : hint_range(0.001, 0.1) = 0.045;
uniform float Brightness : hint_range(0.0, 10.0) = 3.0;
uniform float Distortion : hint_range(1.0, 3.0) = 2;
uniform float LensStrength : hint_range(0.0, 0.1) = 0.05;
void fragment() {
vec2 uv = UV;
// Dirección y normal
float angle_rad = radians(shine_angle);
vec2 shine_dir = normalize(vec2(cos(angle_rad), -sin(angle_rad)));
vec2 shine_normal = vec2(-shine_dir.y, shine_dir.x);
// Gradiente radial
vec2 center_uv = uv - vec2(0.5);
float gradient_to_edge = max(abs(center_uv.x), abs(center_uv.y));
gradient_to_edge = 1.0 - gradient_to_edge * Distortion;
gradient_to_edge = clamp(gradient_to_edge, 0.0, 1.0);
// Animación
float cycle_duration = (1.0 / shine_speed) + shine_delay;
float time_in_cycle = mod(TIME, cycle_duration);
float shine_progress = clamp(time_in_cycle * shine_speed, 0.0, 1.0);
if (shine_reverse) {
shine_progress = 1.0 - shine_progress;
}
float max_offset = 1.5;
float offset = mix(-max_offset, max_offset, shine_progress);
vec2 shine_origin = vec2(0.5) + shine_normal * offset;
// Brillo
float distance = dot(uv - shine_origin, shine_normal);
float smoothness = clamp(Line_Smoothness, 0.001, 1.0);
float half_width = Line_Width * 0.5;
float shine = smoothstep(-half_width - smoothness, -half_width, distance) -
smoothstep(half_width, half_width + smoothness, distance);
// Lens flare
vec2 lens_offset = shine * LensStrength * shine_normal;
vec4 base_color = texture(TEXTURE, uv + lens_offset);
// Respetar transparencia
if (base_color.a <= 0.0) {
discard; // opcional: no renderiza nada
}
shine *= base_color.a;
float final_intensity = shine * gradient_to_edge * Brightness;
final_intensity = clamp(final_intensity, 0.0, shine_color.a);
vec3 final_color = mix(base_color.rgb, shine_color.rgb, final_intensity);
// <----------------------------------------------------------------------->
// Added from CanvasGroup shader
vec4 c = textureLod(screen_texture, SCREEN_UV, 0.0);
if (c.a > 0.0001) {
c.rgb /= c.a;
}
vec4 shader_color =vec4(final_color, base_color.a);
float base_alpha = min(base_color.a, 1.0);
COLOR = mix(c, shader_color, c.a - base_alpha);
// <----------------------------------------------------------------------->
// Aplicar alpha como máscara final
// COLOR = vec4(final_color, base_color.a);
}

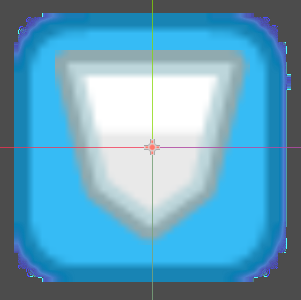

Original (No shader)

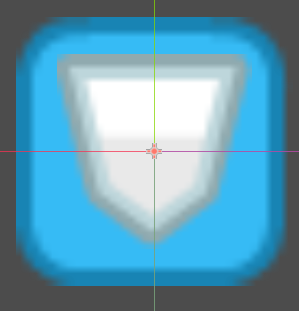

With Shader 1
Shader 2
In my second attempt, I took a look at a CanvasGroup shader: Canvas Group Outline - Godot Shaders. Then I tried to adapt what I saw in it. I also wondered if the line render_mode blend_premul_alpha; was giving me problems, so I found another shader to adapt that didn’t have that. Specifically this one: Shine - Godot Shaders
Shader 2
shader_type canvas_item;
// --- Includes --- //
//#include "res://shaders/includes/generic_functions.gdshaderinc"
//CanvasGroup Shader
uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_nearest;
// --- Uniforms --- //
uniform vec4 shine_color: source_color = vec4(1.0, 1.0, 1.0, 0.25);
uniform float line_width: hint_range(0.0, 2.0, 0.01) = 0.1;
uniform float angle: hint_range(0.0, 6.28318530718, 0.1308996939) = 0.785398163397;
uniform float speed: hint_range(0.0, 10.0, 0.1) = 1.0;
uniform float wait_cycles: hint_range(0.0, 10.0, 0.1) = 1.0;
// --- Functions --- //
vec2 rotate_precalculated(vec2 _pos, float _sine, float _cosine) {
return vec2(_pos.x * _cosine + _pos.y * -_sine, _pos.x * _sine + _pos.y * _cosine);
}
void fragment() {
//vec4 c = textureLod(screen_texture, SCREEN_UV, 0.0);
vec4 c = texture(screen_texture, SCREEN_UV);
//
//if (c.a > 0.0001) {
//c.rgb /= c.a;
//}
float sine = sin(angle);
float cosine = cos(angle);
float len = 1.5 - max(abs(sine), abs(cosine)) + line_width;
float line = smoothstep(-line_width, line_width,
rotate_precalculated((UV - vec2(0.5)), sine, cosine).y - mod(TIME * speed, (len * 2.0) * wait_cycles) + len);
//COLOR.rgb += shine_color.rgb * shine_color.a * vec3(line * (1.0 - line) * 4.0);
vec3 shine = shine_color.rgb * shine_color.a * vec3(line * (1.0 - line) * 4.0);
vec4 shine_four = vec4(shine, c.a);
COLOR = mix(shine_four, c, c.a);
}
Shader 2
