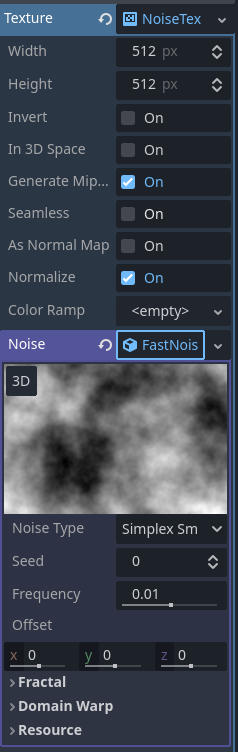

So I have been using this great water shader, but I have been struggling for days to get it to tile properly. All of the noise and source images it uses do tile correctly and have continuous edges so I am not sure why this issue is occurring. I can see how they mostly match up, but subtle variations cause a noticeable seem. I believe the issue has to do with the uv values and getting them to reflect global coordinates instead of local ones, but I am having a lot of trouble implementing this. Could someone please help me fix this issue? I am going crazy trying to figure this out myself haha. I have also tried using a TextureRect, and while this does allow seamless infinite tiling, it only works in the positive x and y directions, not in all directions. Thanks! Here is my shader code:
shader_type canvas_item;
uniform vec2 global_position;
uniform vec2 tile_offset = vec2(0.0, 0.0);
uniform float aspectRatio = 1.0f;
uniform float pixelization = 12048.0f;
uniform sampler2D waterDepthGradient : hint_default_black;
uniform vec4 causticColor = vec4(0.455f, 0.773f, 0.765f, 1.0f);
uniform vec4 causticHighlightColor = vec4(0.741f, 0.494f, 0.898f, 1.0f);
uniform sampler2D causticTexture : hint_default_white, repeat_enable;
uniform sampler2D causticHighlightTexture : hint_default_white, repeat_enable;
uniform sampler2D causticNoiseTexture : hint_default_white, repeat_enable;
uniform sampler2D causticFadeNoiseTexture : hint_default_white, repeat_enable;
uniform float causticScale = 12.0f;
uniform float causticSpeed = 0.005f;
uniform float causticMovementAmount = 0.15f;
uniform float causticFaderMultiplier = 1.45f;
uniform vec4 specularColor = vec4(1.0f, 1.0f, 1.0f, 1.0f);
uniform sampler2D specularNoiseTexture : hint_default_white, repeat_enable;
uniform sampler2D specularMovementLeftNoiseTexture : hint_default_white, repeat_enable;
uniform sampler2D specularMovementRightNoiseTexture : hint_default_white, repeat_enable;
uniform float specularThreshold = 0.35f;
uniform float specularSpeed = 0.025f;
uniform float specularScale = 15.0f;
uniform vec4 foamColor = vec4(1.0f, 1.0f, 1.0f, 1.0f);
uniform sampler2D foamTexture : hint_default_white, repeat_enable;
uniform float foamIntensity = 0.2f;
uniform float foamScale = 15.0f;
uniform vec4 outlineColor = vec4(0.675f, 0.86f, 1.0f, 1.0f);
uniform float generalTransparency = 1.0f;
uniform vec2 offset;
// ------------------------------------------------------------------------------------
// Helper functions
// Blends two vec2’s by subtracting them. Compare this to Photoshop blend mode “Subtract”.
// Source:
// Blend Node | Shader Graph | 6.9.2
vec2 blendSubtract_vec2(vec2 base, vec2 blend, float opacity)
{
vec2 result = base - blend;
return mix(base, result, opacity);
}
// Blends two floats by subtracting them. Compare this to Photoshop blend mode “Subtract”.
// Source:
// Blend Node | Shader Graph | 6.9.2
float blendSubtract_float(float base, float blend, float opacity)
{
float result = base - blend;
return mix(base, result, opacity);
}
// Blends two vec2’s by overlaying them. Compare this to Photoshop blend mode “Overlay”.
// Source:
// Blend Node | Shader Graph | 6.9.2
float blendOverlay_float(float base, float blend, float opacity)
{
float result1 = 1.0f - 2.0f * (1.0f - base) * (1.0f - blend);
float result2 = 2.0f * base * blend;
float zeroOrOne = step(0.5f, base);
float res = result2 * zeroOrOne + (1.0 - zeroOrOne) * result1;
return mix(base, res, opacity);
}
// Pixelizes the given coordinate.
vec2 pixelizeCoordinates(vec2 coordinates)
{
return floor(coordinates * pixelization) / pixelization;
}
// Applies the aspect ratio to the coordinates.
vec2 applyAspectRatio(vec2 coordinates)
{
return vec2(coordinates.x, coordinates.y * aspectRatio);
}
// ------------------------------------------------------------------------------------
// Shader layers
vec4 caustics(vec2 pixelizedCoordinates)
{
vec4 causticNoise = texture(causticNoiseTexture, TIME * causticSpeed + pixelizedCoordinates);
vec2 noiseCoordinates = blendSubtract_vec2(pixelizedCoordinates * causticScale, causticNoise.rg, causticMovementAmount);
vec4 causticHighlight = texture(causticHighlightTexture, noiseCoordinates) * causticHighlightColor;
vec4 caustic = texture(causticTexture, noiseCoordinates) * causticColor;
vec4 interpolatedCaustics = mix(caustic, causticHighlight, causticHighlight.a);
float fadeNoise = texture(causticFadeNoiseTexture, noiseCoordinates).r * causticFaderMultiplier;
return vec4(interpolatedCaustics.r, interpolatedCaustics.g, interpolatedCaustics.b, clamp(interpolatedCaustics.a - fadeNoise, 0.0, 1.0));
}
vec4 specular(vec2 pixelizedCoordinates)
{
vec2 scaledCoordinates = pixelizedCoordinates * specularScale;
float specularNoise = texture(specularNoiseTexture, scaledCoordinates).r;
float leftScrollingNoise = texture(specularMovementLeftNoiseTexture, scaledCoordinates + vec2(TIME * specularSpeed, 0.0f)).r;
float rightScrollingNoise = texture(specularMovementRightNoiseTexture, scaledCoordinates + vec2(TIME * specularSpeed * -1.0f, 0.0f)).r;
return step(specularThreshold, blendSubtract_float(blendOverlay_float(leftScrollingNoise, rightScrollingNoise, 1.0f), specularNoise, 1.0f)) * specularColor;
}
vec4 foam(vec2 pixelizedCoordinates, vec4 mainTexColor)
{
vec4 colorizedFoam = texture(foamTexture, pixelizedCoordinates * foamScale) * foamColor;
float intensity = clamp(mainTexColor.g * mainTexColor.a - foamIntensity, 0.0f, 1.0f);
return vec4(colorizedFoam.r, colorizedFoam.g, colorizedFoam.b, colorizedFoam.a * intensity);
}
// ------------------------------------------------------------------------------------
// Fragment Shader code
void fragment()
{
//vec2 global_position = vec2(TRANSFORM[2].x, TRANSFORM[2].y);
vec2 uv = FRAGCOORD.xy / SCREEN_PIXEL_SIZE + tile_offset;
uv += offset;
//uv += global_position;
uv = mod(uv, 1.0); // Wrap UV to range [0, 1)
vec2 pixelizedCoordinates = pixelizeCoordinates(applyAspectRatio(UV));
vec4 mainTex = texture(TEXTURE, UV);
vec4 depthBasedWaterColor = texture(waterDepthGradient, vec2(1.0f - mainTex.b, 1.0f));
vec4 finalCaustics = caustics(pixelizedCoordinates);
vec4 finalSpecular = specular(pixelizedCoordinates);
vec4 finalFoam = foam(pixelizedCoordinates, mainTex);
vec4 waterWithCausticLayer = mix(depthBasedWaterColor, finalCaustics, finalCaustics.a);
vec4 waterWithCausticAndSpecularLayer = mix(waterWithCausticLayer, finalSpecular, ceil(finalCaustics.a) * finalSpecular.a);
vec4 waterWithCausticAndSpecularAndFoamLayer = mix(waterWithCausticAndSpecularLayer, finalFoam, finalFoam.a);
float outline = mainTex.a * mainTex.r;
vec4 finalOutlineColor = outline * outlineColor;
vec4 finalRGBColor = mix(waterWithCausticAndSpecularAndFoamLayer, finalOutlineColor, outline);
float brightness_threshold = 0.4;
float brightness = (finalRGBColor.r + finalRGBColor.g + finalRGBColor.b) / 3.0;
float old_transparency = mainTex.b * generalTransparency;
// Calculate brightness based on the RGB values
// Calculate the factor by which to adjust alpha only if brightness exceeds the threshold
float alpha_factor = step(brightness_threshold, brightness) * (brightness - brightness_threshold) / (1.0 - brightness_threshold);
// Blend alpha between old transparency and full opacity based on the adjusted factor
float adjusted_alpha = mix(old_transparency, 1.0, alpha_factor * 1.2);
COLOR = vec4(finalRGBColor.r, finalRGBColor.g, finalRGBColor.b, adjusted_alpha);
