OpenXRCompositionLayer Transparency

Help XR
,
1

Godot Version

4.4 DEV 7

Question

And yet another question regarding OpenXRCompositionLayers, sorry. :see_no_evil:

I followed the manual, but seem to have problems getting a transparent menu to work. In the editor, everything looks fine (at least to me):

Screenshot From 2024-12-21 12-02-59
Screenshot From 2024-12-21 12-02-591748×779 136 KB

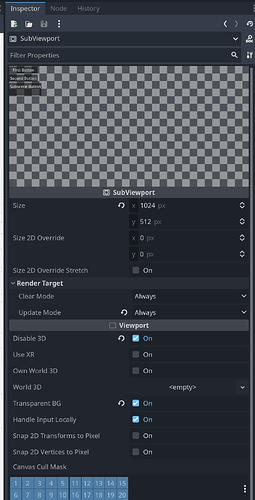

Screenshot From 2024-12-21 12-03-40
Screenshot From 2024-12-21 12-03-40815×1596 114 KB

But in the headset, the OpenXRCompositionLayer is not transparent any more.

Screenshot_com.artivact.godot.tests_2024.12.21-12.04.20.433_152
Screenshot_com.artivact.godot.tests_2024.12.21-12.04.20.433_1521920×1920 72.8 KB

What did i do wrong? Any help is appreciated. :slightly_smiling_face:

2

Never mind. I checked out the Composition-Layer Demo project and noticed my misconfiguration:

In the CompositionLayer, i checked “Enable Hole Punch” and set the Sort Order to -1. That’s apparently not a good idea for transparent UIs. :smile:

3

Well, maybe this still is a bug?!?

I would like to see my hand in front of the UI. And any cursor/pointer indicating where i pointed to, too, if it’s a mesh instance as described in the manual.

The “OpenXR Composition Layers” demo uses a transparent UI with “Enable Hole Punch” set to 0. But there the pointer is a “cursor” defined in the UI. The Manual pages describe how to set “Whole Punch” and sort order, but don’t say anything about transparency. :thinking:

I’m confused right now. :upside_down_face:

4

I know this is from quite a while ago, but I’m currently stuck on the same issue, not sure what the work around might be but I think transparent 2d overlays is probably something that would help out with a few concepts.
