Root motion broken?

[kuligs2]

Godot Version

4.5.1 stable

Question

Why is the root motion rotation not rotating based on root rotation?

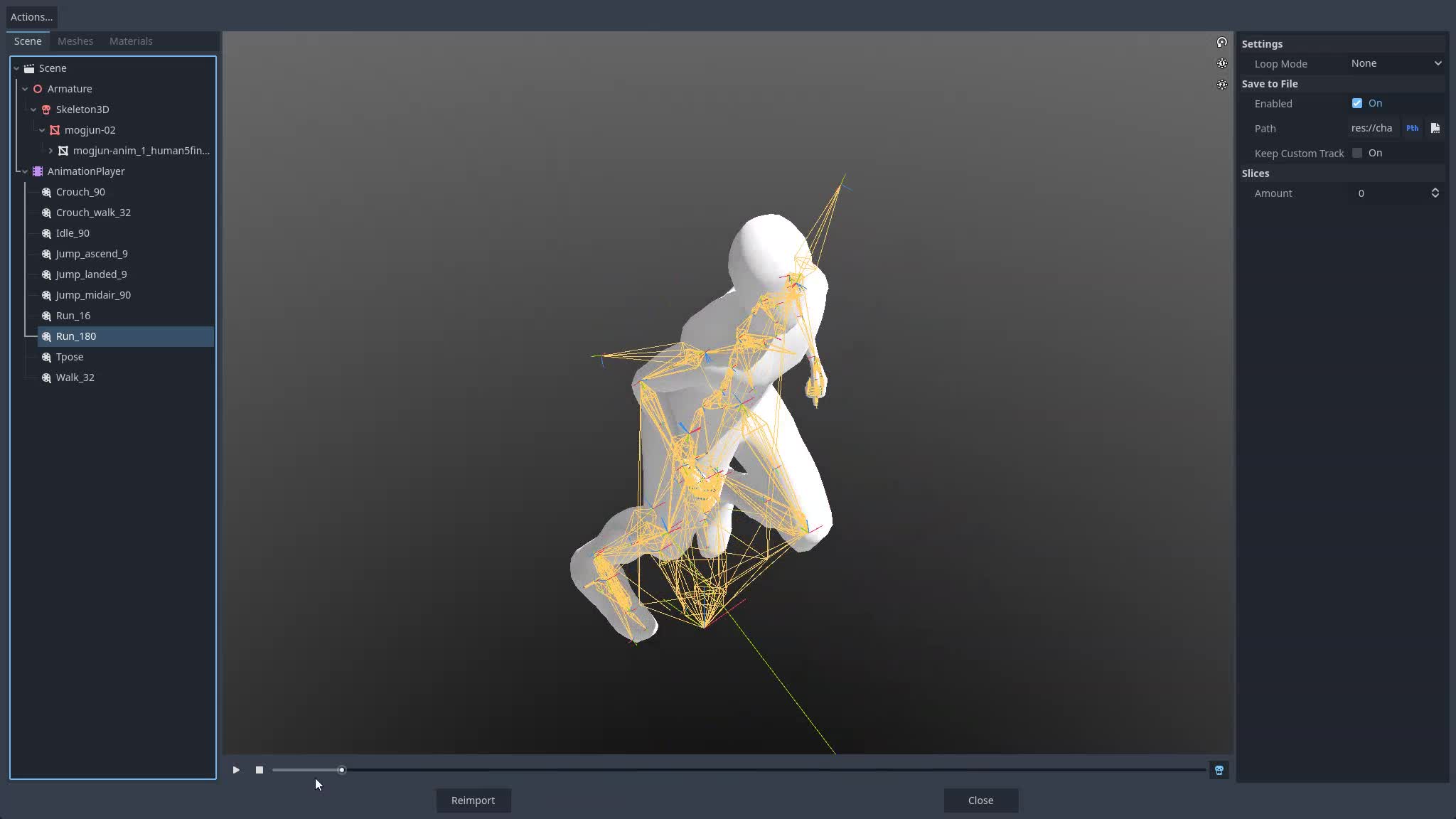

In the import tab the animation looks correct, but when i trigger it, it rotates along the Z axis and not along the y axis?

How do i fix this?

func _physics_process(delta) -> void:
    	velocity = get_quaternion() * anim_player.get_root_motion_position() / delta
		set_quaternion(get_quaternion() * anim_player.get_root_motion_rotation())

Watch Godot_v4.5.1-stable_win64_LMiyROldfF | Streamable

Watch Godot_v4.5.1-stable_win64_xtY42IkwWf | Streamable

[kuligs2]

THanks to this its now working.

Root Motion Code not working (Edited)

Godot Version Godot 4.2.2 Question Hi, I am trying to implement a root motion system in my game but it’s currently not working Expected Output: Current output: As you can see, the animation is being played. However, the character itself isn’t moving Below is how I implemented this system. I would be more than delighted if any kind soul may take some time to go through it and point out any problems with how I have implemented it Animation Tree: [Animation Tree] Transition to …

All you need is to retarget skeleten to a new skeleton bonemap profile and select your root bone.

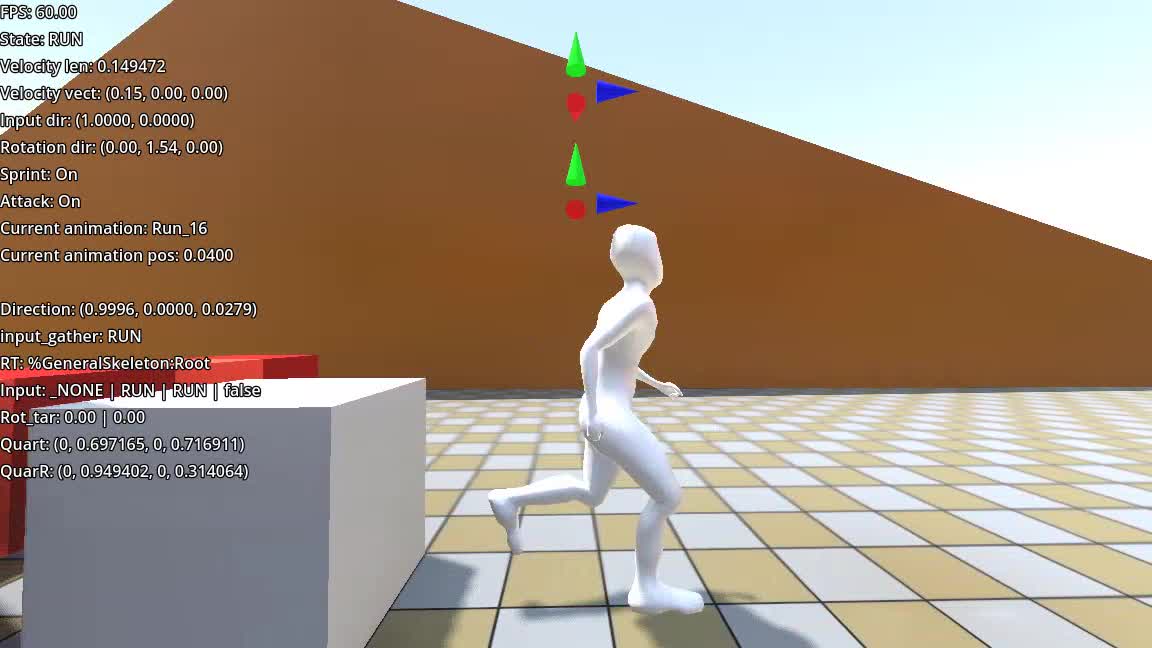

Watch Godot_v4.5.1-stable_win64_iZdn5i9oDM | Streamable

[jamie]

I had a similar issue and it usually comes down to the import settings. Make sure you’ve actually assigned a ‘Root Bone’ in the Import tab of your model (under the Retarget section). If Godot doesn’t know which bone is the root, get_root_motion_position() just returns zeros. Once you set it there and re-import, it usually snaps right into place.

[kuligs2]

Problems was that documentation didnt specify that you have to retarget skeleon after import. Root bone was set in the root motion tab. And for forward movement it was working, but rotation didnt work until you retargeted skeleton and made a new bonemap.
