Rotating child Bone2D distorts it

[Torf]

Godot Version

v4.6.1.stable.official [14d19694e]

Question

I’m trying to follow this tutorial on setting up a 2D skeleton: https://youtu.be/CA5oSM6f0fo?si=CxtvN7UX9hlMt_sq

However, when I create a Skeleton2D node, a parent Bone2D node inside it and a child Bone2D inside that, then rotating the child bone (using the rotation tool / pressing E) distorts the child bone. Rotating the parent bone works as expected (its shape stays the same and the child bone rotates with it).

In the tutorial, the author can rotate a child bone without any distortion (e.g. here: https://youtu.be/CA5oSM6f0fo?si=jhmL8rVzMmMINbuC&t=492).

This happens even in a brand new project without any other nodes. Since this is my first real attempt at Godot I might be missing something obvious, but I couldn’t find anything in the docs or here in the forum.

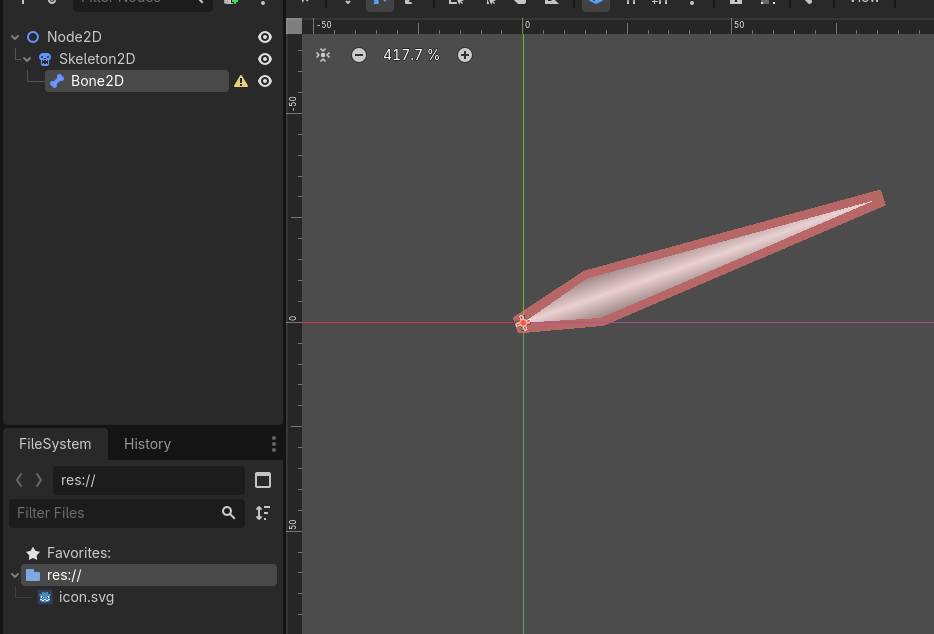

Step 1: Create a new Node2D scene, and a Skeleton2D containing the parent Bone2D:

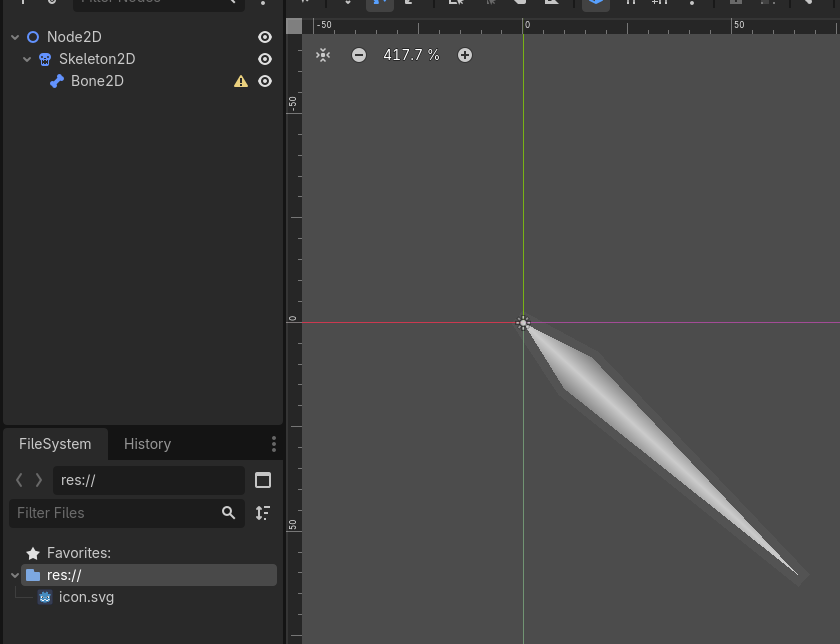

Step 2: Rotating the parent bone works as expected

S

Step 3: Add a child Bone2D

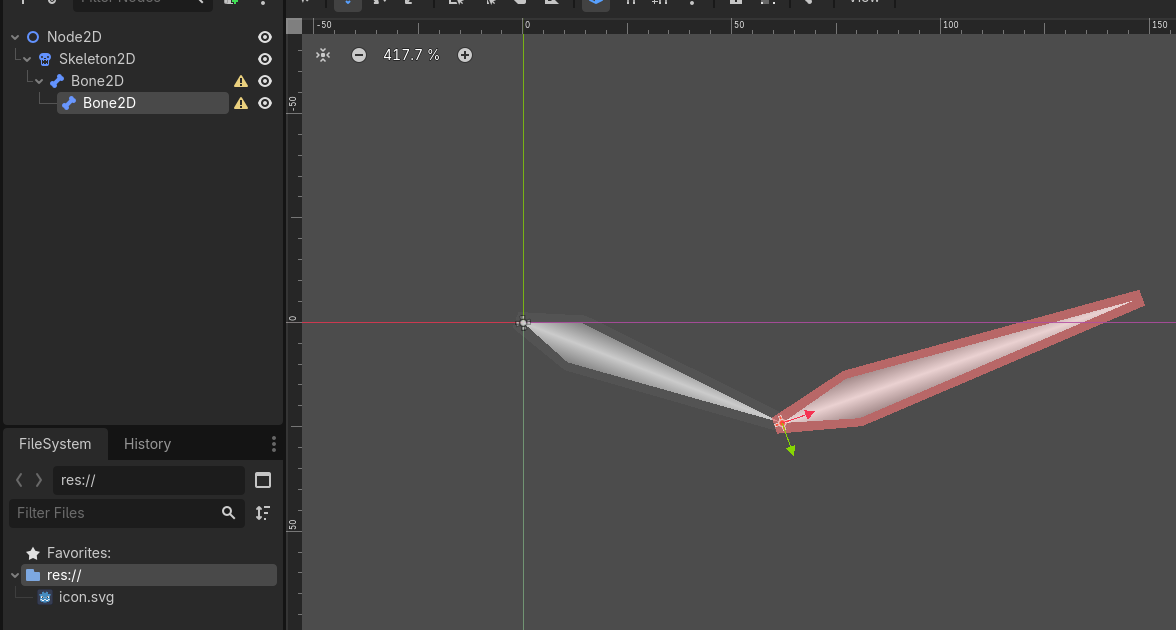

Step 4: Rotating the parent bone still works

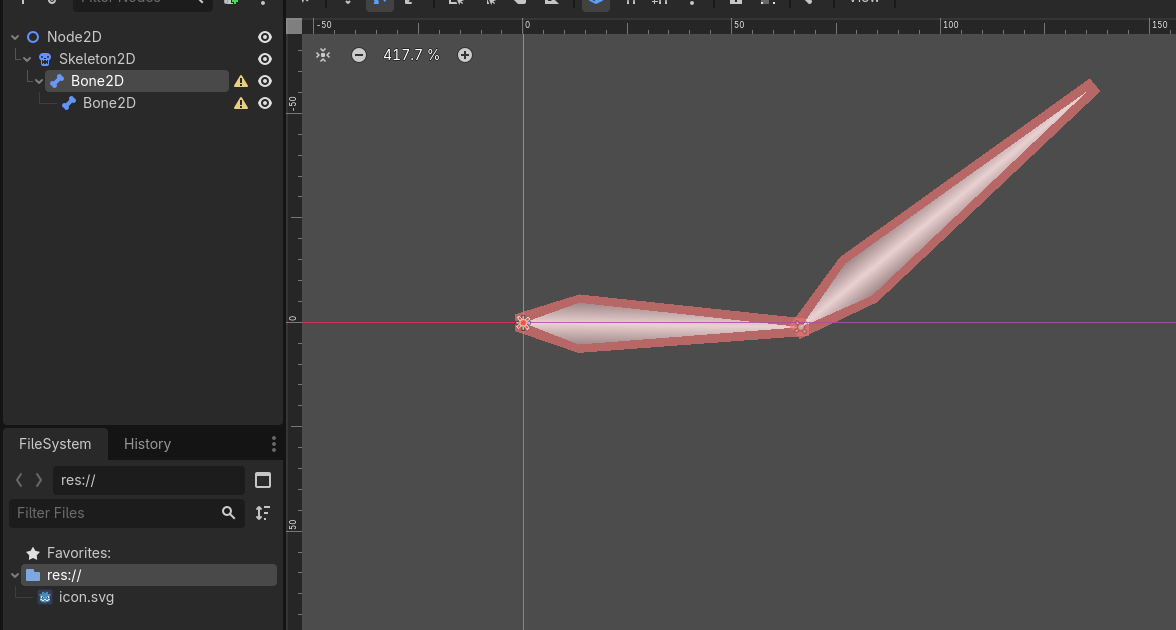

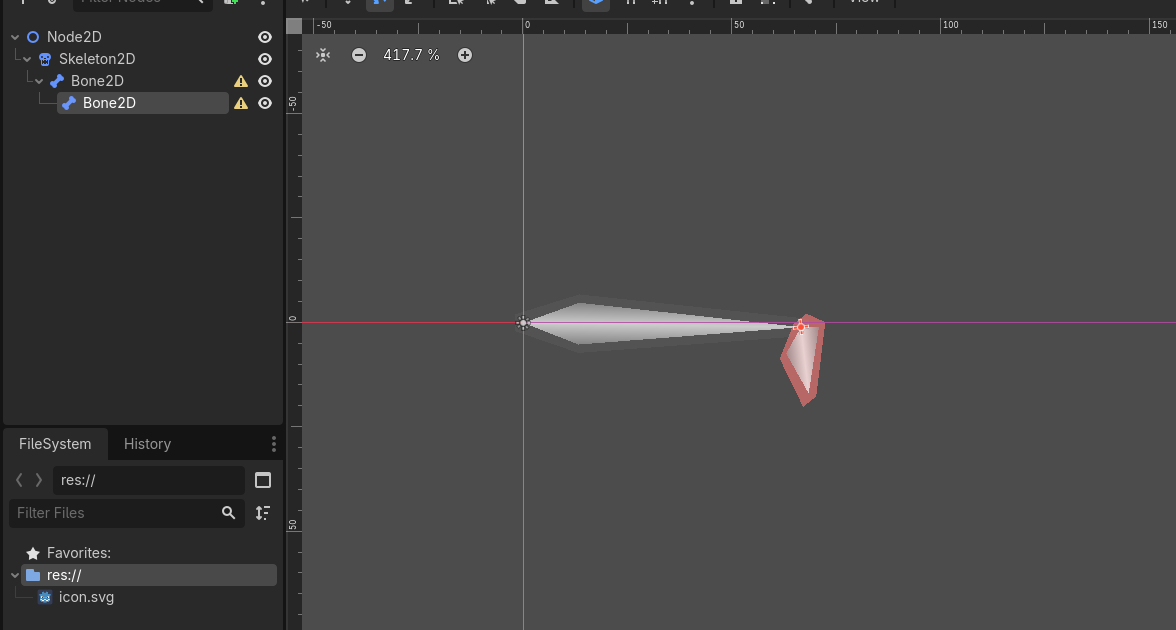

Step 5: Rotating the child bone distorts it (it changes its length in a strange fashion)

[normalized]

Don’t scale the bones non-proportionally.

[Torf]

Ah, indeed, that was the problem! I thought scaling was required to make the bones the right length, or at least I thought that scaling was equivalent to changing the bone length in the inspector.

Thanks!

What exactly goes wrong when I scale a bone non-proportionally? That is, how can I make sense of that strange rotation behavior after scaling?

[normalized]

A 3d node always inhertis a coordinate system from its parent (and its parent from its parent and so on up the tree). Transform compound. If somewhere in this chain there is non-proportion scaling it will “deform” the coordinate system of all of the nodes down the line. Doing rotation matrix operation in a non-proportional coordinate system has an unwanted side effect of skewing. It’s just how transformation matrices work.
