[SOLVED]Moving platforms and jittering

Help
1

Godot Version

4.4

Question

Hi guys! I’ve been working on a simple platformer for which I’ve made my own pixel art assets (they’re not great but, you know, doing my best :slight_smile: )

Right now, I’m creating some moving platforms and I’m working on the vertical moving ones and here I have a problem : a very ugly “jitter”/“noise” (I don’t know how to call it) appears when my character stands on them.
Here is a video of what I’m talking about :
https://streamable.com/xsu9zi

At first, I was moving the platform through tweens, I imagined that was the problem so I changed and moved the position directly and rounded the position of the platforms. But nothing is changing anything.

Here is the script for my moving platform :

class_name VMovingPlatformComponent
extends Node

@export_group("Nodes")
@export var me : AnimatableBody2D

var point_to_reach_bottom : int = 0
var point_to_reach_top : int = 0
var real_pos : Vector2 = Vector2.ZERO
var moving_down : bool = true
#var tween : Tween

func _ready() -> void:
	real_pos = me.position
	point_to_reach_bottom = real_pos.y + me.moving_distance_pixel # position + 32
	point_to_reach_top = real_pos.y - me.moving_distance_pixel # position -32

func _process(delta: float) -> void:
	if moving_down :
		to(delta)
		if me.position.y >= point_to_reach_bottom :
			moving_down = false
	else :
		and_fro(delta)
		if me.position.y <= point_to_reach_top :
			moving_down = true

func to(delta : float) :
	#tween = create_tween().set_process_mode(Tween.TWEEN_PROCESS_PHYSICS)
	#tween.tween_property(me, "position", Vector2(me.position.x, (me.position.y + me.moving_distance_pixel)).round(), me.time_sec).set_trans(Tween.TRANS_LINEAR)
	#tween.finished.connect(and_fro)

	real_pos.y += me.speed * delta
	me.position = real_pos.round()

func and_fro(delta : float) :
	#tween = create_tween().set_process_mode(Tween.TWEEN_PROCESS_PHYSICS)
	#tween.tween_property(me, "position", Vector2(me.position.x, (me.position.y - me.moving_distance_pixel)).round(), me.time_sec).set_trans(Tween.TRANS_LINEAR)
	#tween.finished.connect(to)

	real_pos.y -= me.speed * delta
	me.position = real_pos.round()

I’ve left the tween version (commented in the code) …Well, i’ve read a few threads on google and on this forum but I couldn’t find any solution so if you have ANY ideas, feel free to reach out!

Thanks a lot!

Marraw

2

What might be causing the issue is the round() function used for the real_pos float. Rounding would remove the positions in-between the whole number positions.

3

Sync the animated body to physics by using _physics_process instead of _process.

4

Use CharacterBody2d for your moving platforms especially if your player is a physics object. It was designed specifically for this use case, in fact, it has specific settings for moving platforms.

5

Thanks for the suggestion! I tried without the round() function but it didn’t make any difference sadly. Actually, my first script was without and I read about this function when I was looking to correct this “stuttering” effect but as you point out, it’s not good with OR without…

6

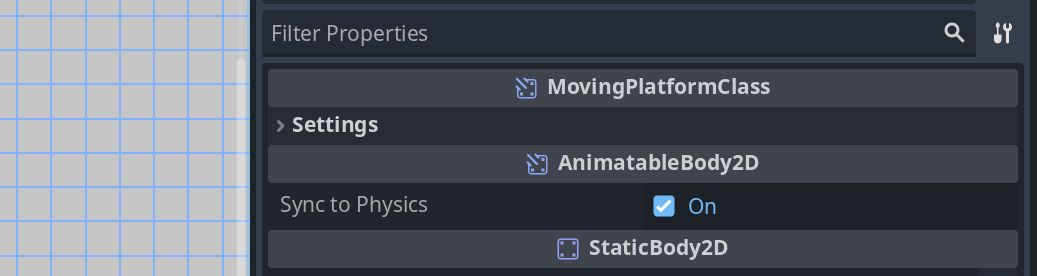

Thanks for the suggestion, I’ll try in code but I have this option checked on my animatableBody so I figured it was the same thing :

image1037×276 18.5 KB

1 Like
7

Hi everyone!
To try and find out what’s going on, I changed a few things : the movement script was in a “component” so for testing purposes, I moved it on the AnimatableBody.
I remove the round() function and the movement logic is called in the _physics_process now.
I also removed any unnecessary things (the real_pos variable and the tween comments).
But for now, I can’t see no changes, in good or bad…
Here is the new code :

class_name MovingPlatformClass
extends AnimatableBody2D

@export_group("Settings")
@export var time_sec : float = 1
@export var moving_distance_pixel : float = 32
@export var speed : float = 10


var point_to_reach_bottom : float = 0
var point_to_reach_top : float = 0
var moving_down : bool = true

func _ready() -> void:
	point_to_reach_bottom = position.y + moving_distance_pixel # position + 32
	point_to_reach_top = position.y - moving_distance_pixel # position -32

func _physics_process(delta: float) -> void:
	if moving_down :
		to(delta)
		if position.y >= point_to_reach_bottom :
			moving_down = false
	else :
		and_fro(delta)
		if position.y <= point_to_reach_top :
			moving_down = true

func to(delta : float) :
	position.y += speed * delta

func and_fro(delta : float) :
	position.y -= speed * delta

I’m going to try to change the type from AnimatableBody2D to CharacterBody2D and keep you posted!

Thanks for your time!

8

Hi all!
Well, the solution to my problem was this : I had to UNCHECK the snapping in the project settings…

image1483×447 44 KB

Now, everything looks good : Watch Enregistrement de l'écran 2025-02-27 101046 | Streamable

Thanks again for your time!

1 Like
