SVG Texture resource

Help
1

Godot Version 4.5. Linux Fedora Workstation 42
I want to create an SVGTexture resource. https://www.reddit.com/r/godot/comments/1kcf7ik/svgtexture_from_godot_45_dev_3/

There’s no such option in the resource selection. Why?
https://docs.godotengine.org/ - there is no manual about this.

2

The name was changed from 4.5 beta to 4.5 release. It is now DPITexture.

2 Likes
3

Thank you!

1 Like
4

But it’s still unclear how to use it. I created a sprite and selected the DPITexture. But how do I insert the SVG file?

1 Like
5
  1. Drag the .svg file into your FileSystem dock.
    image263×494 13.5 KB

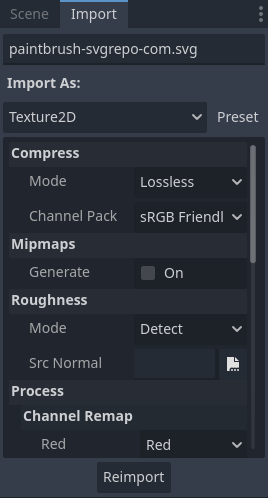

  2. Click on the Import tab.
    image268×498 20 KB

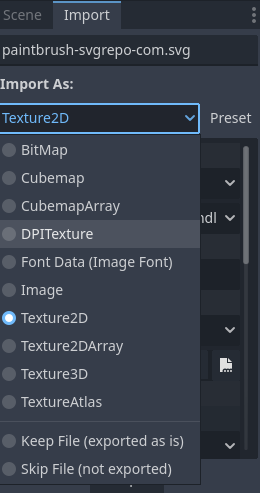

  3. Select the Import As drop-down that reads Texture2D.
  4. Select DPITexture from the dropdown.
    image260×493 17.8 KB

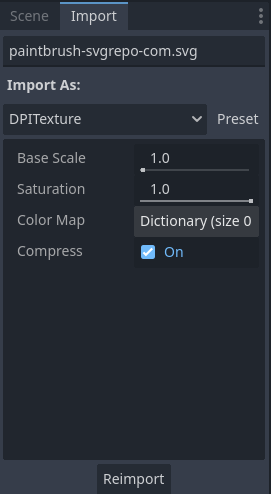

  5. Press the Reimport button.
    image271×494 13.3 KB
  6. Press the Ok button on the warning.
  7. Use it as normal anywhere you want.
3 Likes
6

Thank you very much for your training

1 Like
7
