TabContainer selected tab outline properties?

DaveInDev · June 25, 2025, 9:02am

Godot Version

4.4.1

Question

Hi there,

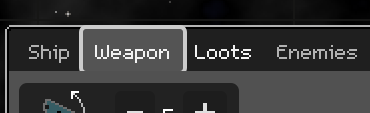

I searched everywhere (well obviously not ), but I did not find where to tweak the outline around the selected tab in a TabContainer. The white line you see on this picture :

mrcdk · June 25, 2025, 4:34pm

That’s the TabContainer.tab_focus theme style.

DaveInDev · June 25, 2025, 4:41pm

thanks ! Then I still wonder what is the difference between tab_select and tab_focus…

mrcdk · June 25, 2025, 5:11pm

tab_selected is the light-gray background and tab_focus is just the white outline.

DaveInDev · June 25, 2025, 5:21pm

Are you sure ? because the BG color of tab_focus has an influence on the color of the inside of the tab… It seems to override tab_selected BG color.

mrcdk · June 25, 2025, 5:49pm

As explained in the tab_focus documentation:

The tab_focus StyleBox is displayed over the base StyleBox of the selected tab, so a partially transparent StyleBox should be used to ensure the base StyleBox remains visible.

So you’ll need to set the bg color to something transparent or disable StyleBoxFlat.draw_center
