The start/end quaternion must be normalized

Saint · November 21, 2024, 8:32am

Does anyone know a fix for this.

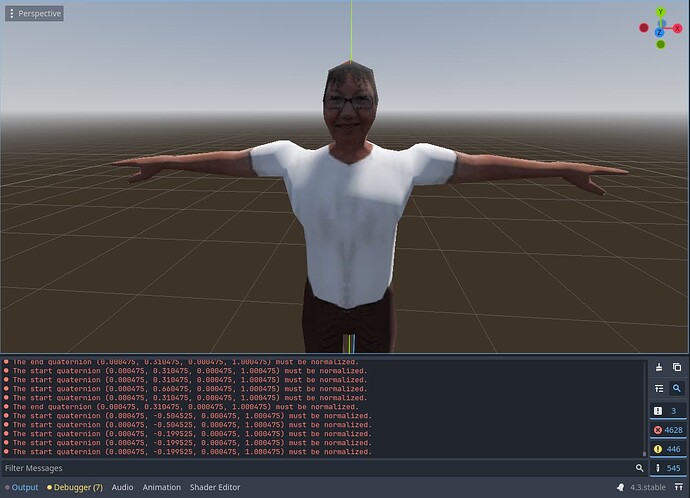

I get this error every time I try and play my keyframes.

This is how the animation player is set up.

Saint · November 21, 2024, 9:01am

I’ve managed to quaternion both the start and end but I can’t put keyframes between for the actual animation

WannaKnowMorePls · November 21, 2024, 9:04am

I’ve yet to encounter this problem in my work, but here are some resources I found for you:

https://www.reddit.com/r/godot/comments/t8z7bw/the_start_quaternion_must_be_normalized_ok_godot/?rdt=57773

github.com/godotengine/godot-proposals

AnimationPlayer 3D Transfrom Track Rotation ask for normalized tranform for rotation

opened 08:29PM - 20 Apr 20 UTC

danilw

topic:editor topic:3d topic:animation

**Describe the project you are working on:** 3D animated character **Describ…e the problem or limitation you are having in your project:** Creating new *3D Transfrom Track* in Godot AnimationPlayer, setting rotation is **not usable** for hand-editing, when it presented in GUI. Rotation ask for normalized Quat, it make impossible to edit it in GUI. if set not normalized Quat (as for example, someone may expect it rotation by Rad-s) result it error ``` The end quaternion must be normalized. The start quaternion must be normalized. ``` from [docs class-animation](https://docs.godotengine.org/en/stable/classes/class_animation.html#class-animation) `int transform_track_insert_key ( int track_idx, float time, Vector3 location, Quat rotation, Vector3 scale )` **Describe the feature / enhancement and how it helps to overcome the problem or limitation:** I ask to make in animation *3D Transfrom Track*-editing **GUI** Rotation by angles or rad, to make it useful for hand-editing.

Saint · November 21, 2024, 9:33am

Thanks for the resources! Looking into still but hopefully getting closer.

Saint · November 21, 2024, 9:43am

Found the solution.

All it took was enabling the little pencil on the right of rotation, and then changing the values on Temporary Eular.
animation_solution

WannaKnowMorePls · November 21, 2024, 9:47am

Good job! I’m glad it worked out.

Saint · November 21, 2024, 9:48am

Thanks again for your help!
