Trying FPS and crouch

Help
1

Godot Version

4.5 Stable Ver.

Question

I copied and pasted from the description on YouTube and followed his direction. GitHub and tutorial.

extends CharacterBody3D


@export var speed = 8.0
@export var crouch_speed = 4.0
@export var accel = 16.0
@export var jump = 8.0
@export var crouch_height = 2.4
@export var crouch_transition = 8.0
@export var sensitivity = 0.5
@export var min_angle = -80
@export var max_angle = 90

@onready var head = $"../Head"
@onready var collision_shape = $CollisionShape3D
@onready var top_cast = $"../TopCast"

var gravity = ProjectSettings.get_setting("physics/3d/default_gravity")
var look_rot : Vector2
var stand_height : float


func _ready():
	var stand_height = collision_shape.shape.height
	Input.set_mouse_mode(Input.MOUSE_MODE_CAPTURED)


func _physics_process(delta):
	var move_speed = speed

	if not is_on_floor():
		velocity.y -= gravity * delta
	else:
		if Input.is_action_just_pressed("jump"):
			velocity.y = jump
		elif Input.is_action_pressed("crouch") or top_cast.is_colliding():
			move_speed = crouch_speed
			crouch(delta)
		else:
			crouch(delta, true)

	var input_dir = Input.get_vector("left", "right", "forward", "backward")
	var direction = (transform.basis * Vector3(input_dir.x, 0, input_dir.y)).normalized()
	if direction:
		velocity.x = lerp(velocity.x, direction.x * move_speed, accel * delta)
		velocity.z = lerp(velocity.z, direction.z * move_speed, accel * delta)
	else:
		velocity.x = move_toward(velocity.x, 1, accel * delta)
		velocity.z = move_toward(velocity.z, 1, accel * delta)

	move_and_slide()

	var plat_rot = get_platform_angular_velocity()
	look_rot.y += rad_to_deg(plat_rot.y * delta)
	head.rotation_degrees.x = look_rot.x
	rotation_degrees.y = look_rot.y


func _input(event):
	if event is InputEventMouseMotion:
		look_rot.y -= (event.relative.x * sensitivity)
		look_rot.x -= (event.relative.y * sensitivity)
		look_rot.x = clamp(look_rot.x, min_angle, max_angle)


func crouch(delta : float, reverse = false):
	var target_height : float = crouch_height if not reverse else stand_height

	collision_shape.shape.height = lerp(collision_shape.shape.height, target_height, crouch_transition * delta)
	collision_shape.position.y = lerp(collision_shape.position.y, target_height * 0.5, crouch_transition * delta)
	head.position.y = lerp(head.position.y, target_height - 1, crouch_transition * delta)

Got some errors. I donā€™t understand this.

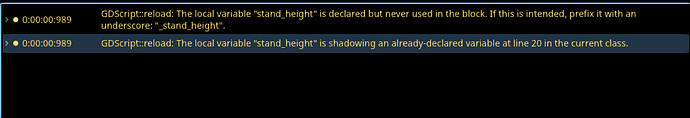

image1052Ɨ180 20.7 KB

W 0:00:00:989 GDScript::reload: The local variable ā€œstand_heightā€ is shadowing an already-declared variable at line 20 in the current class.
SHADOWED_VARIABLE
Player.gd:24 @ GDScript::reload()

2

Remove var from this line.

3

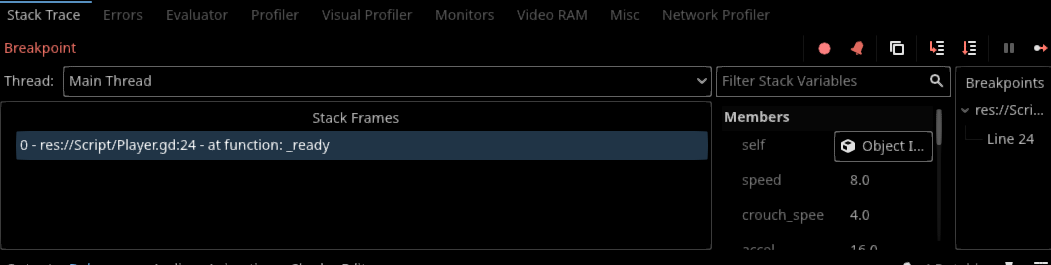

After removed var, the error appeared when played;

image1051Ɨ265 28.1 KB

4

Itā€™s not an error. Itā€™s a debugger breakpoint you probably accidentally set. Is there a red dot left of the line number on line 24? Click on it again to deactivate the breakpoint.

5

Yeah, Im clicking on the red dot. Its looks like arrow after clicking on the red dot, then Iā€™ve played it and this showed up. I havenā€™t changed anything.

E 0:00:01:736 _ready: Invalid access to property or key ā€˜heightā€™ on a base object of type ā€˜BoxShape3Dā€™.
Player.gd:24 @ _ready()
Player.gd:24 @ _ready()

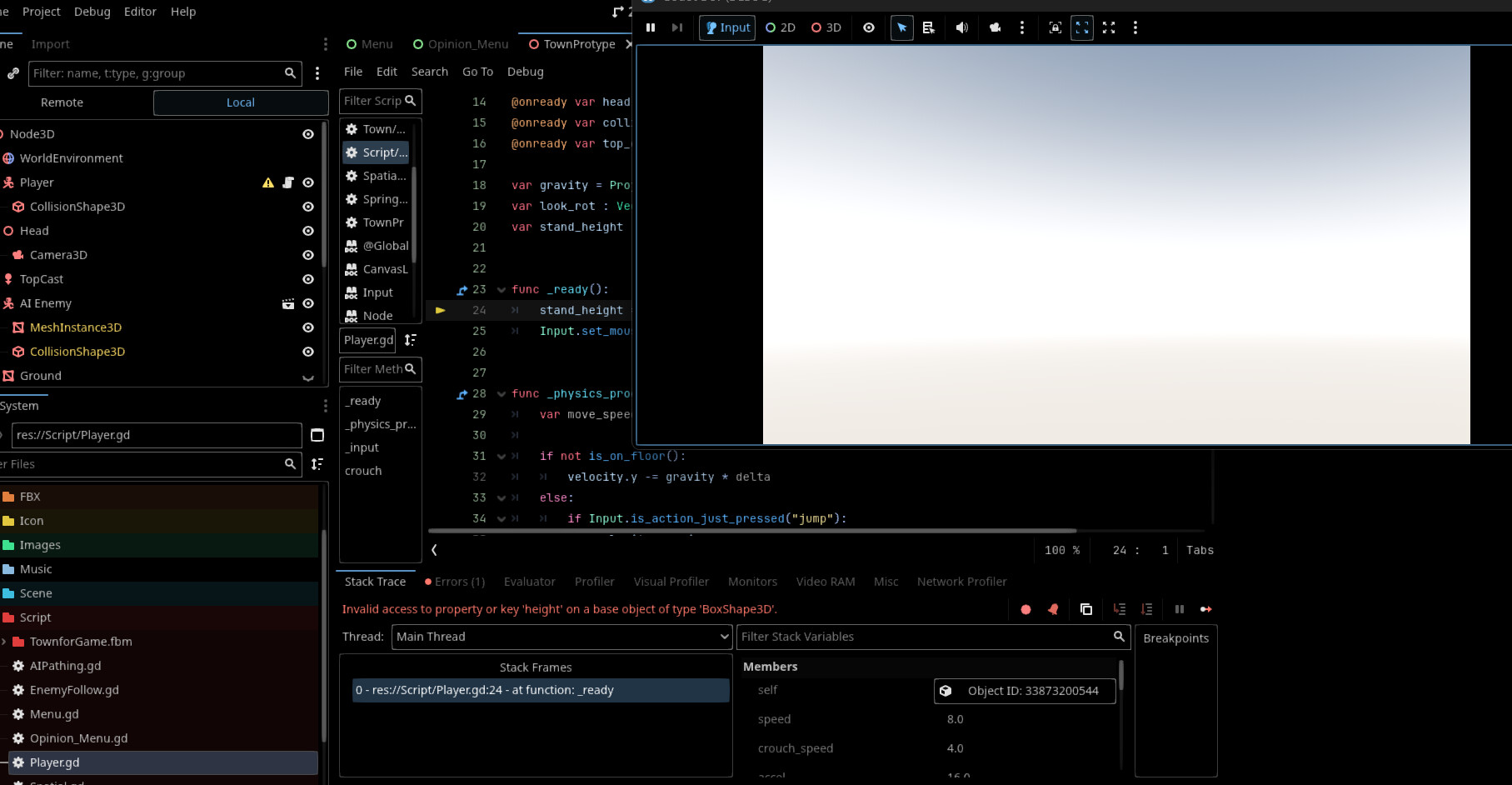

image1815Ɨ942 193 KB

6

As the error says, thereā€™s no such property on that shape object. Are you using the same kind of shape as used in the tutorial?

7

I notice he got CapulseShape3D, but I dont think so because all shape should be same.
Iā€™m using BoxShape3D.

8

Shapes are not same. BoxShape3D doesnā€™t have the height property while CapulseShape3D has it. Hence your error. You should follow the tutorial as closely as possible to avoid such gotchas.

1 Like
9

Ivee changed it to CapsuleShape3D and played it. Suddenly the camera rotates itself.
Notices Iā€™ve only move my mouse; when I moved Up is right rotates and down is left rotates.
WASD isnā€™t moving. I did set up all input in project setting.

10

Go through the tutorial again and double check if you did everything exactly as the tutorial says.

11

Iā€™ve notice Nagi on Youtube skipped some and Iā€™ve found the problem, he didnā€™t come back to fix the rotation for up and down or left and right. Iā€™ve copied and pasted it on my Godot 4.5 stable.

head.rotation_degrees.y = look_rot.y
rotation_degrees.x = look_rot.x

I switched x to y and y to x, so it can rotate left and right, but Nagi didnā€™t do the same for up and down. How I do rotate for up and down?

And for WASD are still issues. I rechecked twice, but still the same.

12

Youā€™ll need to re-check as many times as needed to find where you made the mistake.

13

Finally. Iā€™ve found the problem.

All of this I changed from x to z in one line is this;

func _physics_process(_delta)
head.rotation.z = deg_to_rad(look_rot.x)

Also, I just has to find the WASD control.

	# --- WASD movement ---
var direction = Vector3.ZERO

if Input.is_action_pressed("left"):
	direction -= transform.basis.z
if Input.is_action_pressed("right"):
	direction += transform.basis.z
if Input.is_action_pressed("backward"):
	direction -= transform.basis.x
if Input.is_action_pressed("forward"):
	direction += transform.basis.x

Finally, finally its works! Thanks to AI ChatGPT for pointing this out.

1 Like
