I scrapped my Navigation nodes and used A* mapping for platformer pathfinding.
I found this great tutorial by TheSolarString and finally made an A* level map, instead of relying on Navigation nodes. The code I copied from the tutorial was in C# but I tried my best to translate it to GDScript. Here’s a look at how my A* level map turned out.

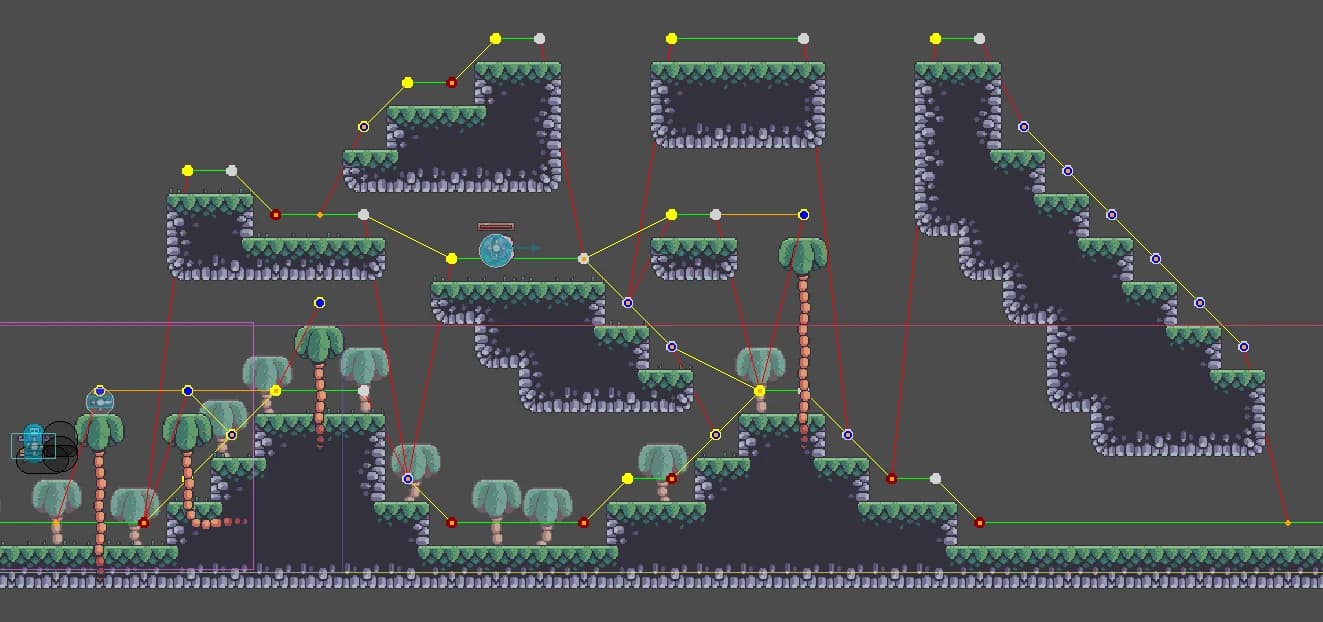

I’m using this asset pack by Pixel Frog from itch.io. The dots are PackedScene instances of a Sprite2D, being modulated to indicate their properties (left edge, right edge, left wall, right wall, fall point). The lines are the connections. The red lines are unidirectional A* path connections for falling from tiles not reachable by jump height. I am so happy about how this turned out and would love to share the translated code of the A* Map Generator. Keep in mind, though, that the TileMapLayer this script is connected to should only contain the walkable tiles, and all other tiles in it should be empty (the trees you see in mine are on a different TileMapLayer, except for the foreground treetops which are in the same TileMapLayer node as the ground tiles).
Here’s the code for the A* Map Generator in GDScript:
@tool
extends TileMapLayer
class PointInfo:
var IsFallTile := false
var IsLeftEdge := false
var IsRightEdge := false
var IsLeftWall := false
var IsRightWall := false
var IsPositionPoint := false
var PointID: int
var Position: Vector2
func _init(pointID : int, _position : Vector2):
PointID = pointID
Position = _position
pass
func to_dict() -> Dictionary:
return {
"IsFallTile": IsFallTile,
"IsLeftEdge": IsLeftEdge,
"IsRightEdge": IsRightEdge,
"IsLeftWall": IsLeftWall,
"IsRightWall": IsRightWall,
"IsPositionPoint": IsPositionPoint,
"PointID": PointID,
"Position": [Position.x, Position.y] # Serialize Vector2 as array
}
@export_category("Navigation")
@export var ShowDebugGraph = true
@export var JumpDistance := 3
@export var JumpHeight := 2
const CELL_IS_EMPTY = -1
const MAX_TILE_FALL_SCAN_DEPTH = 500
var _astarGraph := AStar2D.new()
var _usedTiles : Array[Vector2i]
var _graphPoint : PackedScene
var _pointInfoList : Array[PointInfo]
func _ready():
#if Engine.is_editor_hint():
_graphPoint = preload("res://scenes/levels/graph_point.tscn")
_usedTiles = get_used_cells()
BuildGraph()
func _draw():
if ShowDebugGraph:
ConnectPoints()
func BuildGraph() -> void:
AddGraphPoints()
func DrawDebugLine(to : Vector2, from : Vector2, color : Color) -> void:
if ShowDebugGraph:
draw_line(to, from, color)
func AddGraphPoints() -> void:
for tile in _usedTiles:
AddLeftEdgePoint(tile)
AddRightEdgePoint(tile)
AddLeftWallPoint(tile)
AddRightWallPoint(tile)
for tile in _usedTiles:
AddFallPoint(tile)
func TileAlreadyExistInGraph(tile: Vector2i) -> int:
var localPos = map_to_local(tile)
if _astarGraph.get_point_count() > 0:
var pointId = _astarGraph.get_closest_point(localPos)
if _astarGraph.get_point_position(pointId) == localPos:
return pointId
return -1
func AddVisualPoint(tile: Vector2i, color = null, _scale: float = 1.0) -> void:
if not ShowDebugGraph: return
var visualPoint : Sprite2D = _graphPoint.instantiate() as Sprite2D
if color:
visualPoint.modulate = color
if _scale != 1.0 and _scale > 0.1:
visualPoint.scale = Vector2(_scale, _scale)
visualPoint.position = map_to_local(tile)
add_child(visualPoint)
func GetPointInfo(tile: Vector2i) -> PointInfo:
for pointInfo in _pointInfoList:
if pointInfo.Position == map_to_local(tile):
return pointInfo
return null
# ================================= Connect Graph Points =============================== #
func ConnectPoints():
for p1 in _pointInfoList:
ConnectHorizontalPoints(p1)
ConnectJumpPoints(p1)
ConnectFallPoints(p1)
func ConnectFallPoints(p1 : PointInfo):
if p1.IsLeftEdge || p1.IsRightEdge:
var tilePos = local_to_map(p1.Position)
tilePos.y += 1
var fallPoint = FindFallPoint(tilePos)
if fallPoint:
var pointInfo = GetPointInfo(fallPoint)
var p1Map := local_to_map(p1.Position)
var p2Map := local_to_map(pointInfo.Position)
if p1Map.distance_to(p2Map) <= JumpHeight:
_astarGraph.connect_points(p1.PointID, pointInfo.PointID)
DrawDebugLine(p1.Position, pointInfo.Position, Color.YELLOW)
else:
_astarGraph.connect_points(p1.PointID, pointInfo.PointID, false)
DrawDebugLine(p1.Position, pointInfo.Position, Color.RED)
func ConnectJumpPoints(p1 : PointInfo):
for p2 in _pointInfoList:
ConnectHorizontalPlatformJumps(p1, p2)
ConnectDiagonalJumpRightEdgeToLeftEdge(p1, p2)
ConnectDiagonalJumpLeftEdgeToRightEdge(p1, p2)
pass
func ConnectDiagonalJumpRightEdgeToLeftEdge(p1 : PointInfo, p2 : PointInfo):
if p1.IsRightEdge:
var p1Map := local_to_map(p1.Position)
var p2Map := local_to_map(p2.Position)
if p2.IsLeftEdge \
&& p2.Position.x > p1.Position.x \
&& p2.Position.y > p1.Position.y \
&& abs(p2Map.y - p1Map.y) < JumpHeight \
&& abs(p2Map.x - p1Map.x) < JumpDistance:
_astarGraph.connect_points(p1.PointID, p2.PointID)
DrawDebugLine(p1.Position, p2.Position, Color.YELLOW)
func ConnectDiagonalJumpLeftEdgeToRightEdge(p1 : PointInfo, p2 : PointInfo):
if p1.IsLeftEdge:
var p1Map := local_to_map(p1.Position)
var p2Map := local_to_map(p2.Position)
if p2.IsRightEdge \
&& p2.Position.x < p1.Position.x \
&& p2.Position.y > p1.Position.y \
&& abs(p2Map.y - p1Map.y) < JumpHeight \
&& abs(p2Map.x - p1Map.x) < JumpDistance:
_astarGraph.connect_points(p1.PointID, p2.PointID)
DrawDebugLine(p1.Position, p2.Position, Color.YELLOW)
func ConnectHorizontalPlatformJumps(p1 : PointInfo, p2 : PointInfo):
if p1.PointID == p2.PointID:
return
if p2.Position.y == p1.Position.y && p1.IsRightEdge && p2.IsLeftEdge:
if p2.Position.x > p1.Position.x:
var p1Map = local_to_map(p1.Position)
var p2Map = local_to_map(p2.Position)
if abs(p2Map.x - p1Map.x) < JumpDistance:
_astarGraph.connect_points(p1.PointID, p2.PointID)
DrawDebugLine(p1.Position, p2.Position, Color.ORANGE)
func ConnectHorizontalPoints(p1 : PointInfo):
if p1.IsLeftEdge || p1.IsLeftWall || p1.IsFallTile:
var closest : PointInfo = null
for p2 in _pointInfoList:
if p1.PointID == p2.PointID:
continue
if (p2.IsRightEdge || p2.IsRightWall || p2.IsFallTile) && p2.Position.y == p1.Position.y && p2.Position.x > p1.Position.x:
if not closest:
closest = PointInfo.new(p2.PointID, p2.Position)
if p2.Position.x < closest.Position.x:
closest.Position = p2.Position
closest.PointID = p2.PointID
if closest:
if not HorizontalConnectionCannotBeMade(p1.Position, closest.Position):
_astarGraph.connect_points(p1.PointID, closest.PointID)
DrawDebugLine(p1.Position, closest.Position, Color.GREEN)
func HorizontalConnectionCannotBeMade(p1 : Vector2, p2 : Vector2) -> bool:
var startScan : Vector2i = local_to_map(p1)
var endScan : Vector2i = local_to_map(p2)
for i in range(startScan.x, endScan.x):
if get_cell_source_id(Vector2i(i, startScan.y)) != CELL_IS_EMPTY || get_cell_source_id(Vector2i(i, startScan.y + 1)) == CELL_IS_EMPTY:
return true
return false
# ====================================================================================== #
# =================================== Tile Fall Points ================================= #
func GetStartScanTileForFallPoint(tile: Vector2i):
var tileAbove = Vector2i(tile.x, tile.y - 1)
var point = GetPointInfo(tileAbove)
if point == null: return null
var tileScan = Vector2i.ZERO
if point.IsLeftEdge:
tileScan = Vector2i(tile.x - 1, tile.y - 1)
return tileScan
elif point.IsRightEdge:
tileScan = Vector2i(tile.x + 1, tile.y - 1)
return tileScan
return null
# ====================================================================================== #
func FindFallPoint(tile: Vector2i):
var scan = GetStartScanTileForFallPoint(tile)
if scan == null: return null
var tileScan = Vector2i(scan)
var fallTile : Vector2i
for i in range(1, MAX_TILE_FALL_SCAN_DEPTH + 1):
if get_cell_source_id(Vector2i(tileScan.x, tileScan.y + 1)) != CELL_IS_EMPTY:
fallTile = tileScan
break
tileScan.y += 1
return fallTile
func AddFallPoint(tile: Vector2i):
var fallTile = FindFallPoint(tile)
if fallTile == null: return
var fallTileLocal = Vector2i(map_to_local(fallTile))
var existingPointId = TileAlreadyExistInGraph(fallTile)
if existingPointId == -1:
var pointId = _astarGraph.get_available_point_id()
var pointInfo = PointInfo.new(pointId, fallTileLocal)
pointInfo.IsFallTile = true
_pointInfoList.append(pointInfo)
_astarGraph.add_point(pointId, fallTileLocal)
AddVisualPoint(fallTile, Color.ORANGE, 0.5)
else:
single(_pointInfoList, func(p): return p.PointID == existingPointId).IsFallTile = true
AddVisualPoint(fallTile, Color.ORANGE, 0.4)
# ================================== Tile Edge & Wall Graph Points ===================== #
func AddLeftEdgePoint(tile: Vector2i) -> void:
if TileAboveExists(tile):
return
if get_cell_source_id(Vector2i(tile.x - 1, tile.y)) == CELL_IS_EMPTY:
var tileAbove = Vector2i(tile.x, tile.y - 1)
var existingPointId = TileAlreadyExistInGraph(tileAbove)
if existingPointId == -1:
var pointId = _astarGraph.get_available_point_id()
var pointInfo = PointInfo.new(pointId, Vector2i(map_to_local(tileAbove)))
pointInfo.IsLeftEdge = true
_pointInfoList.append(pointInfo)
_astarGraph.add_point(pointId, Vector2i(map_to_local(tileAbove)))
AddVisualPoint(tileAbove, Color.YELLOW)
else:
single(_pointInfoList, func(p): return p.PointID == existingPointId).IsLeftEdge = true
AddVisualPoint(tileAbove, Color.BLUE, 0.75)
func AddRightEdgePoint(tile: Vector2i) -> void:
if TileAboveExists(tile):
return
if get_cell_source_id(Vector2i(tile.x + 1, tile.y)) == CELL_IS_EMPTY:
var tileAbove = Vector2i(tile.x, tile.y - 1)
var existingPointId = TileAlreadyExistInGraph(tileAbove)
if existingPointId == -1:
var pointId = _astarGraph.get_available_point_id()
var pointInfo = PointInfo.new(pointId, Vector2i(map_to_local(tileAbove)))
pointInfo.IsRightEdge = true
_pointInfoList.append(pointInfo)
_astarGraph.add_point(pointId, Vector2i(map_to_local(tileAbove)))
AddVisualPoint(tileAbove, Color.LIGHT_GRAY)
else:
single(_pointInfoList, func(p): return p.PointID == existingPointId).IsRightEdge = true
AddVisualPoint(tileAbove, Color.BLUE, 0.75)
func AddLeftWallPoint(tile: Vector2i) -> void:
if TileAboveExists(tile):
return
if get_cell_source_id(Vector2i(tile.x - 1, tile.y - 1)) != CELL_IS_EMPTY:
var tileAbove = Vector2i(tile.x, tile.y - 1)
var existingPointId = TileAlreadyExistInGraph(tileAbove)
if existingPointId == -1:
var pointId = _astarGraph.get_available_point_id()
var pointInfo = PointInfo.new(pointId, Vector2i(map_to_local(tileAbove)))
pointInfo.IsLeftWall = true
_pointInfoList.append(pointInfo)
_astarGraph.add_point(pointId, Vector2i(map_to_local(tileAbove)))
AddVisualPoint(tileAbove, Color.DARK_RED)
else:
single(_pointInfoList, func(p): return p.PointID == existingPointId).IsLeftWall = true
AddVisualPoint(tileAbove, Color.BLUE, 0.75)
func AddRightWallPoint(tile: Vector2i) -> void:
if TileAboveExists(tile):
return
if get_cell_source_id(Vector2i(tile.x + 1, tile.y - 1)) != CELL_IS_EMPTY:
var tileAbove = Vector2i(tile.x, tile.y - 1)
var existingPointId = TileAlreadyExistInGraph(tileAbove)
if existingPointId == -1:
var pointId = _astarGraph.get_available_point_id()
var pointInfo = PointInfo.new(pointId, Vector2i(map_to_local(tileAbove)))
pointInfo.IsRightWall = true
_pointInfoList.append(pointInfo)
_astarGraph.add_point(pointId, Vector2i(map_to_local(tileAbove)))
AddVisualPoint(tileAbove, Color.DARK_RED)
else:
single(_pointInfoList, func(p): return p.PointID == existingPointId).IsRightWall = true
AddVisualPoint(tileAbove, Color.BLUE, 0.75)
func TileAboveExists(tile: Vector2i) -> bool:
if get_cell_source_id(Vector2i(tile.x, tile.y - 1)) == CELL_IS_EMPTY:
return false
return true
# ====================================================================================== #
# ======== Helpers ======== #
func single(array: Array, predicate: Callable) -> PointInfo:
var result = null
var found := false
for element in array:
if predicate.call(element):
if found:
push_error("single(): more than one matching element.")
return null
result = element
found = true
if not found:
push_error("single(): no matching element.")
return null
return result
# ======================== #
P.S. I don’t know much about how to use tool scripts and I can’t seem to make this one auto update when I modify the TileMap. Feel free to modify this code as you see fit! (And also point out errors if there are any)
