Godot Version
4.5
Question
I have this 3d pixelart shader(the shader is on a quad in front of the camera) that has this weird side effect where the platform the model is on is partially turned dark only when the shadows(the dark lines around the model) are turned on in the shader but when I turn off the shadows it goes away. How do i fix this?

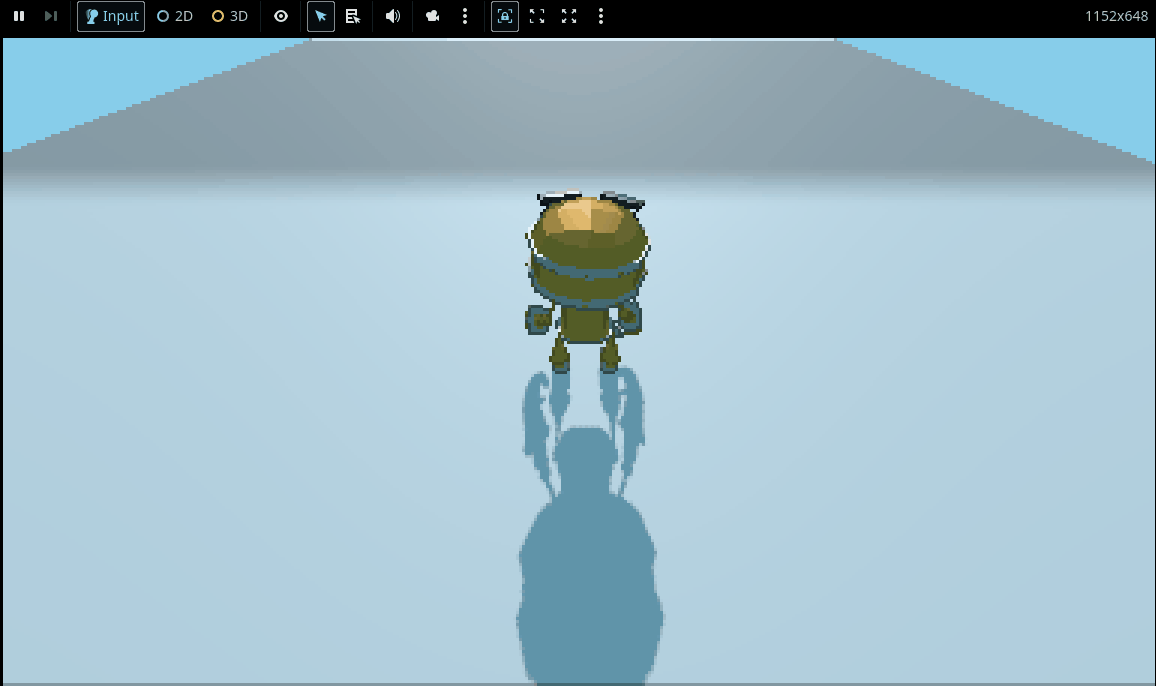

Gif for reference:
Shader code:
shader_type spatial;
render_mode unshaded;uniform sampler2D DEPTH_TEXTURE : hint_depth_texture, filter_linear_mipmap;
uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;
uniform sampler2D NORMAL_TEXTURE : hint_normal_roughness_texture, filter_nearest;uniform bool shadows_enabled = true;
uniform bool highlights_enabled = true;
uniform float shadow_strength : hint_range(0.0, 1.0, 0.01) = 0.4;
uniform float highlight_strength : hint_range(0.0, 1.0, 0.01) = 0.1;
uniform vec3 highlight_color : source_color = vec3(1.);
uniform vec3 shadow_color : source_color = vec3(0.0);varying mat4 model_view_matrix;
float getDepth(vec2 screen_uv, sampler2D depth_texture, mat4 inv_projection_matrix){
// Credit: Depth Modulated Pixel Outline in Screen Space - Godot Shaders
float raw_depth = texture(depth_texture, screen_uv)[0];
vec3 normalized_device_coordinates = vec3(screen_uv * 2.0 - 1.0, raw_depth);
vec4 view_space = inv_projection_matrix * vec4(normalized_device_coordinates, 1.0);
view_space.xyz /= view_space.w;
return -view_space.z;
}vec3 getPos(float depth, mat4 mvm, mat4 ipm, vec2 suv, mat4 wm, mat4 icm){
vec4 pos = inverse(mvm) * ipm * vec4((suv * 2.0 - 1.0), depth * 2.0 - 1.0, 1.0);
pos.xyz /= (pos.w+0.0001*(1.-abs(sign(pos.w))));
return (pos*icm).xyz+wm[3].xyz;
}float normalIndicator(vec3 normalEdgeBias, vec3 baseNormal, vec3 newNormal, float depth_diff){
// Credit: three.js webgl - post processing - pixelation
float normalDiff = dot(baseNormal - newNormal, normalEdgeBias);
float normalIndicator = clamp(smoothstep(-.01, .01, normalDiff), 0.0, 1.0);
float depthIndicator = clamp(sign(depth_diff * .25 + .0025), 0.0, 1.0);
return (1.0 - dot(baseNormal, newNormal)) * depthIndicator * normalIndicator;
}void vertex(){
model_view_matrix = VIEW_MATRIX * mat4(INV_VIEW_MATRIX[0], INV_VIEW_MATRIX[1], INV_VIEW_MATRIX[2], MODEL_MATRIX[3]);
}void fragment() {
vec2 e = vec2(1./VIEWPORT_SIZE.xy);// Shadows
float depth_diff = 0.0;
float neg_depth_diff = .5;
if (shadows_enabled) {
float depth = getDepth(SCREEN_UV, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
float du = getDepth(SCREEN_UV+vec2(0., -1.)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
float dr = getDepth(SCREEN_UV+vec2(1., 0.)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
float dd = getDepth(SCREEN_UV+vec2(0., 1.)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
float dl = getDepth(SCREEN_UV+vec2(-1., 0.)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
depth_diff += clamp(du - depth, 0., 1.);
depth_diff += clamp(dd - depth, 0., 1.);
depth_diff += clamp(dr - depth, 0., 1.);
depth_diff += clamp(dl - depth, 0., 1.);
neg_depth_diff += depth - du;
neg_depth_diff += depth - dd;
neg_depth_diff += depth - dr;
neg_depth_diff += depth - dl;
neg_depth_diff = clamp(neg_depth_diff, 0., 1.);
neg_depth_diff = clamp(smoothstep(0.5, 0.5, neg_depth_diff)*10., 0., 1.);
depth_diff = smoothstep(0.2, 0.3, depth_diff);
// ALBEDO = vec3(neg_depth_diff);
}// Highlights
float normal_diff = 0.;
if (highlights_enabled) {
vec3 normal = texture(NORMAL_TEXTURE, SCREEN_UV).rgb * 2.0 - 1.0;
vec3 nu = texture(NORMAL_TEXTURE, SCREEN_UV+vec2(0., -1.)*e).rgb * 2.0 - 1.0;
vec3 nr = texture(NORMAL_TEXTURE, SCREEN_UV+vec2(1., 0.)*e).rgb * 2.0 - 1.0;
vec3 nd = texture(NORMAL_TEXTURE, SCREEN_UV+vec2(0., 1.)*e).rgb * 2.0 - 1.0;
vec3 nl = texture(NORMAL_TEXTURE, SCREEN_UV+vec2(-1., 0.)*e).rgb * 2.0 - 1.0;
vec3 normal_edge_bias = (vec3(1., 1., 1.));
normal_diff += normalIndicator(normal_edge_bias, normal, nu, depth_diff);
normal_diff += normalIndicator(normal_edge_bias, normal, nr, depth_diff);
normal_diff += normalIndicator(normal_edge_bias, normal, nd, depth_diff);
normal_diff += normalIndicator(normal_edge_bias, normal, nl, depth_diff);
normal_diff = smoothstep(0.2, 0.8, normal_diff);
normal_diff = clamp(normal_diff-neg_depth_diff, 0., 1.);
// ALBEDO = vec3(normal_diff);
}vec3 original_color = texture(SCREEN_TEXTURE, SCREEN_UV).rgb;
vec3 final_highlight_color = mix(original_color, highlight_color, highlight_strength);
vec3 final_shadow_color = mix(original_color, shadow_color, shadow_strength);
vec3 final = original_color;
if (highlights_enabled) {
final = mix(final, final_highlight_color, normal_diff);
}
if (shadows_enabled) {
final = mix(final, final_shadow_color, depth_diff);
}
ALBEDO = final;float alpha_mask = depth_diff * float(shadows_enabled) + normal_diff * float(highlights_enabled);
ALPHA = clamp((alpha_mask) * 5., 0., 1.);
}
