CanvasLayer not showing correctly in game

[SalehDevStuf]

V 4.5.1

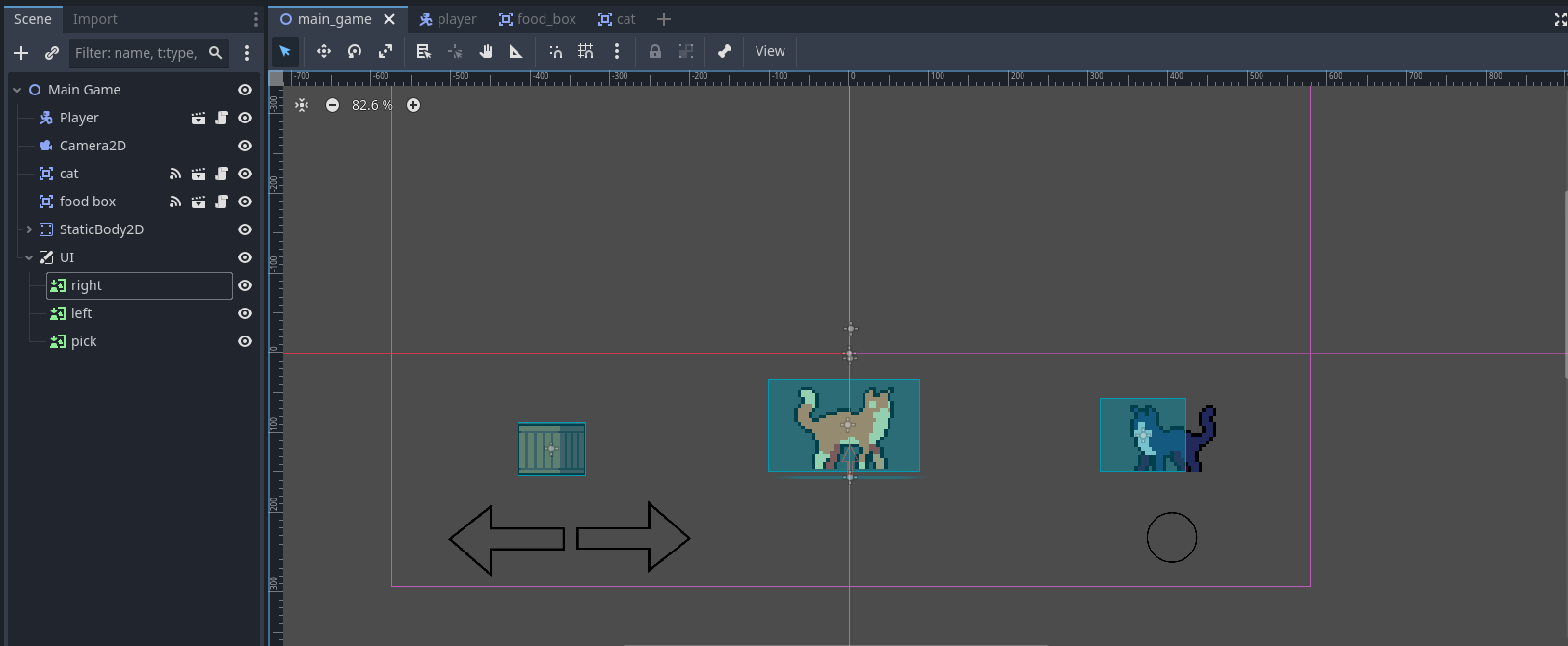

i have my camera and my ui elements setup,
in the 2d tab it is all right

but when i run the game
it will be disordered and messed up

why is that ?

[SalehDevStuf]

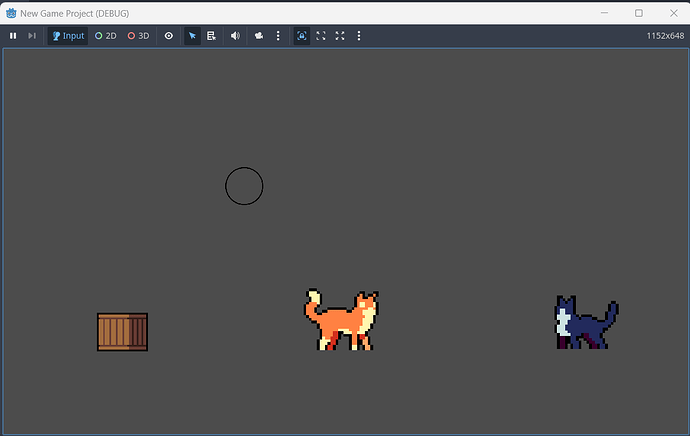

here is the game when i run

[gertkeno]

This is actually the same issue as this

label does not following camera's position

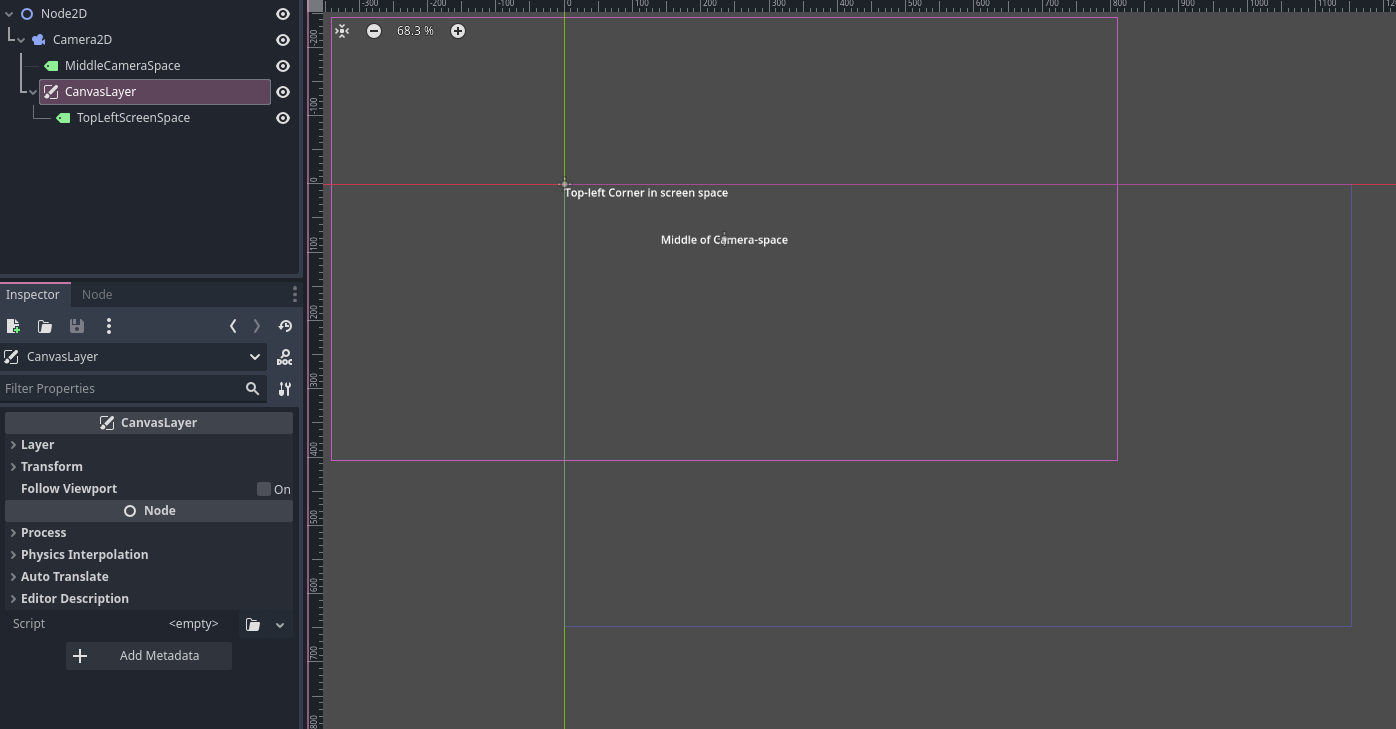

You have positioned the label in camera space; do not use Follow Viewport. Screen-space is the light purple box from origin to your project’s window size, camera space is the bright purple box around your camera node. [2025-11-15-121527_1396x729_scrot]

You are positioning the UI elements inside the pink box which is the Camera2D’s view, but the window viewport is the light purple starting at 0, 0

[SalehDevStuf]

so this is something natural and ok ?
or I should do something to set the pink and blue box at the same position ?

[gertkeno]

You should build your UI relative to the blue box

[SalehDevStuf]

thanks man
