How to make a 3D platform with repeating texture.
3D platform with a repeating texture can be made by toggling UV1 toggles: Triplanar → World Triplanar.
Here is a simple walkthrough.
I will use a kenney_voxel-pack/PNG/dirt.png image texture.
First let’s make regular platform.
It’s a simple StaticBody3D with sub-nodes CollisionShape3D and MeshInstance3D.
The CollisionShape3D Shape should be set to BoxShape3D
Setting MeshInstance3D Mesh

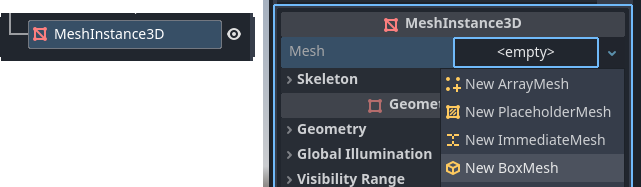

The MeshInstance3D Mesh should be set to New BoxMesh
Setting MeshInstance3D Material
Then we click on the Mesh of MeshInstance3D to expand options.

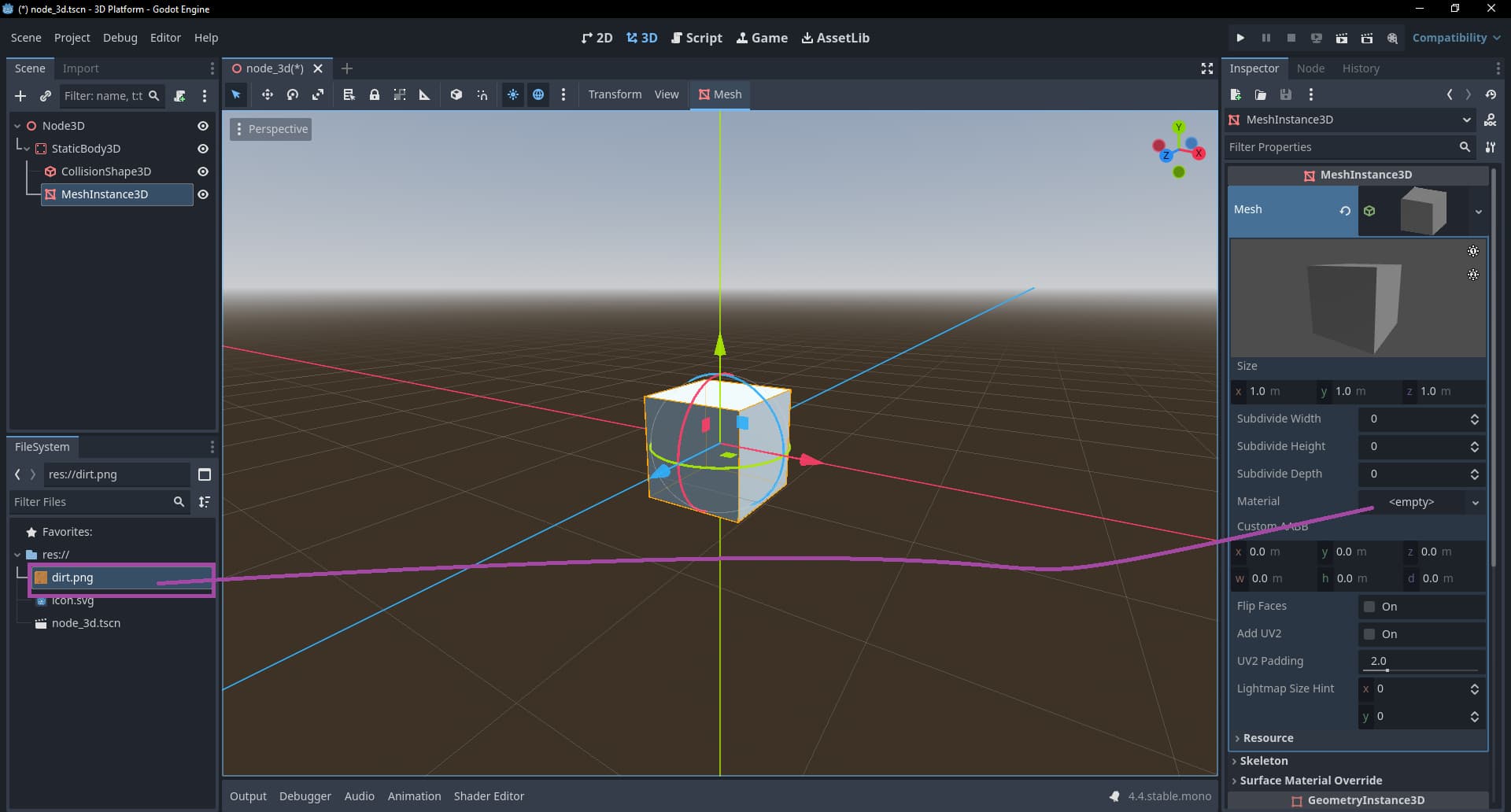

In the MeshInstance3D Mesh options we should see Material to which we drag our dirt.png image.
Setting MeshInstance3D Material to Triplanar: World Triplanar
This is the core of our tutorial. It will make Material a world Triplanar
which as you will see, will make Material into a seamless repetitive texture.
Now we click on the Material to expand options.

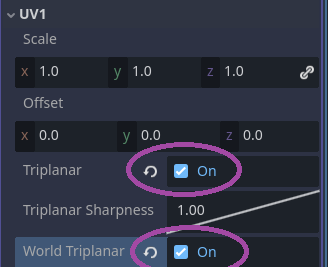

Scroll down and click on the Material UV1 Option.
In the UV1 toggle: Triplanar and World Triplanar.

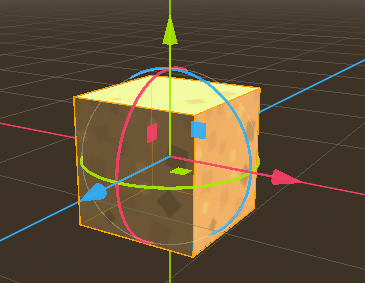

All done.

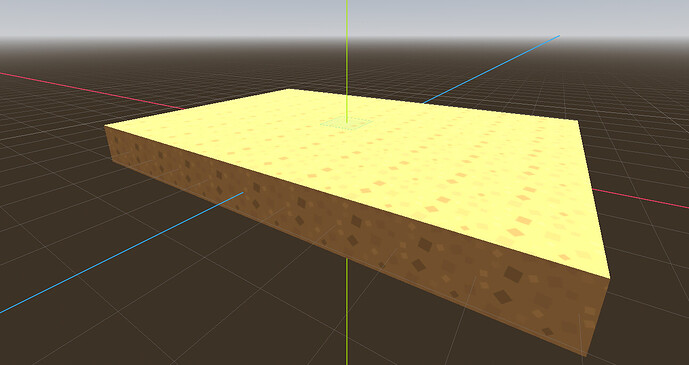

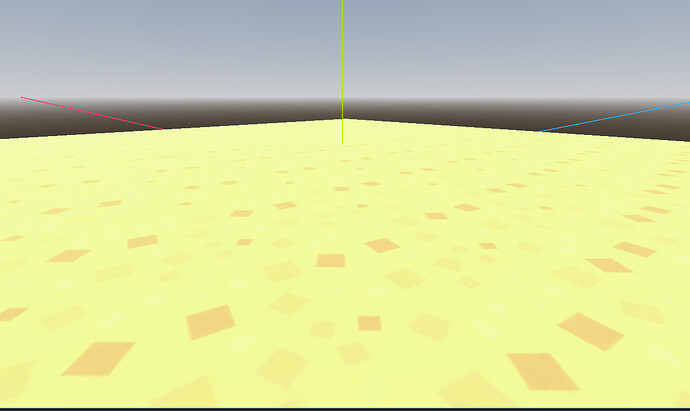

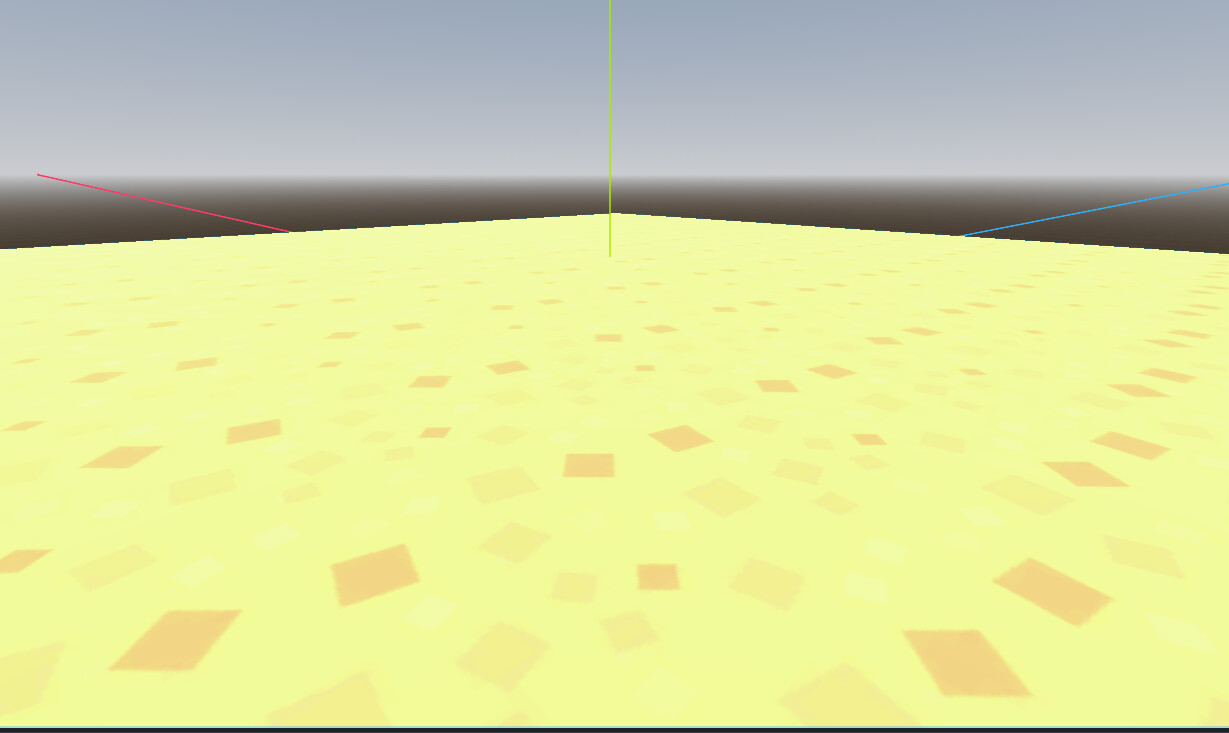

Test: Scaling StaticBody3D into a 3D platform

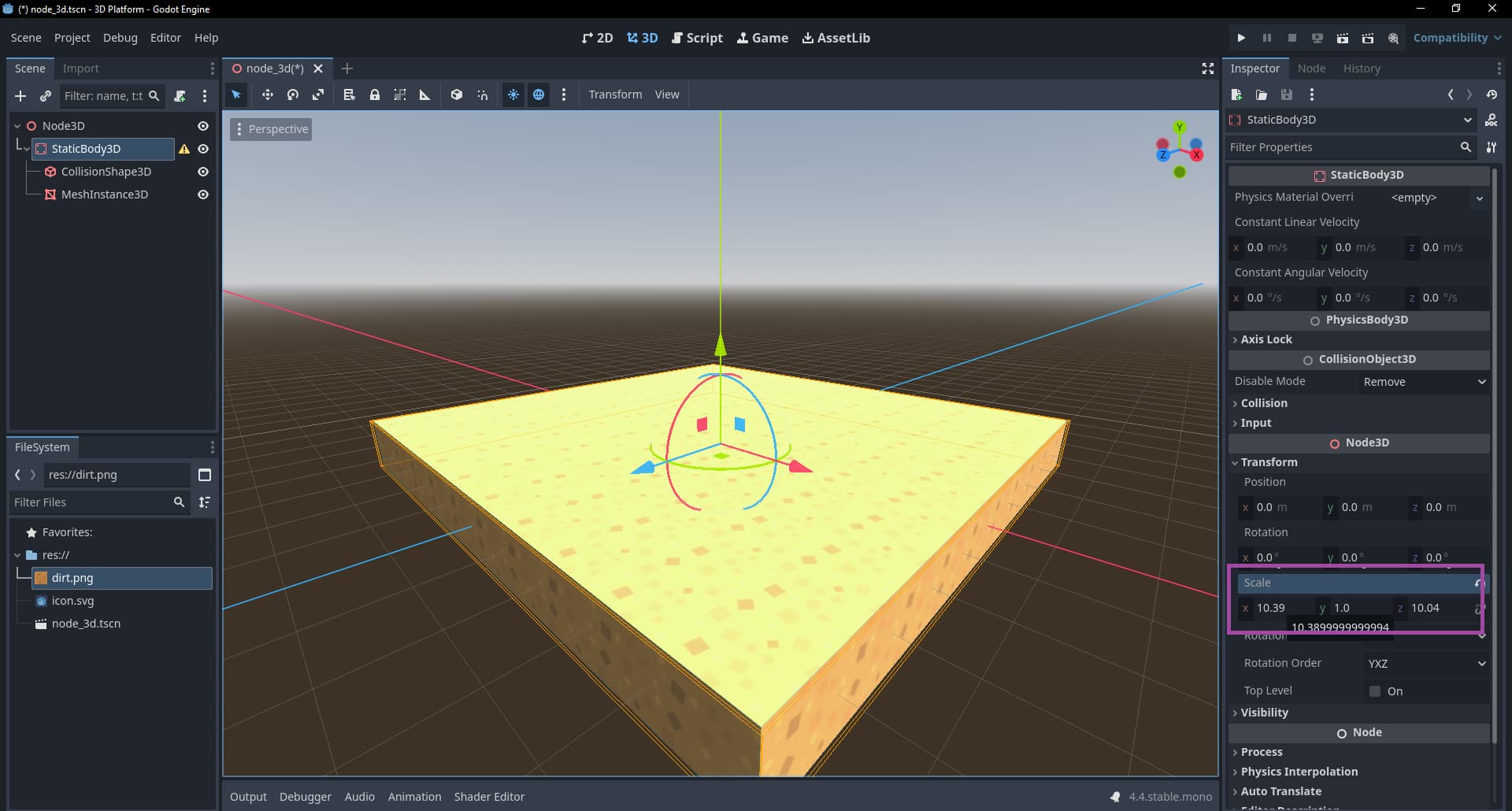

To test your seamless textured StaticBody3D, let’s apply some basic scale transformation.

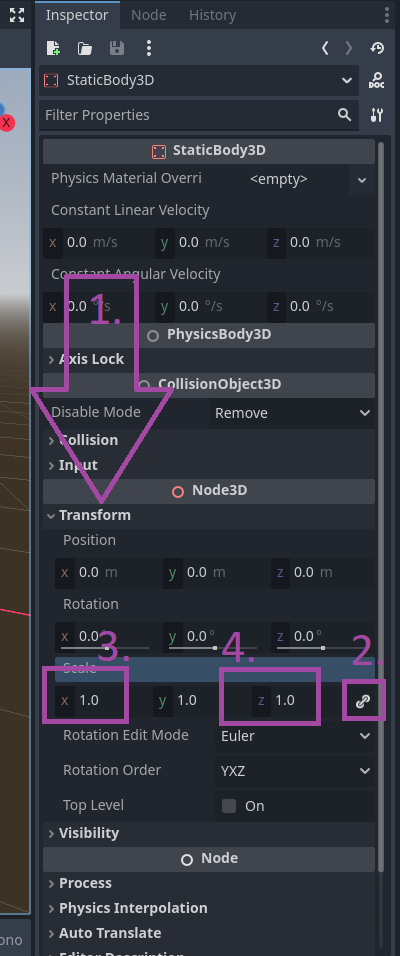

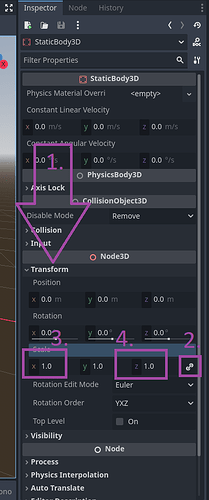

Let’s click on StaticBody3D and expand Transform Option.
Click on icon (2.) to stop uniform transformation and set X and Z values to higher.
