How to make a projectile follow a trajectory drawn with a mouse

Help
, ,
1

Godot Version

4.2.2

Question

Hi, I’m working on a mechanic where you can draw with a mouse a trajectory for a projectile to bypass obstacles created by enemies.

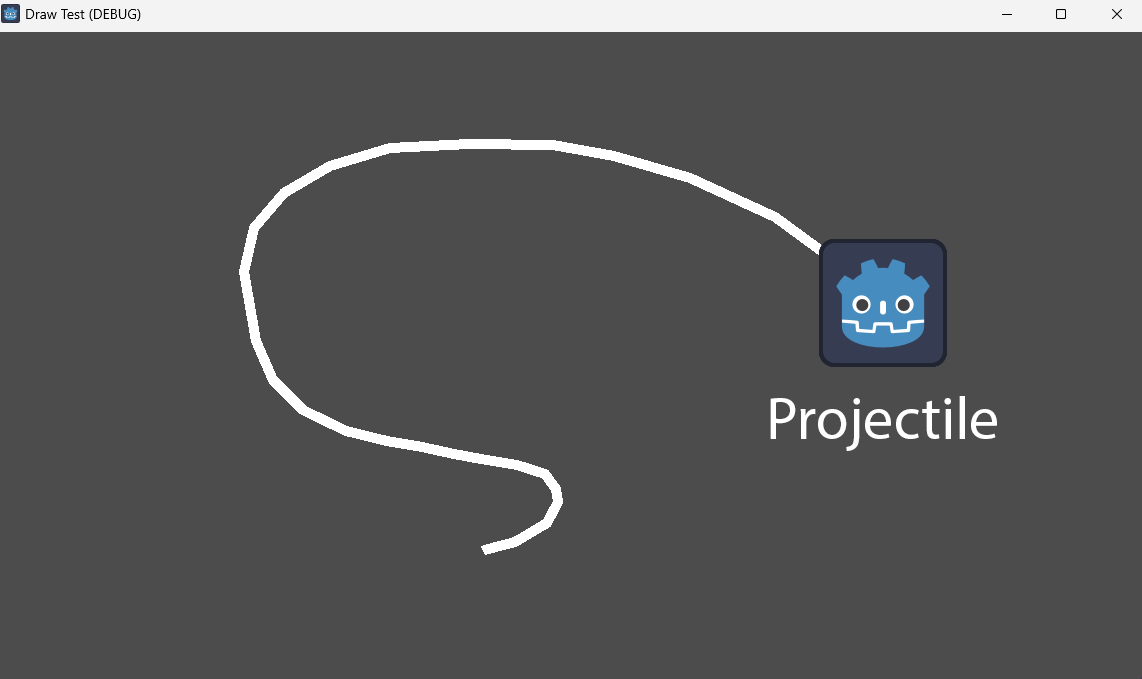

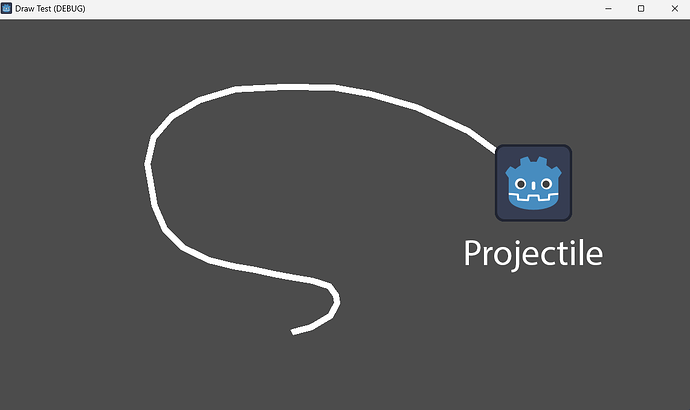

Untitled-1
Untitled-11142×679 13.1 KB

extends Line2D

var projectile = preload(“res://projectile.tscn”)
var array_pos: Array =
var count = 1

func _input(event):

if Input.is_action_pressed("path"):
	var mouse_pos = get_global_mouse_position()
	var instance = projectile.instantiate()

	add_child(instance)
	add_point(mouse_pos)

	array_pos.append(event.position)
	instance.position = array_pos[0]


if Input.is_action_just_pressed("launch"):
	for i in array_pos:
		pass

So basically I draw a line with Line2D and then store a set of coordinates in the array, but I don’t know how to make the sprite follow them.

2

A rudimentary way to do this is to use the lerp() function alongside await get_tree().create_timer(length).timeout to smoothly interpolate the projectile’s position. Something like:

var target_pos = Vector2(0, 0)
for i in array_pos:
    target_pos = array_pos[i]
    await get_tree().create_timer(1.0).timeout

And somewhere else in the code; probably in _physics_process(delta):

path_to_projectile.position = lerp(path_to_projectile.position, target_pos, 10 * delta)
