In what way can I scale a child of a container node?

[vallith]

Godot Version

4.3

Question

So I’m creating a sort of upgrade menu, that uses a HBoxContainer to hold instances of a “card” scene. The HBoxContainer has a script that instantiates multiple copies of the card as children to itself.
I would like an effect where when I mouse over the card, it gets a little bigger.

However, you can’t scale the children of a container node - so I am unsure what other means there are of achieving this. I’ve tried instantiating a copy of the card at a different location in the tree, but that gets messy and pretty gross really quick. You’ve got to deal with disabling the mouse entered/exited signals, passing the mouse input through, getting a great-grandparent-node directly by path, etc.

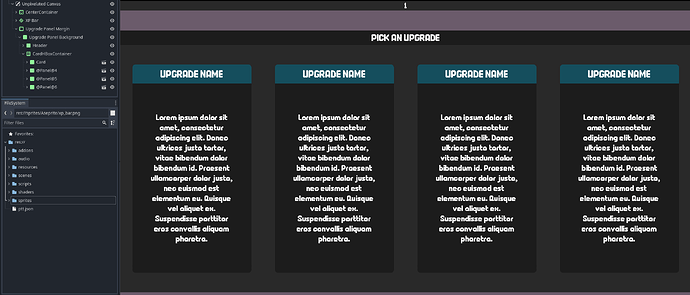

Here’s a screenshot of the hierarchy and how it visually looks as of right now:

Any help would be greatly appreciated, thanks for taking the time to read.

[Sweatix]

A common way this is done in interactive UI that uses CSS (or similar) is to use an inner container – just a nested container. By “container” I don’t mean an actual Container node; just a Control node that contains content. For example:

• Panel (root)
  • Panel (nested container)
    • …insert your design here

With this setup, you are free to adjust the styling of your card since the HBoxContainer is using the root of your card to control its size.

There’s a few extra settings you need to configure to get your effect to work properly though. For one, the pivot point of the inner container must be shifted to the center in order for the card to not scale to one side. However, you can’t set this directly in your layout since the card’s size – and thus the inner container’s – is modified by the HBoxContainer. Therefore, you have to center the pivot point at runtime; I didn’t find a way to position the pivot with percentages.

The other setting is configuring the nested container’s Layout Mode to Anchors and then setting the Anchors Preset to Full Rect to make it fill out the root. This will make it follow the size of the root.

Below is my attempt at a simple implementation.

extends Control

@export var center_pivot = true
var scale_tween: Tween

func _ready():
	# Connect signals
	mouse_entered.connect(_on_mouse_enter)
	mouse_exited.connect(_on_mouse_exit)

func _on_mouse_enter():
	# Clear current animation
	if scale_tween:
		scale_tween.kill()

	# Center the pivot
	if (center_pivot):
		pivot_offset = Vector2(size.x / 2, size.y / 2)

	scale_tween = create_tween()
	scale_tween.tween_property(self, "scale", Vector2.ONE * 1.02, 0.2)

func _on_mouse_exit():
	# Clear current animation
	if scale_tween:
		scale_tween.kill()

	# Center the pivot
	if (center_pivot):
		pivot_offset = Vector2(size.x / 2, size.y / 2)

	scale_tween = create_tween()
	scale_tween.tween_property(self, "scale", Vector2.ONE, 0.1)

The script above is placed on the inner container.

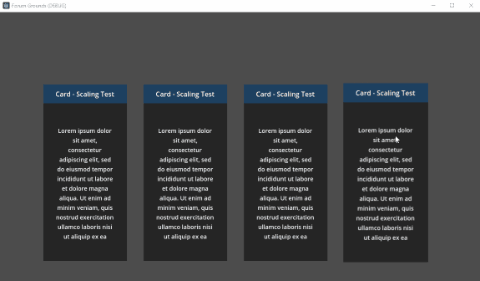

The scene setup for the implementation – and the scene at runtime.

[vallith]

Thank you so much for such an in-depth reply! This is exactly what I was looking for. Thank you again for going above and beyond to help.
