Invisible UI elements grab focus

Help UI
1

Godot Version

Godot 4.2.2.stable

Question

I love the control nodes workflow. I love designing UIs in Godot, there’s just this one thing that’s been bugging me across multiple project and now I feel like there must be a way of doing this.

image992×923 118 KB

See this UI? The button “Minigun” has hover and focus, when pressing the arrow down, a UI element that’s visible but drawn underneath this UI layer get’s focused instead of a button below it.

I’ve always tackled this by crafting for-loops that assign strict focus neighbors, am I missing something? Is there a way make sure that elements not visible on screen at the moment don’t get selected? Does the z-index affect this at all?

Cheers!

2

I didn’t try it, but when hiding your UI element maybe also set its focus_mode to None and/or the mouse_filter to Ignore.

3

The thing is that I don’t want to hide, the element is ‘hidden’ because it is behind other elements, hence not visible on screen. It is visible in the scene tree but on on screen.

4

You probably need to ensure this is set correctly based on your intended behavior

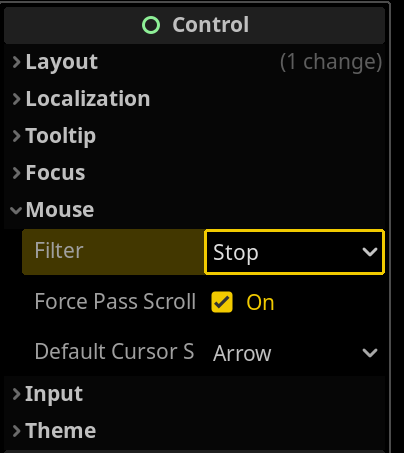

Screenshot 2024-06-04 101048

5

Mouse filter is set correctly I’m certain, however I am talking about the focus that occurs as a result of arrow keys, not mouse (one element focused, arrows keys pressed in either direction, when the engine decides what the next item is depending on its position on screen)

6

Can you post a screenshot of your scene tree? :thinking: Most importantly: What are the parent (UI) nodes of the “Minigun” button, and where is the UI element that gets selected located relatively to it?
