Matching UI margin of a EditorPlugin dock to the default Editor dock margin

[MiguelRSGoncalves]

Godot Version

v4.4.1

Question

Hello hello, I am creating a EditorPlugin and I’m working on the UI. I wanted to match the margin of my plugin’s dock to the default Godot margin on the editor’s dock so it look nice and clean. However, there is a wierd margin that is just slightly bigger than the normal one and I’m not being able to find where the issue comes from. I will delineate the margin with red in some parts to show better the issue.

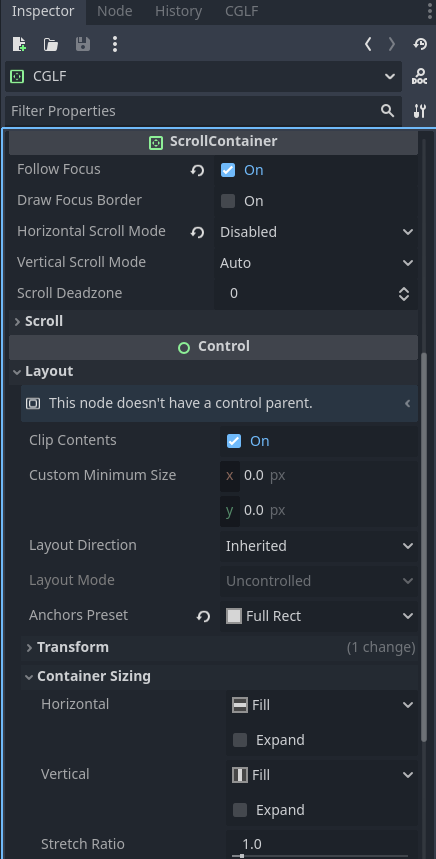

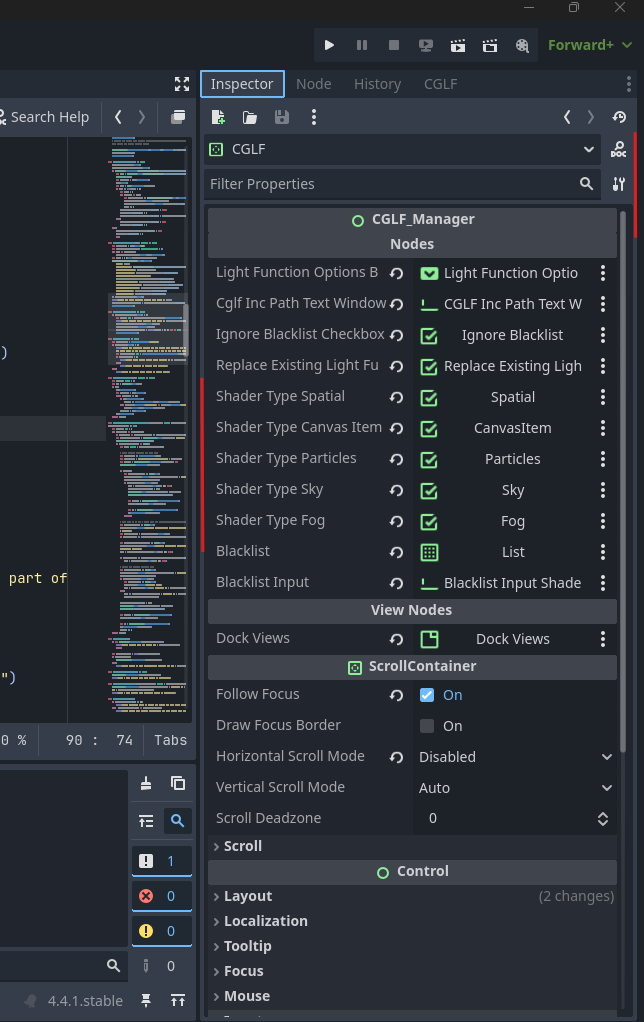

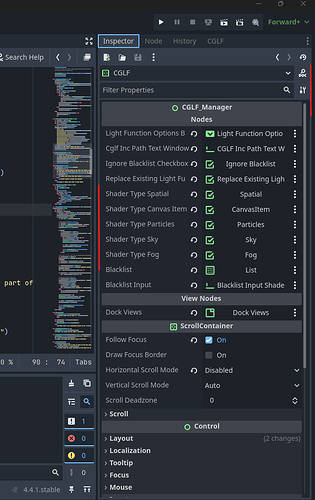

Normal dock margin

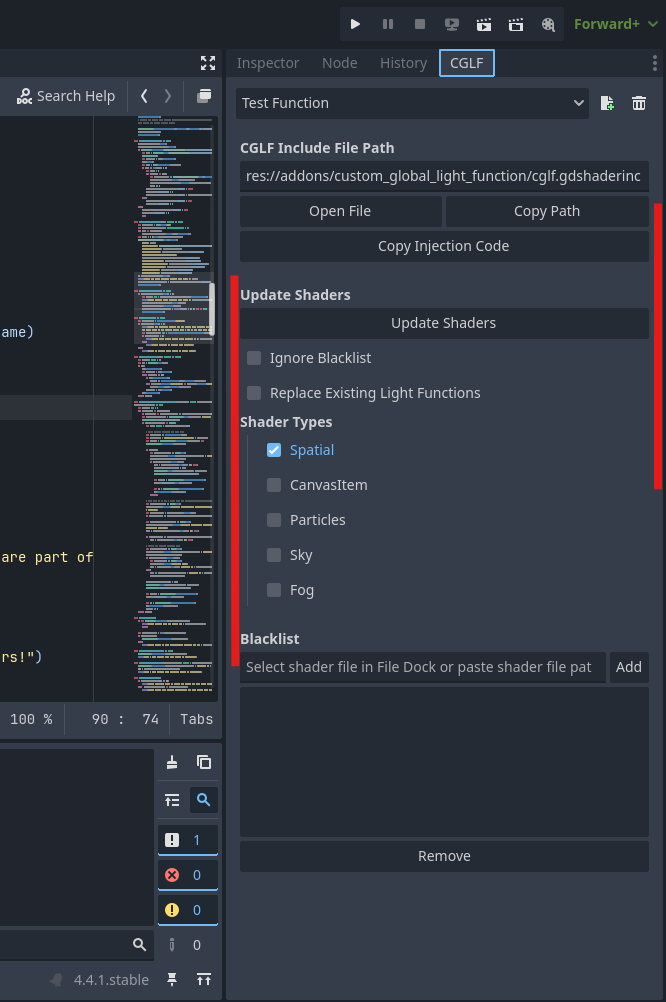

My plugin’s margin

[mrcdk]

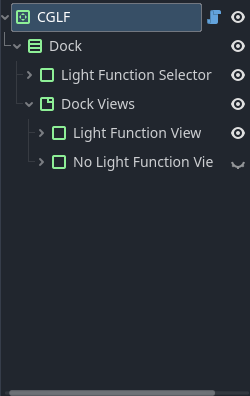

The PanelContainer.panel StyleBox has some content margins applied in the editor theme. You are probably seeing those margins in the different PanelContainers your scene has.

A possible fix is to override their panel StyleBox with a StyleBoxEmpty or do it in a Theme

[MiguelRSGoncalves]

That was exactly the answer. Had to change the style of all PanelContainers.panel to not have the margin and now it works. Thank you
