Moving Camera With Mouse

Godot Version 4

Question

I am following the FPS game in godot tutorial by stayathomedev. I Almost finished the first video but once I had typed the code to be able to move the camera with my mouse, it never worked. There are no errors in my code, but I cant move the camera with the code that was provided in the tutorial. Timestamp: video 1 "Make An FPS in Godot 4, 10:00 / 13:25
My following Code

extends CharacterBody3D


const SPEED = 5.0
const JUMP_VELOCITY = 4.5


func _physics_process(delta: float) -> void:
	# Add the gravity.
	if not is_on_floor():
		velocity += get_gravity() * delta

	# Handle jump.
	if Input.is_action_just_pressed("ui_accept") and is_on_floor():
		velocity.y = JUMP_VELOCITY

	# Get the input direction and handle the movement/deceleration.
	# As good practice, you should replace UI actions with custom gameplay actions.
	var input_dir := Input.get_vector("move_left", "move_right", "move_forward", "move_backward")
	var direction := (transform.basis * Vector3(input_dir.x, 0, input_dir.y)).normalized()
	if direction:
		velocity.x = direction.x * SPEED
		velocity.z = direction.z * SPEED
	else:
		velocity.x = move_toward(velocity.x, 0, SPEED)
		velocity.z = move_toward(velocity.z, 0, SPEED)

	move_and_slide()

func _input(event):
	if event.is_action_pressed("exit"):
		get_tree().quit()

func _ready():
	Input.mouse_mode = Input.MOUSE_MODE_CAPTURED

var _mouse_input : bool = false
var _mouse_rotation : Vector3
var _rotation_input : float
var _tilt_input : float
var _player_rotation : Vector3
var _camera_rotation : Vector3


func _unhandled_input(event):
	_mouse_input = event is InputEventMouseMotion and Input.get_mouse_mode() == Input.MOUSE_MODE_CAPTURED
	if _mouse_input :
		_rotation_input = -event.relative.x * MOUSE_SENSITIVITY
		_tilt_input = -event.relative.y * MOUSE_SENSITIVITY
		print(Vector2(_rotation_input,_tilt_input))

@export var TILT_LOWER_LIMIT := deg_to_rad(-90.0)
@export var TILT_UPPER_LIMIT := deg_to_rad(90.0)
@export var CAMERA_CONTROLLER : Camera3D
@export var MOUSE_SENSITIVITY : float = 0.5




func _update_camera(delta):

	_mouse_rotation.x += _tilt_input * delta
	_mouse_rotation.x = clamp(_mouse_rotation.x, TILT_UPPER_LIMIT, TILT_UPPER_LIMIT)
	_mouse_rotation.y += _rotation_input * delta

	_player_rotation = Vector3(0.0,_mouse_rotation.y,0.0)
	_camera_rotation = Vector3(_mouse_rotation.x,0.0,0.0)

	CAMERA_CONTROLLER.transform.basis = Basis.from_euler(_camera_rotation)
	CAMERA_CONTROLLER.rotation.z = 0.0

	global_transform.basis = Basis.from_euler(_player_rotation)

	_rotation_input = 0.0
	_tilt_input = 0.0

	_update_camera(delta)









You should remove this line from _update_camera() (the last line) and put that line in your _physics_process() .

what do you mean?
could you maybe type the code that you are suggesting there? I’m new, this is the first game that I am making so I don’t really understand.

This way:

extends CharacterBody3D


const SPEED = 5.0
const JUMP_VELOCITY = 4.5


func _physics_process(delta: float) -> void:
	_update_camera(delta)

	# Add the gravity.
	if not is_on_floor():
		velocity += get_gravity() * delta

	# Handle jump.
	if Input.is_action_just_pressed("ui_accept") and is_on_floor():
		velocity.y = JUMP_VELOCITY

	# Get the input direction and handle the movement/deceleration.
	# As good practice, you should replace UI actions with custom gameplay actions.
	var input_dir := Input.get_vector("move_left", "move_right", "move_forward", "move_backward")
	var direction := (transform.basis * Vector3(input_dir.x, 0, input_dir.y)).normalized()
	if direction:
		velocity.x = direction.x * SPEED
		velocity.z = direction.z * SPEED
	else:
		velocity.x = move_toward(velocity.x, 0, SPEED)
		velocity.z = move_toward(velocity.z, 0, SPEED)

	move_and_slide()

func _input(event):
	if event.is_action_pressed("exit"):
		get_tree().quit()

func _ready():
	Input.mouse_mode = Input.MOUSE_MODE_CAPTURED

var _mouse_input : bool = false
var _mouse_rotation : Vector3
var _rotation_input : float
var _tilt_input : float
var _player_rotation : Vector3
var _camera_rotation : Vector3


func _unhandled_input(event):
	_mouse_input = event is InputEventMouseMotion and Input.get_mouse_mode() == Input.MOUSE_MODE_CAPTURED
	if _mouse_input :
		_rotation_input = -event.relative.x * MOUSE_SENSITIVITY
		_tilt_input = -event.relative.y * MOUSE_SENSITIVITY
		print(Vector2(_rotation_input,_tilt_input))

@export var TILT_LOWER_LIMIT := deg_to_rad(-90.0)
@export var TILT_UPPER_LIMIT := deg_to_rad(90.0)
@export var CAMERA_CONTROLLER : Camera3D
@export var MOUSE_SENSITIVITY : float = 0.5




func _update_camera(delta):

	_mouse_rotation.x += _tilt_input * delta
	_mouse_rotation.x = clamp(_mouse_rotation.x, TILT_UPPER_LIMIT, TILT_UPPER_LIMIT)
	_mouse_rotation.y += _rotation_input * delta

	_player_rotation = Vector3(0.0,_mouse_rotation.y,0.0)
	_camera_rotation = Vector3(_mouse_rotation.x,0.0,0.0)

	CAMERA_CONTROLLER.transform.basis = Basis.from_euler(_camera_rotation)
	CAMERA_CONTROLLER.rotation.z = 0.0

	global_transform.basis = Basis.from_euler(_player_rotation)

	_rotation_input = 0.0
	_tilt_input = 0.0


Thank you, but it wont let me run it because line 71 has " Invalid access to property or key ‘transform’ on a base object of type ‘Nil’."
line 71 is:

	CAMERA_CONTROLLER.transform.basis = Basis.from_euler(_camera_rotation)

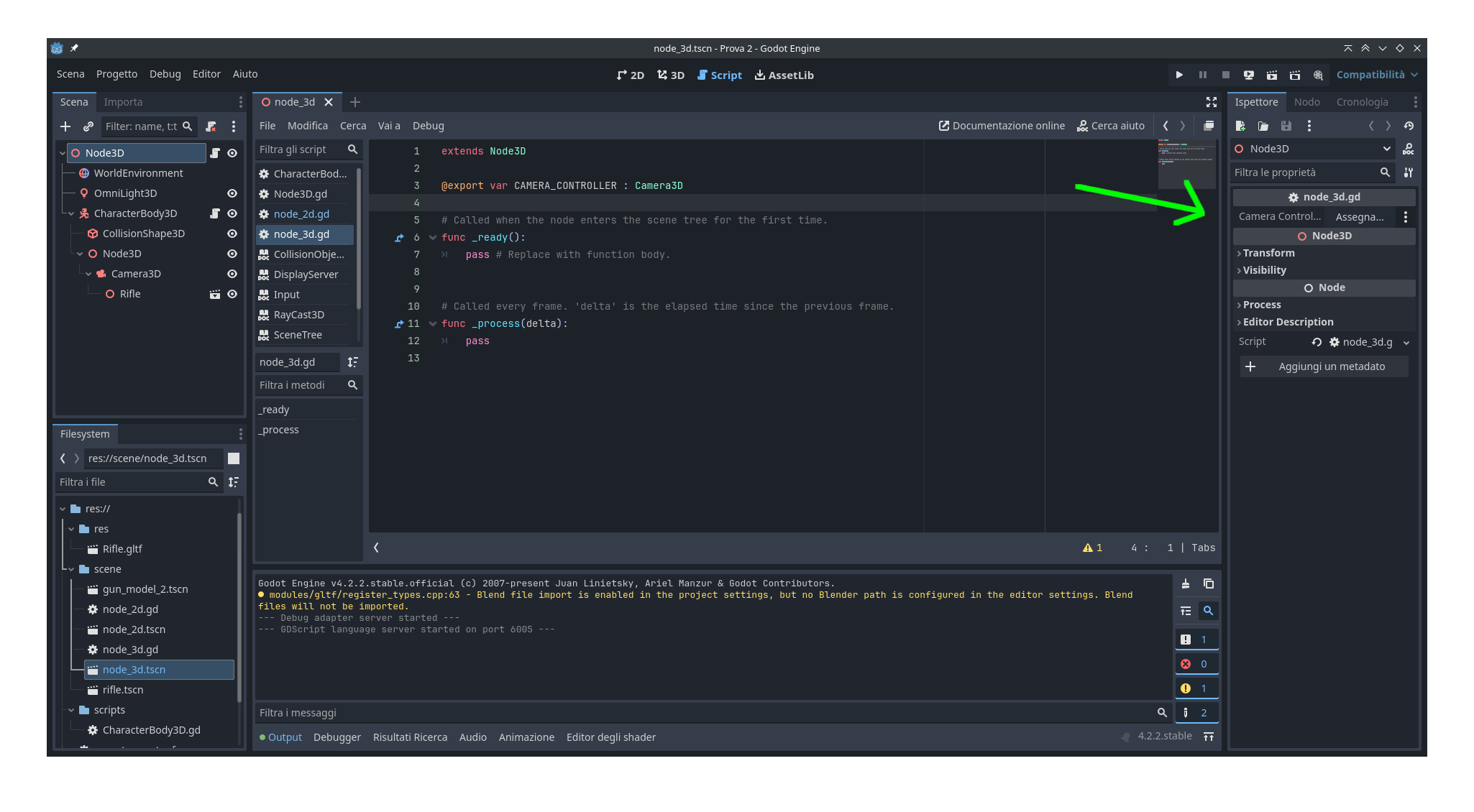

In the editor, you can see a “Camera Controller” option which you can assign the camera. You need to assign a camera to it.


Every “@export” line will finish there.

I don’t see an option in the editor menu on the right?

You need to click on “Player” node (or the node that has the script attached to).

Oh, yeah I assigned it, when I click the “test” button I can move the camera and see the sun. But I don’t see my objects, and yes I did give them collision shapes.

That’s strange. Normally, if you can’t see the models (floor, box and ramp) there could be two reasons:

  • The camera is pointing to the wrong direction.
  • A material is not set (is empty).

Ok, I will try to troubleshoot it :grinning:
thank you for helping me!
