Texture scale, blending

[iOSxcOder]

Godot Version

4.5.1 Stable Mac OS

Question

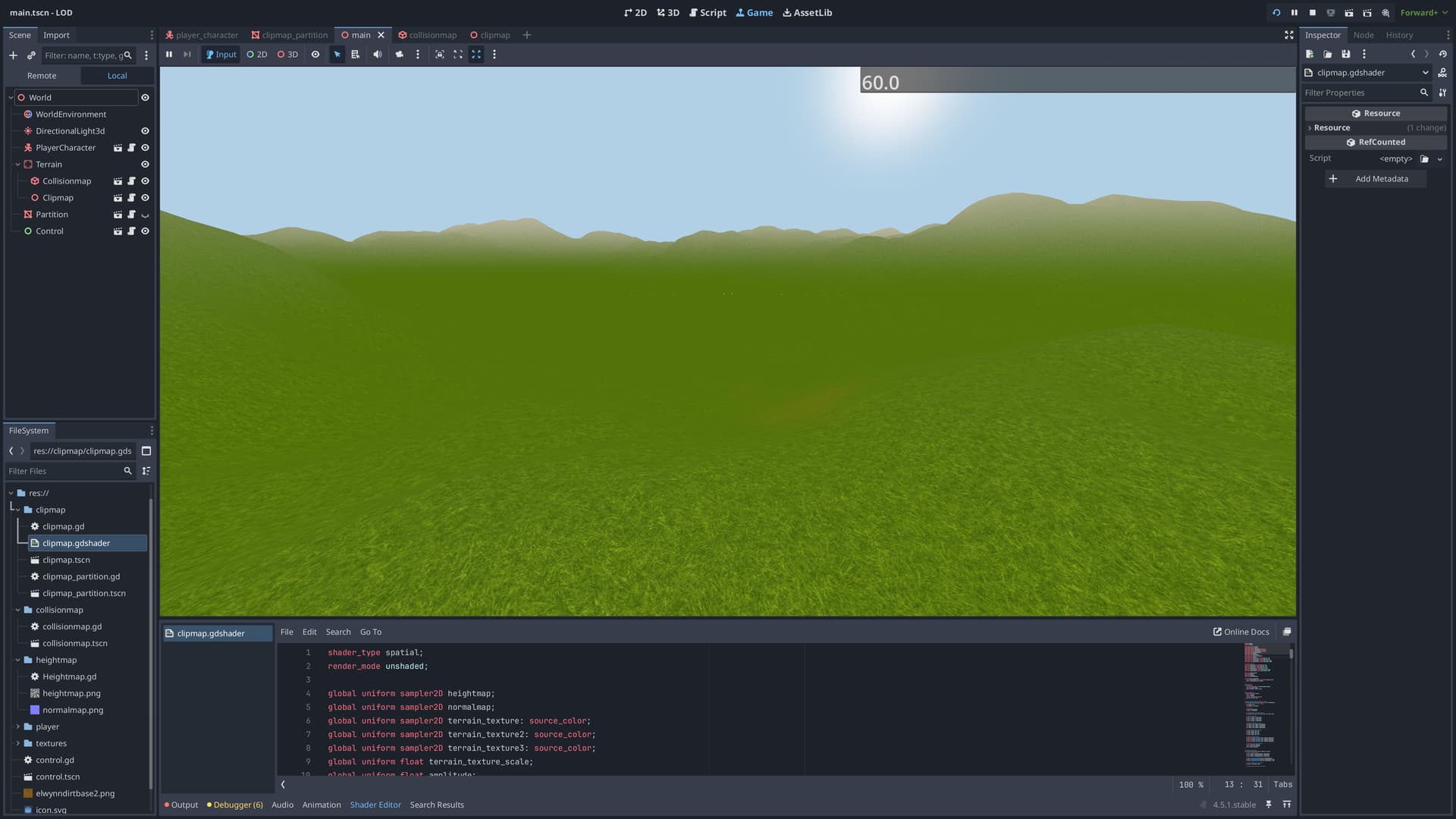

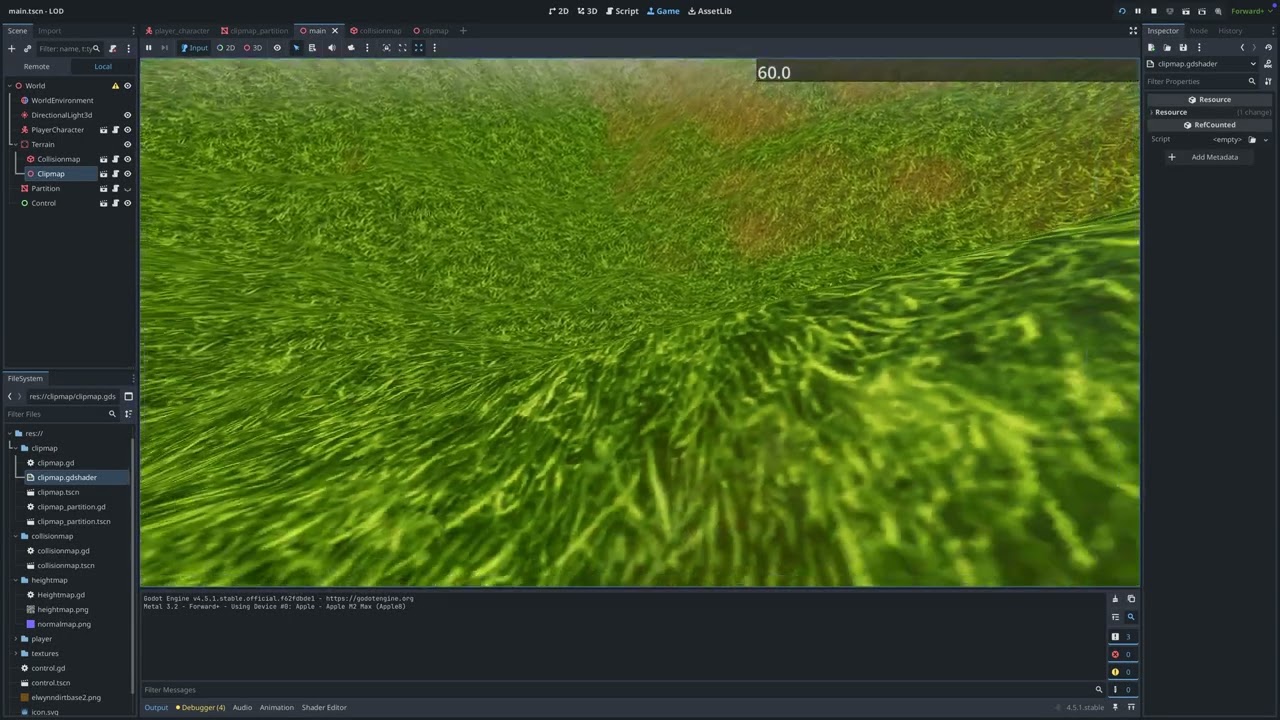

texture scale

What do you guys thing how should I approach scale of three or more textures to make it looks good and also not so repetitive ?

Current shading code

shader_type spatial;
render_mode unshaded;

global uniform sampler2D heightmap;
global uniform sampler2D normalmap;
global uniform sampler2D terrain_texture: source_color;
global uniform sampler2D terrain_texture2: source_color;
global uniform sampler2D terrain_texture3: source_color;
global uniform float terrain_texture_scale;
global uniform float amplitude;
global uniform vec3 clipmap_position;
global uniform float clipmap_partition_length;
global uniform float lod_step;
global uniform float slope_blend_max : hint_range(0.0, 1.0) = 0.8;
global uniform float slope_blend_min : hint_range(0.0, 1.0) = 0.5;
global uniform float height_blend_min : hint_range(0.0, 500.0) = 150.0;
global uniform float height_blend_max : hint_range(0.0, 500.0) = 200.0;

varying vec2 normalmap_position;
varying vec2 texture_uv;
varying float world_height;

float get_height(vec3 world_vertex) {
	vec2 uv = (world_vertex.xz + 0.5) / float(textureSize(heightmap, 0).x);
	return texture(heightmap, uv).r * amplitude;
}

void vertex() {
	vec3 world_vertex = (MODEL_MATRIX * vec4(VERTEX, 1.0)).xyz;
	normalmap_position = (world_vertex.xz + 0.5) / float(textureSize(heightmap, 0).x);
	texture_uv = world_vertex.xz * terrain_texture_scale;
	vec3 offset_from_center = world_vertex - clipmap_position;
	float partition_x = floor(offset_from_center.x / clipmap_partition_length + 0.5);
	float partition_z = floor(offset_from_center.z / clipmap_partition_length + 0.5);
	float distance_from_center = max(abs(partition_x), abs(partition_z));
	float my_lod = floor(distance_from_center / max(lod_step, 1.0));
	float my_grid_size = pow(2.0, my_lod);
	vec3 partition_center = vec3(partition_x, 0.0, partition_z) * clipmap_partition_length + clipmap_position;
	float half_partition = clipmap_partition_length * 0.5;
	float edge_epsilon = 0.01;
	bool on_min_x_edge = abs(world_vertex.x - (partition_center.x - half_partition)) < edge_epsilon;
	bool on_max_x_edge = abs(world_vertex.x - (partition_center.x + half_partition)) < edge_epsilon;
	bool on_min_z_edge = abs(world_vertex.z - (partition_center.z - half_partition)) < edge_epsilon;
	bool on_max_z_edge = abs(world_vertex.z - (partition_center.z + half_partition)) < edge_epsilon;

	vec3 final_position = world_vertex;

	if (on_min_x_edge || on_max_x_edge || on_min_z_edge || on_max_z_edge) {
		float neighbor_x = partition_x;
		float neighbor_z = partition_z;
		if (on_min_x_edge) neighbor_x -= 1.0;
		else if (on_max_x_edge) neighbor_x += 1.0;
		if (on_min_z_edge) neighbor_z -= 1.0;
		else if (on_max_z_edge) neighbor_z += 1.0;
		float neighbor_distance = max(abs(neighbor_x), abs(neighbor_z));
		float neighbor_lod = floor(neighbor_distance / max(lod_step, 1.0));
		float neighbor_grid_size = pow(2.0, neighbor_lod);
		if (neighbor_grid_size > my_grid_size) {
			if (on_min_x_edge || on_max_x_edge) {
				final_position.z = round(world_vertex.z / neighbor_grid_size) * neighbor_grid_size;
			}
			if (on_min_z_edge || on_max_z_edge) {
				final_position.x = round(world_vertex.x / neighbor_grid_size) * neighbor_grid_size;
			}

		}
	}
	VERTEX.y = get_height(final_position);
	world_height = VERTEX.y;
}

void fragment() {
	vec3 terrain_color1 = texture(terrain_texture, texture_uv).rgb;
	vec3 terrain_color2 = texture(terrain_texture2, texture_uv).rgb;
	vec3 terrain_color3 = texture(terrain_texture3, texture_uv).rgb;
	vec3 nrm = texture(normalmap, normalmap_position).rgb * 2.0 - 1.0;
	NORMAL = normalize(nrm);
	float slope = dot(NORMAL, vec3(0.0, 1.0, 0.0));
	float slope_blend_factor = smoothstep(slope_blend_max, slope_blend_min, slope);
	vec3 slope_terrain_color = mix(terrain_color1, terrain_color2, slope_blend_factor);
	float height_blend_factor = smoothstep(height_blend_min, height_blend_max, world_height);
	vec3 final_color = mix(slope_terrain_color, terrain_color3, height_blend_factor);
	ALBEDO = final_color;
	//ALBEDO = vec3(dot(NORMAL, vec3(0.0, 1.0, 0.0))); // Debug White/Black
}

[normalized]

Fade the detail texture with distance.

[iOSxcOder]

Do you mind to elaborate on what you mean with code ? @normalized

[normalized]

Let the high frequency texture blending factor diminish with distance from camera.

Btw I don’t understand what you’re doing in that vertex shader code (and the weird code formatting style doesn’t help either). Looks like too much code for displacement. Also if you’re creating colliders on the cpu side why still do shader displacement?

[iOSxcOder]

Collider is only done on active position of player at current clip so it do less job on cpu .

[iOSxcOder]

Good point , I’ll try make it cleaner if you have some sample code I’ll take advice

[normalized]

How do you swap lod meshes?

[iOSxcOder]

Using check for neighbour seam , but yes it’s messy code .

Do you have some recommendations for tutorial or cleaner example code ?

[normalized]

You’ll need to describe in detail what exactly you want to do.

I don’t have any code. I can only help you with advice.

[iOSxcOder]

Will need to sit down properly to it with break it down .

Goal is have nice looking terrain maximising usage of GPU where CPU will handle only small section of with duplicated clip_particle as convex collision shape .

At least three textures blending based on their height and slop .

For heights faces texture 3 , slope blend texture 2 and 3 at higher half of slope , lower half of slope blend of texture 2 and 1 with gradient , flat faces texture 1 .

I’ll sit down to at evening and break it down

[iOSxcOder]

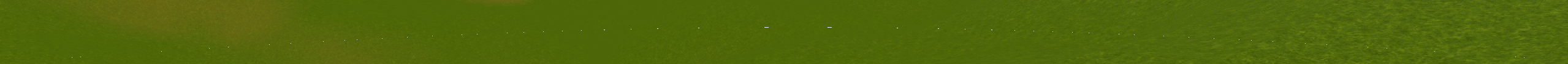

@normalized So result getting better but it still not perfect as its have some gaps in certain angles

I used help of Claude to comment it and make some sense of it , lot of inspiration came from this repository : GitHub - TheGodojo/Massive-Terrain-LOD-And-Stitching-COMPLETE

My current project state is here :

GitHub - xcoderioslearn/Generating-Terrain

As you see it’s not ideal , but slowly I getting closer to vision .

Goal is keep random orientation and stochastic scaling instead of camera distance as it looks more natural without making row of textures .

Next goal would be placing a building , making drawn path , rivers, adding bridges , buildings etc. with multiple height map preset for different biomes to make variations and randomness at same time .
